2.5 Sensors and actuators – Overview

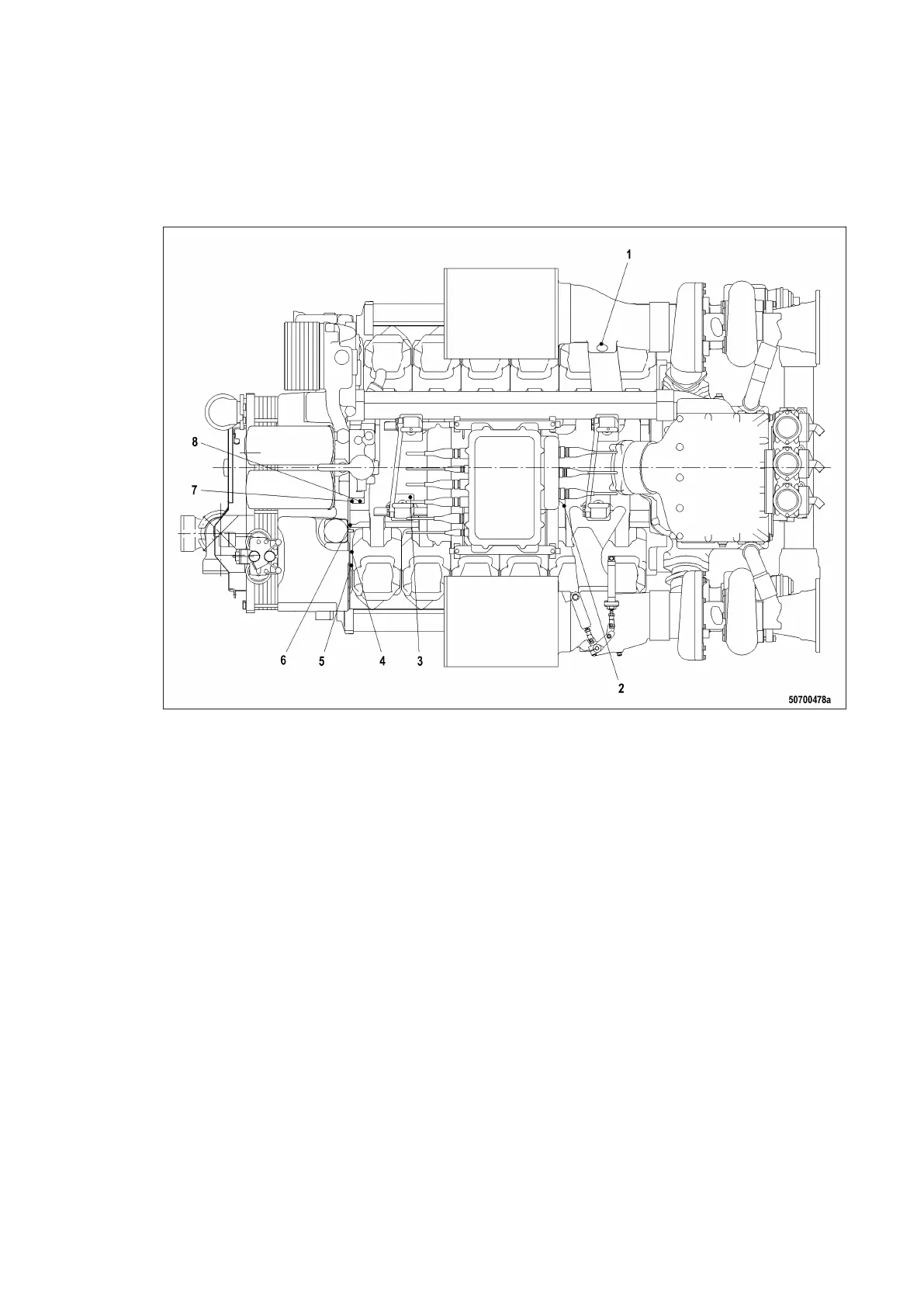

Top view 12V 2000 M
1 B03 (intake air temperature)
2 B10 (charge-air pressure)
3 B09 (charge-air tempera-
ture)
4 B5.2 (lube oil pressure)
5 F25 (lube-oil pressure differ-
ence over filter)
6 B34 (fuel pressure after fil-
ter)
7 B07 (lube oil temperature)
8 B05 (lube oil pressure)
32 | General Information | MS150031/06E 2016-010
