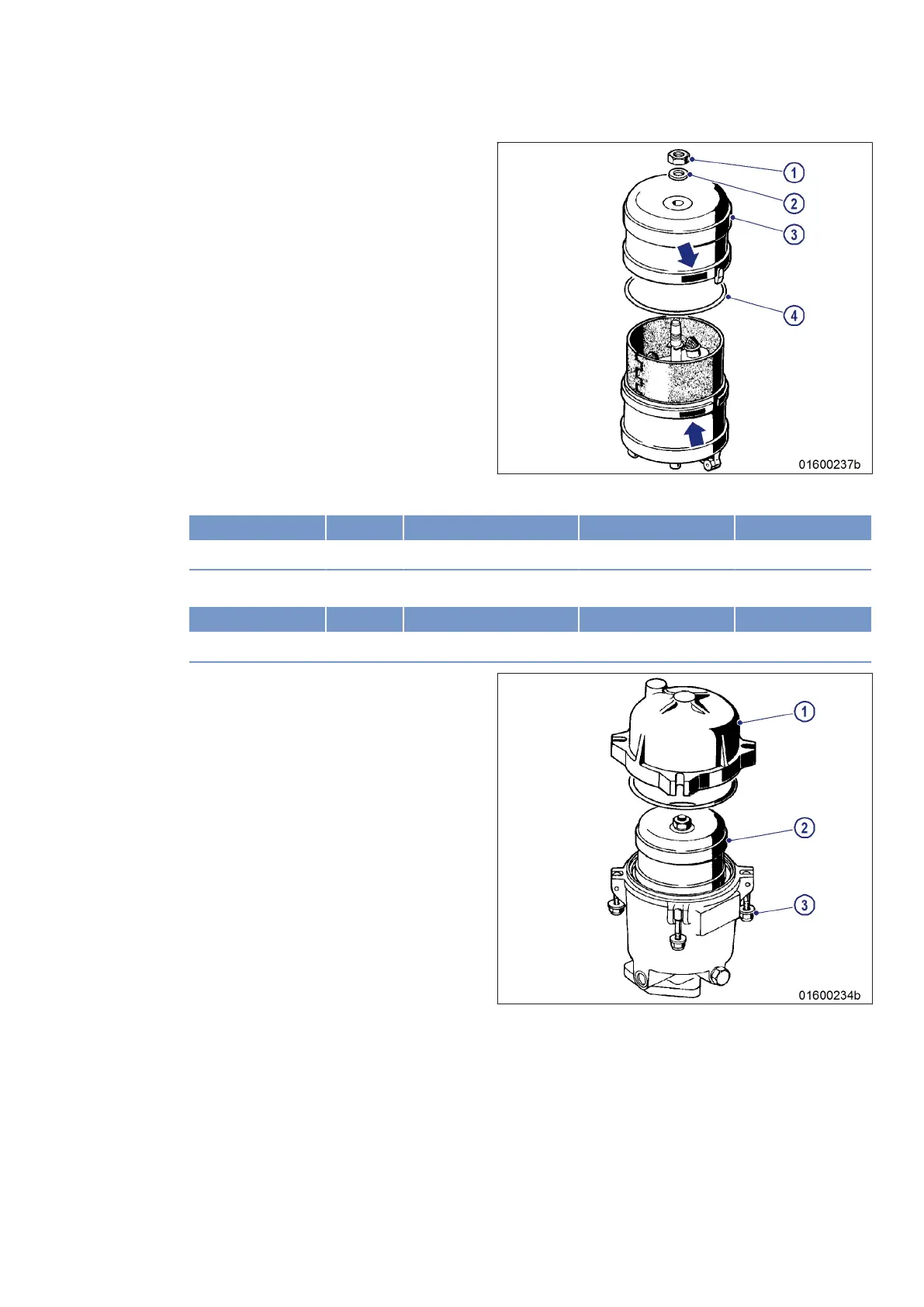

9. Fit new O-ring (4).
10. Set on rotor cap (3), observe marks.
11. Fit washer (2).
12. Hold rotor (new design) with oil filter wrench and tighten nut (1) to specified torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Nut M18 x 1.5 Tightening torque 10 Nm
13. Hold rotor (old design) with oil filter wrench and tighten nut (1) to specified torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Nut M16 x 1.5 Tightening torque 40 Nm to 50 Nm
14. Insert complete rotor (2) into the housing and
check for ease-of-movement.
15. Set housing cover (1) with new O-ring onto
lower section, observe marks.
16. Tighten nuts (3) crosswise and evenly.
