MTU 8V2000M40A - Page 204

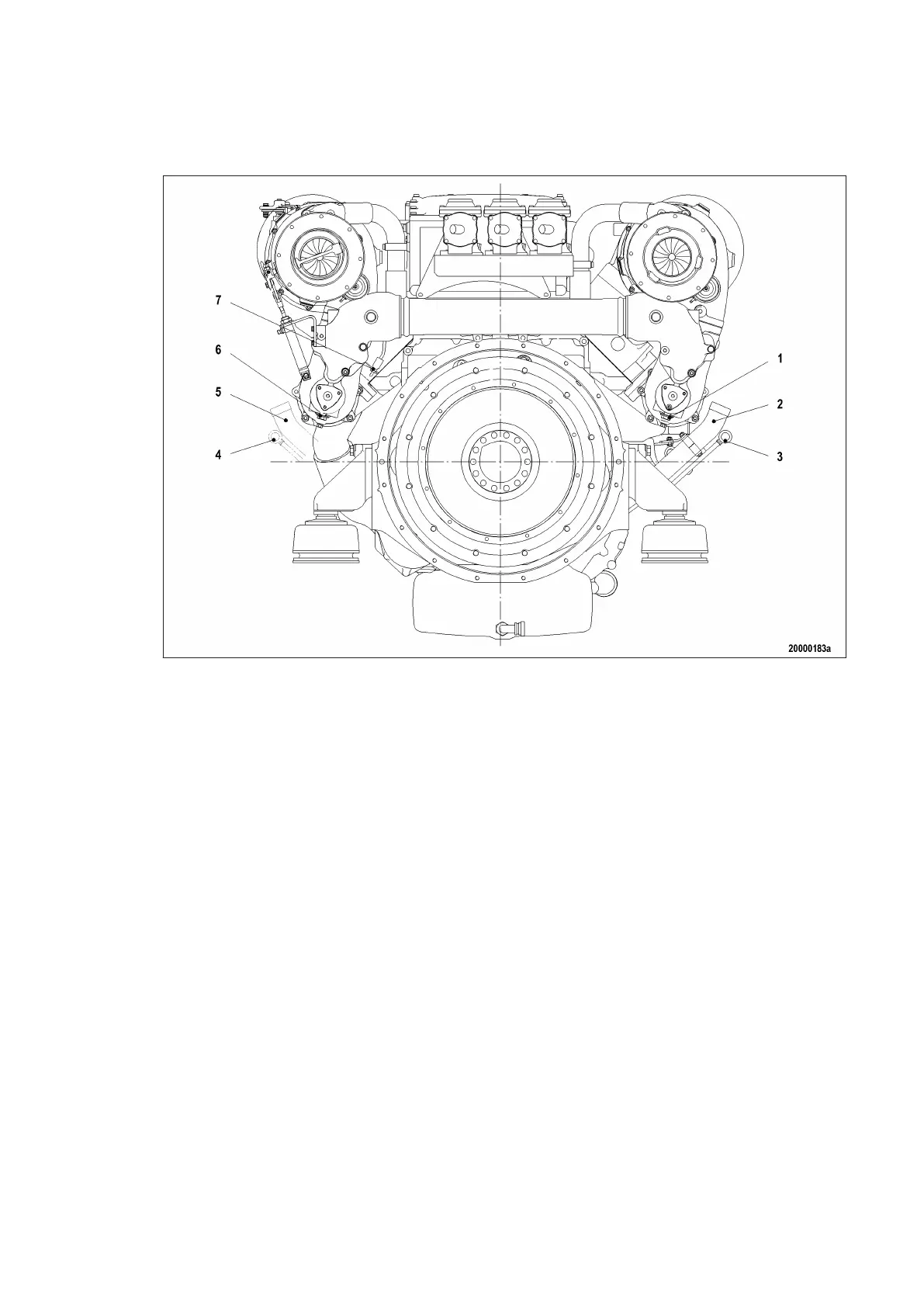

Driving end (KS)
1 Engine coolant drain plug
2 Oil filler neck (connection
left or right engine side op-
tional)
3 Oil dipstick (connection left
or right engine side option-
al)
4 Oil dipstick (connection left
or right engine side option-
al)
5 Oil filler neck (connection
left or right engine side op-
tional)
6 Engine coolant drain plug
7 Fuel vent
204 | Coolant Circuit, General, High-Temperature Circuit | MS150031/06E 2016-010
TIM-ID: 0000006697 - 003
