5-Input Connections
11
5. Input Connections
5.1 Input Connections
5.1.1 Input connections
See the following Figure 2:

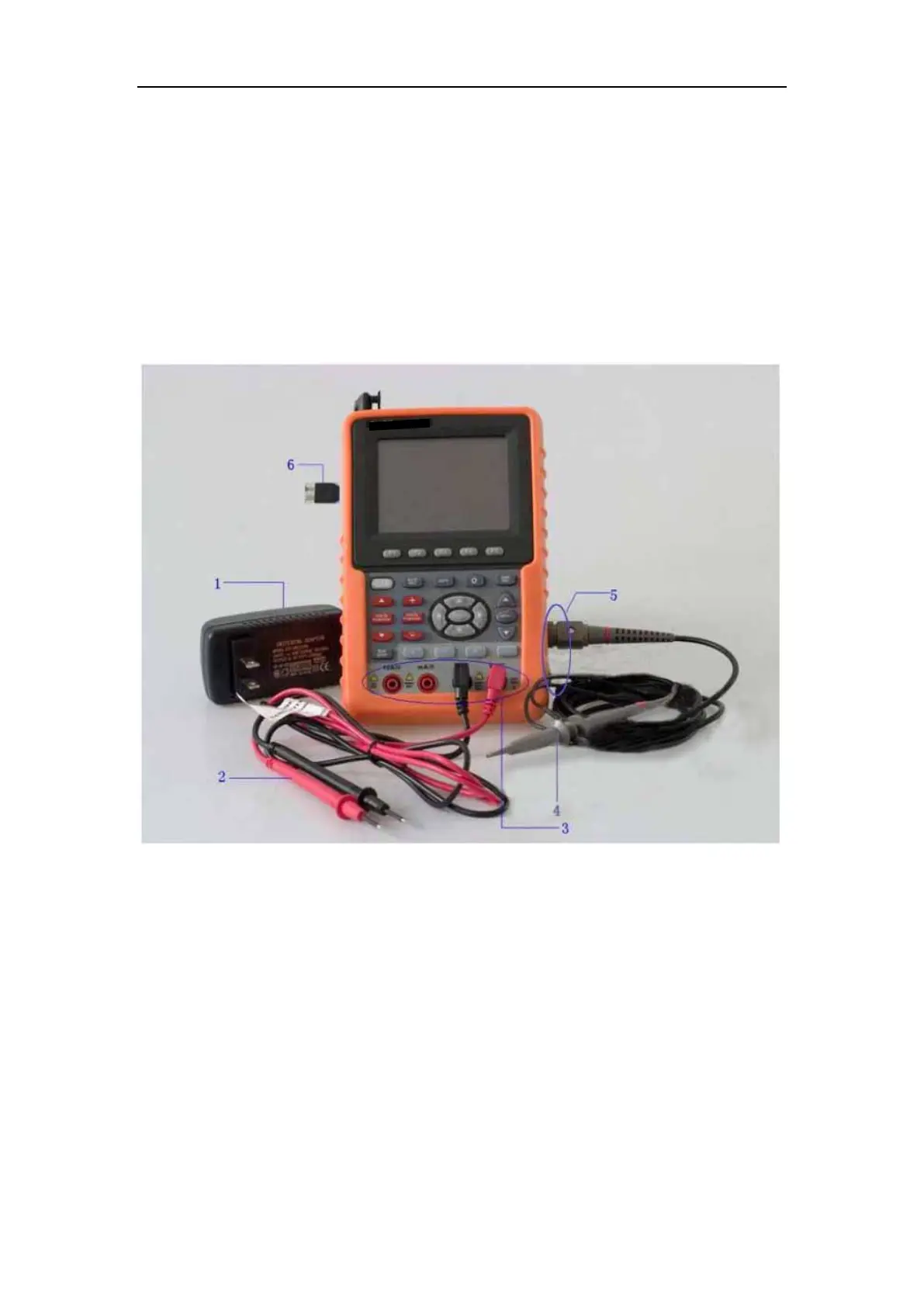

Figure 2：Input connections
Description:
1. The power adapter is supplied for AC power supply and battery recharging.
2. Multimeter test lead.
3. Multimeter input jacks, including four circular banana jacks. The first jack measuring the
current 2A-10A, the second jack on the current Measurement, the third COM ground input
,
a
nd the fourth measuring voltage, resistance, Capacitance input.
4. Oscilloscope probe.
5. Oscilloscope channel input.
6.
The output terminal of 1kHz/5V square-wave test signal.
