8-Advanced Function of Oscilloscope
To display the saved waveform on the screen, do the following:
5. Press the F3 key to select ON for the address A. The waveform saved in address A will be
displayed on the screen in green colour and the zero point of waveform, Vamp and Freq is
purple.

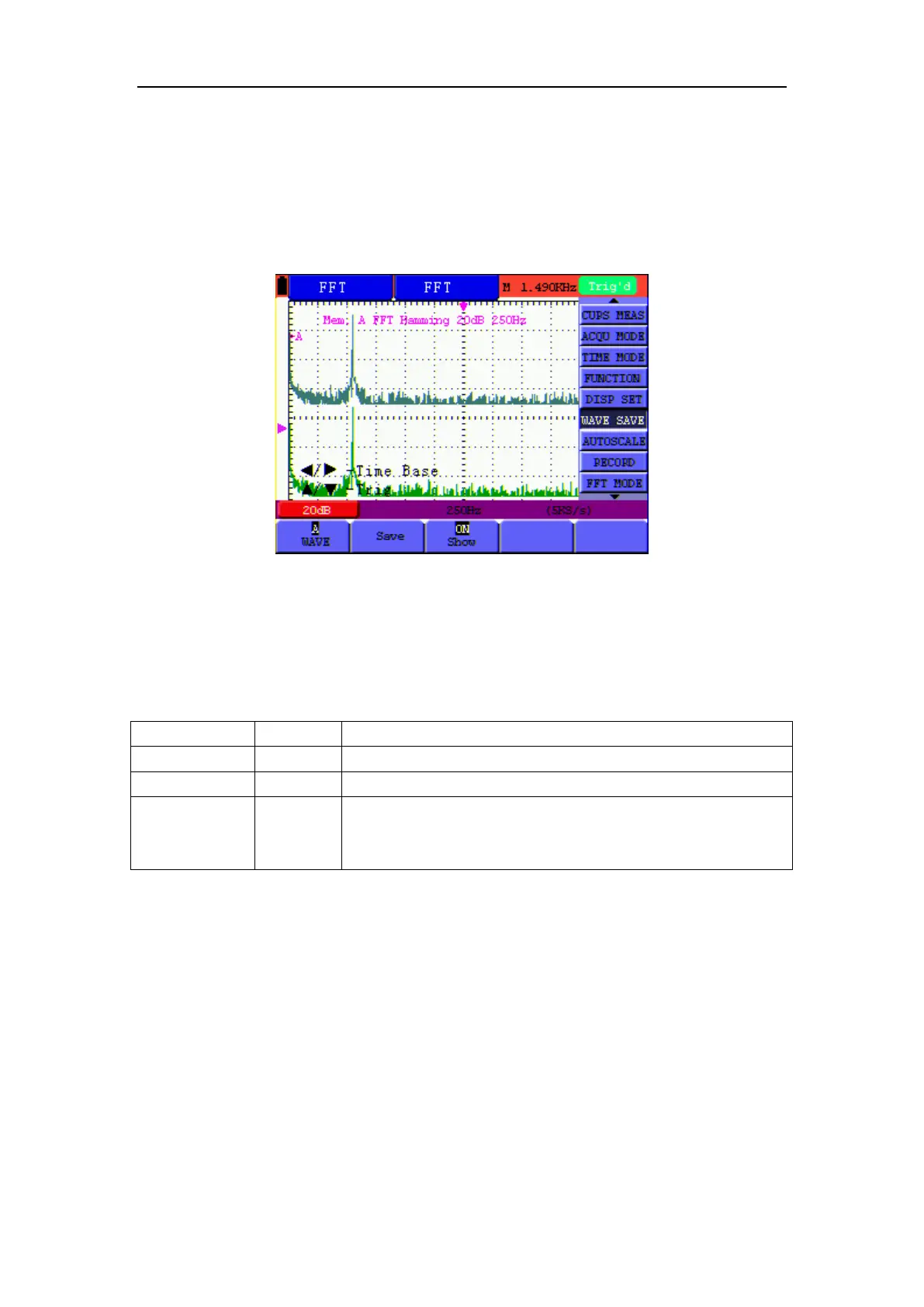

Now, you can see a screen that looks like the following figure44
Figure 44: Waveform Saving in FFT Mode
8.8 Function Setting Menu
The FUNCTION menu is described in the following list.
Resume the instrument to its factory settings.
Perform the Auto-calibration procedure.
Language
Chinese
English
Other
Select the display language.
The Auto-calibration function automatically configures internal parameters to maintain the
accuracy. Run the Auto-calibration in the following cases:
The temperature fluctuates more than 5 degrees Celsius during operations.
Operate the oscilloscope in a new bench top or field environment.
Procedure:
1. Press the MENU key and select the FUNCTION menu using MENU
▲ or MENU
▼ key.
2. Press F2 (Auto calibration). A message appears on the display, asking you to remove all cables
and probes from oscilloscope.
