8-Advanced Function of Oscilloscope
8.6.1 Display Style

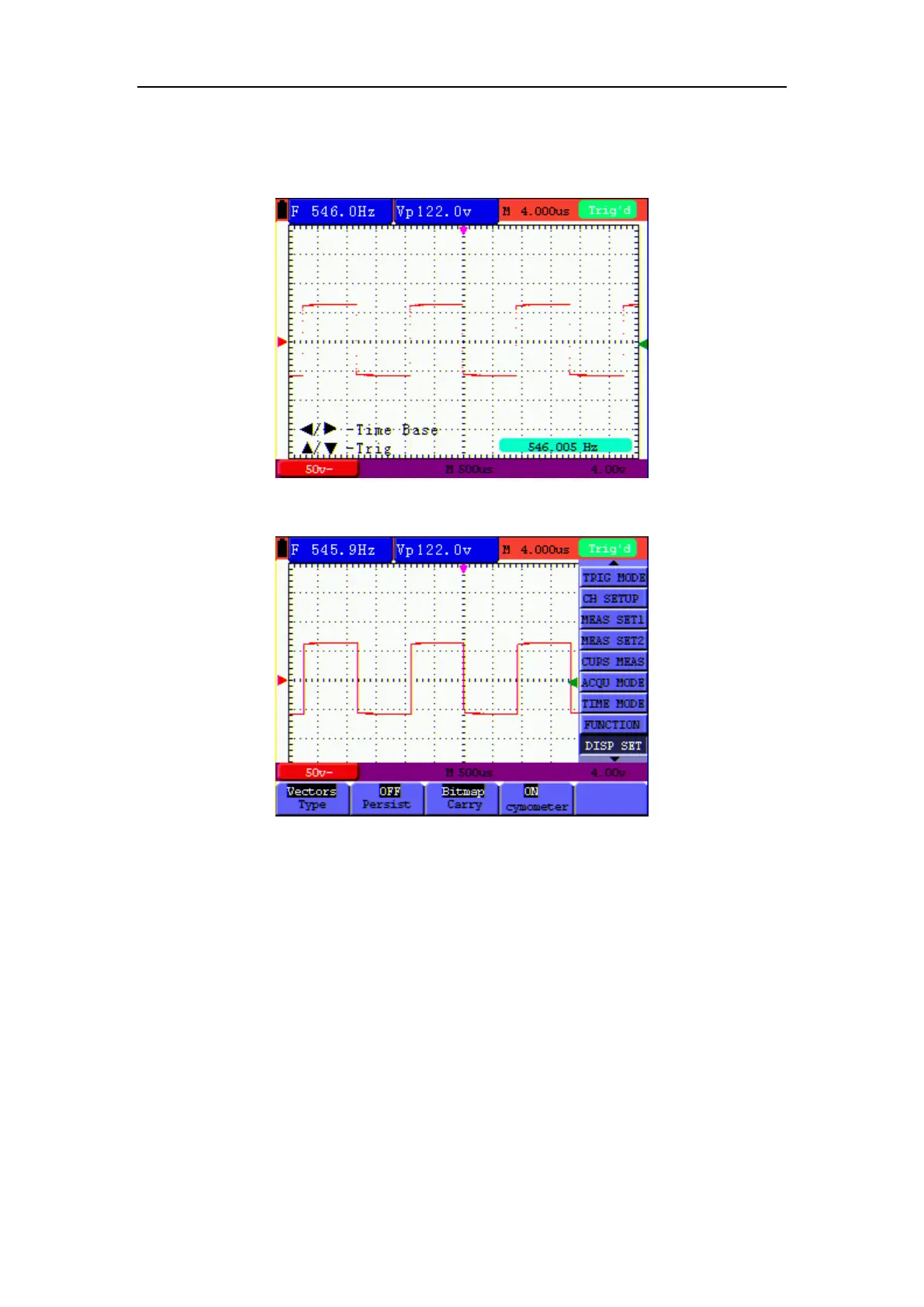

The display style includes Vectors and Dots displays, shown as the following figure 40, figure 41.
Figure 40: Dots Style
Figure 41: Vectors Style
8.6.2 Persistence
With Persist function selected, the displayed saved original data gradually decay in colour and the
new data are bright in colour; with infinite persistence mode selected, the oscilloscope keeps all
past traces of the displayed waveform.
8.6.3 Cymometer
It is a 6 digits cymometer. Its measurement range of frequency is 2Hz to full bandwidth.
Set up cymometer limit to "ON" status.
To make a cymometer setting, do the following:
