8-Advanced Function of Oscilloscope
8. Advanced Oscilloscope Function
8.1 About this Chapter
This chapter will detail the oscilloscope function of the test tool.
8.2 Setting the Vertical Channel
Each channel has its own independent vertical menu and each item can be set respectively based
on the specific channel.
To make vertical Channel settings, do the following:
1. Press the MENU key and the function menu appears at the right of the screen.
2. Press the MENU
▲ or MENU
▼ key to jump to CH SETUP and 4 options appears at the
bottom of the screen.
3. Select key from F1 to F4 to make different settings.

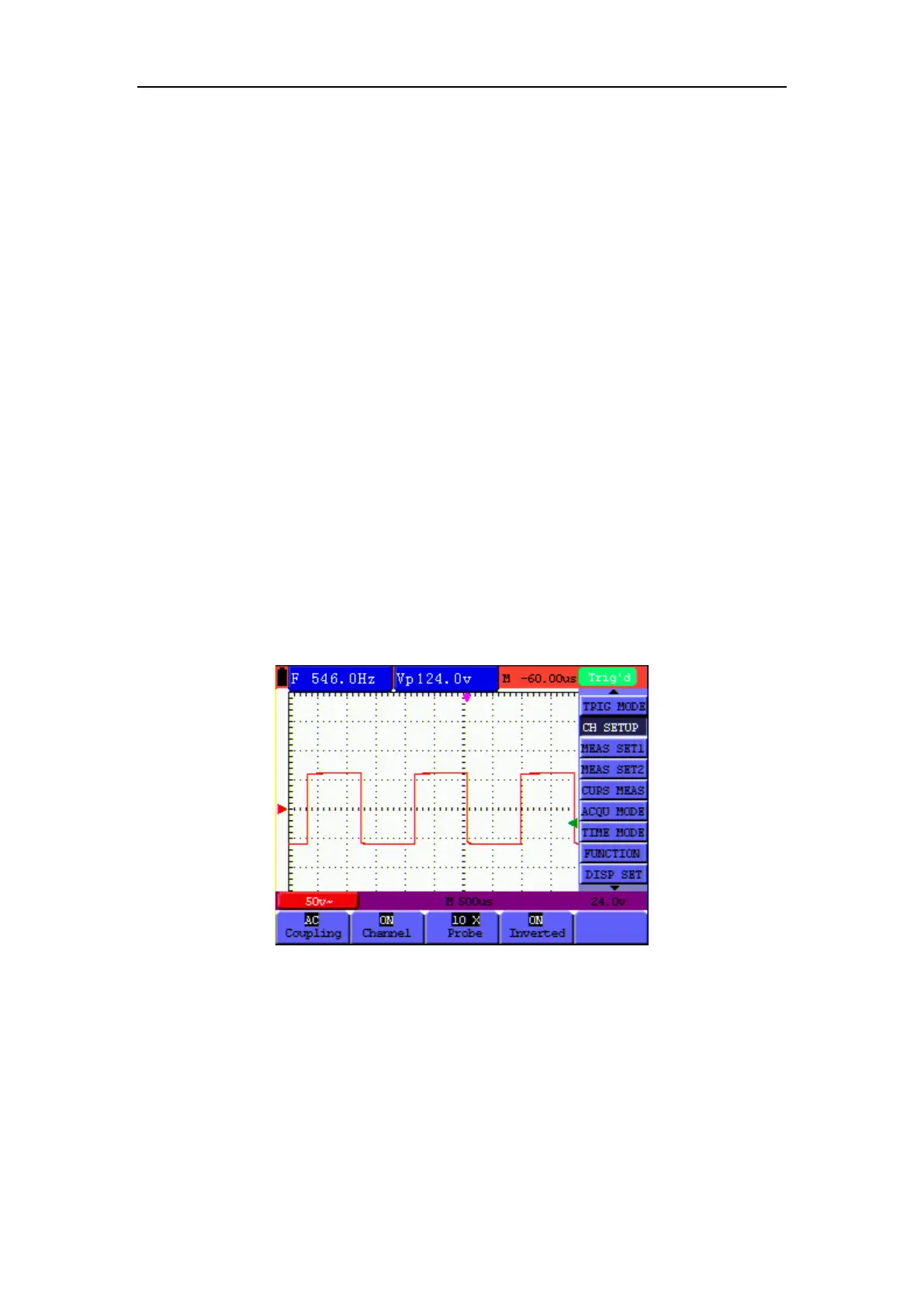

Now, you can find a screen that looks like the following figure 31.
Figure 31: Setting the Vertical
