6-Using the Oscilloscope
23
number of averaging increases, the slower the waveform update becomes.
1. Press the MENU key and the function menu appears on the right side of the screen.
2. Press MENU
▲ or MENU
▼ key to select ACQU MODE, with four items selectable
displayed at the bottom of the screen.
3. Press the F3 key to select Average, then, press F4 key to jump to Averages 64 item. This
averages the outcomes of 64 acquisitions and shows the final averaging result on the screen,
shown as the following figures.
See the following figure 12:

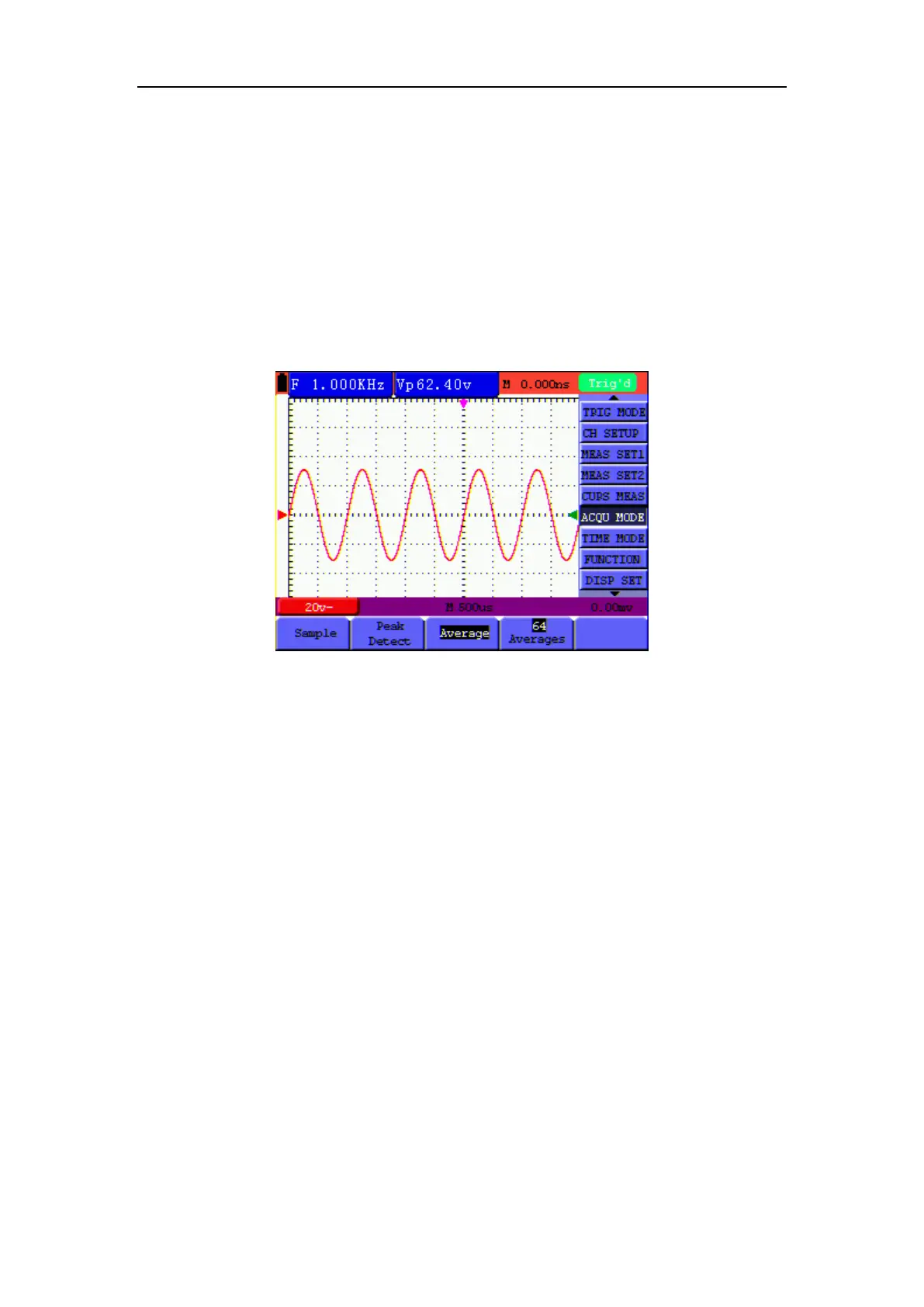

Figure 12: Average Factor Sampling Mode
6.13 Using Persistence to Display Waveforms
You can use Persistence to observe dynamic signals.
1. Press MENU key and the function menu appears on the right side of the screen.
2. Press MENU
▲ or MENU
▼ key to select DISP SET.
3. Press F2 key to select Persist 1 sec, 2 sec, 5 sec, Infinite or OFF. In this case, jump to
Infinite and the observed dynamic is kept on the screen continuously. When the item OFF
is selected, the Persistence function is closed.
Look at the display, a screen like the following figure 13 can be shown.
