7-Using the Multimeter
36
1. Press the R key and R appears on the top of the screen
2. Press the SET key until C appears at the top of the screen.
3. Insert the capacitance measurer of this multimeter to COM jack and V/Ω/C jack.
4. Insert the capacitance to the capacitance measurer, then screen shows the capacitance
reading.
Notice: when measured value is less than 5 nF capacitance, please use relative value measuring
mode to improve measuring precision. It will take about 30seconds if capacitance
measurement is larger than 40uF.

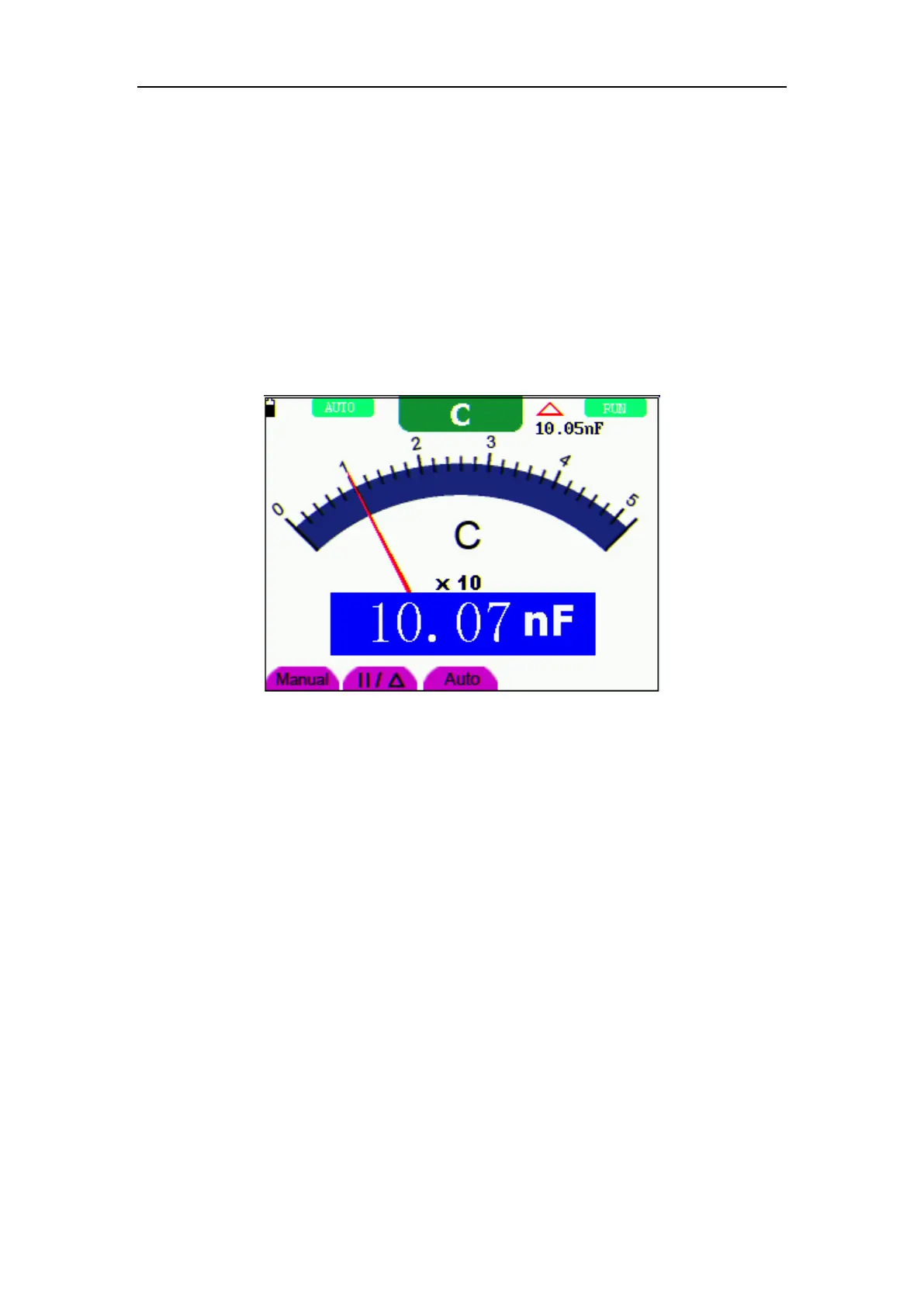

Now, you can see a screen that looks like the following figure 21.
Figure 21: Capacitance Measurement
7.4.5 Measuring DC Voltage
To measure a DC voltage, do the following:
1. Press the V key and DCV appears at the top of the screen.
2. Insert the black lead into the COM banana jack input and the red lead into the V/Ω/C
banana jack input.
3. Connect the red and black leads to the measured point and the measured point voltage value
is displayed on the screen.
Now, you can see a screen that looks like the following figure 22.
