7. Using the Multimeter
7.1 About this Chapter
This chapter provides a step-by-step introduction to the multi-meter functions of the test tool
hereafter. The introduction gives basic examples to show how to use the menus and perform basic
operations.
7.2 Making Meter Connections
Use the four 4-mm safety banana jack inputs for the Meter functions: 10A, mA, COM, V/Ω/C.
See figure 2 on P11 for the connections.
7.3 Multimeter Operation Window

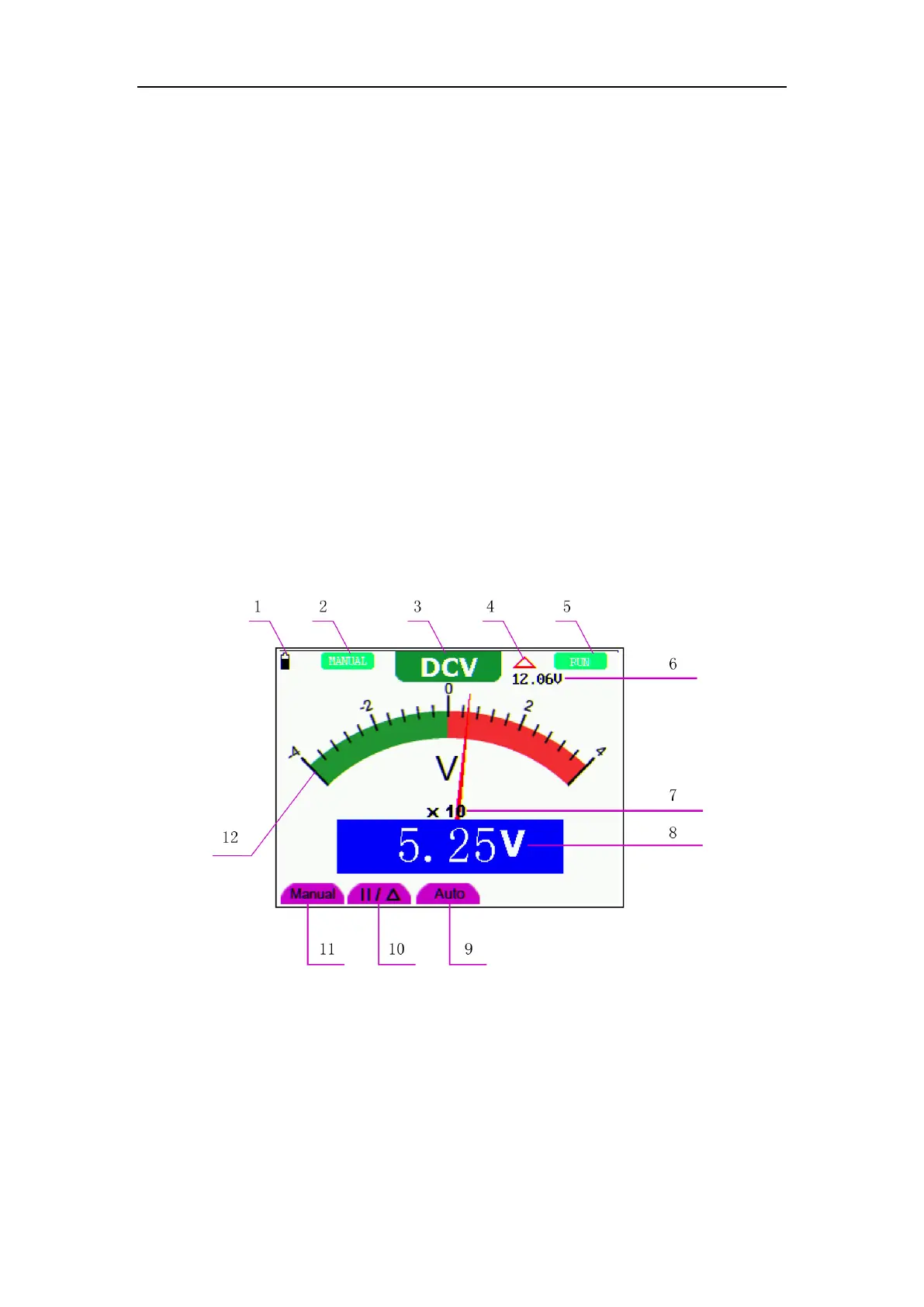

Figure 17: Multimeter Operation Window
Description
1. Battery electric quantity indicator.
2. Manual/Auto range indicators, among which the MANUAL means measuring range in
manual operation mode and AUTO refers to the measuring range in automatic operation
mode.
