6-Using the Oscilloscope
22

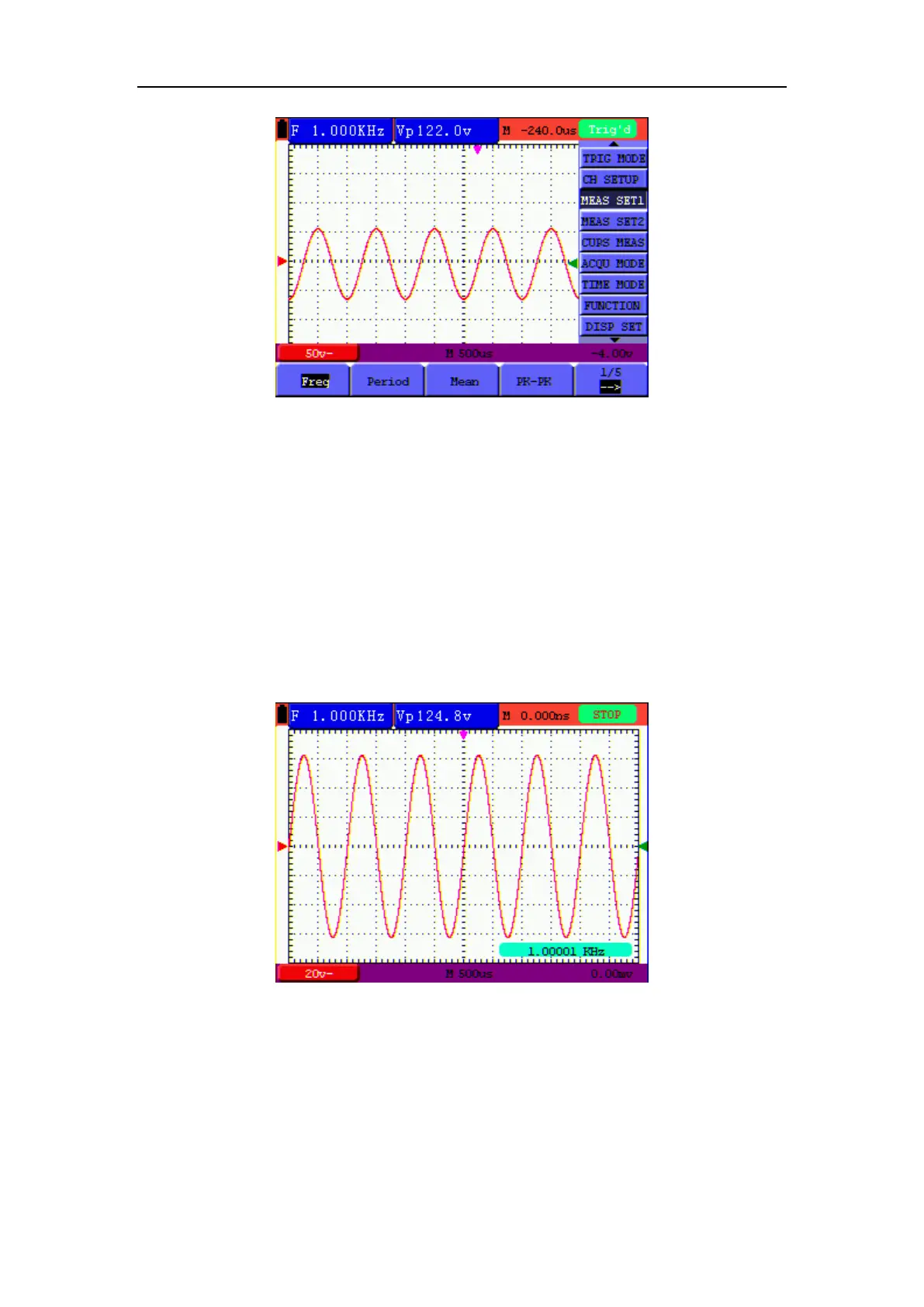

Figure 10: Automatic Scope Measurements
6.11 Freezing the Screen
You can freeze the screen (all readings and waveforms)
1. Press the RUN/STOP key to freeze the screen and STOP appears at top right side of the
screen.
2. Press the RUN/STOP key once more to resume your measurement.
See the following figure 11:
Figure 11: Freezing the Screen
6.12 Using Average for Smoothing Waveforms
Using the Average acquisition mode, you can smooth out the displayed waveform by averaging
multiple data samples. The number of averaging is selectable from 4, 16, 64, and 128.
Note: In order for average mode to work in the best way, the waveform must be repetitive; As the
