7-Using the Multimeter
37

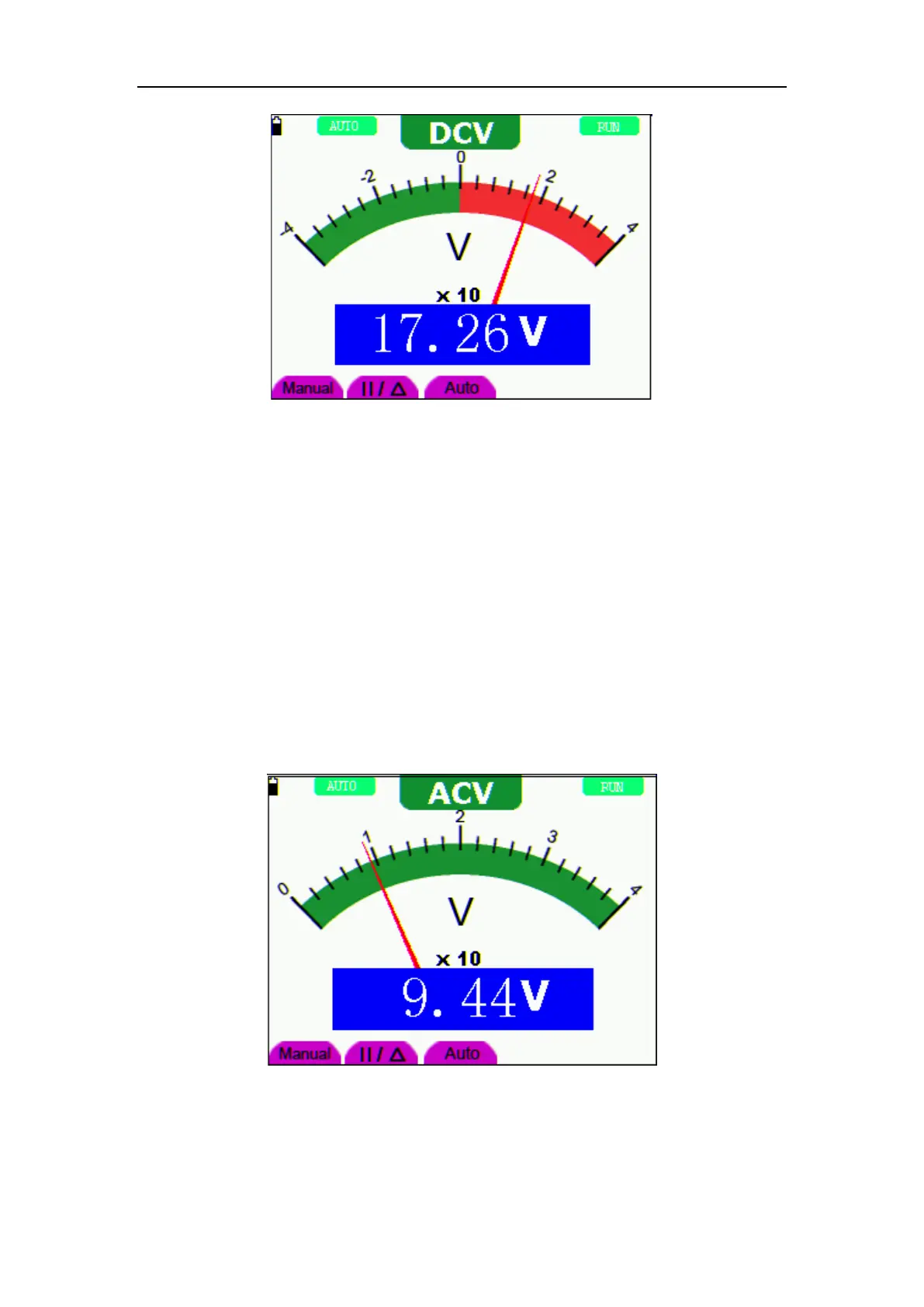

Figure 22: DC Voltage Measurement
7.4.6 Measuring AC Voltage
To measure the AC voltage, do the following:
1. Press the V key and DCV appears at the top of the screen.
2. Press the SET key and ACV appears at the top of the screen.
3. Insert the black lead into the COM banana jack input and the red lead into the V/Ω/C
banana jack input.
4. Connect the red and black leads to the measured points and the AC voltage values of
measured points will be displayed on the screen.
Look at the display; you can see a screen that looks like the following figure 23.
Figure 23: AC Voltage Measurement
