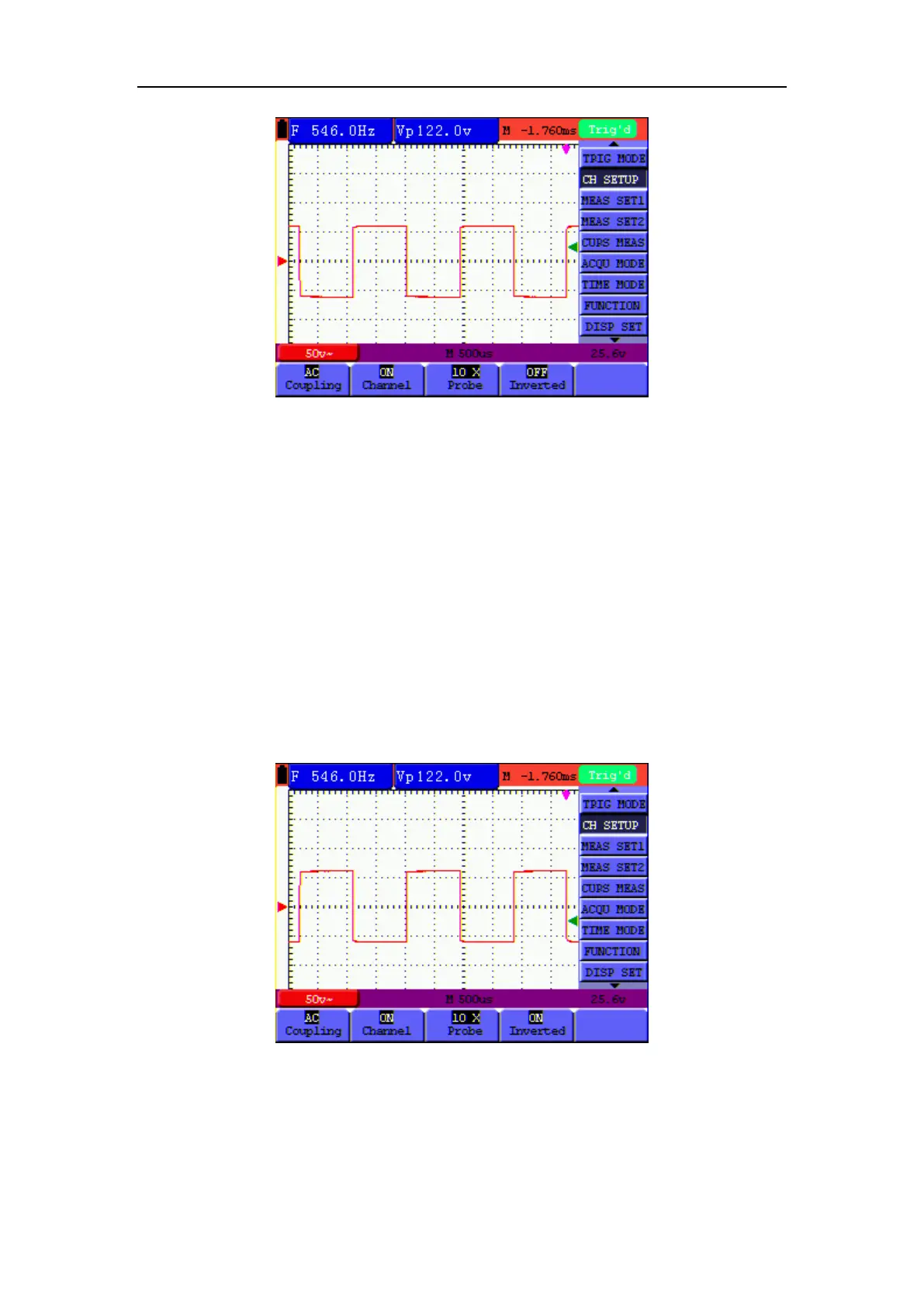

Figure 15: AC-Coupling
6.16 Reversing the Polarity of the Displayed Waveform
To invert the input waveform, do the following:
1. Press the MENU key and the function menu appears at the right side of the screen.
2. Press the MENU
▲ or MENU
▼ key to select CH SETUP. Four items selectable are
displayed at the bottom of the screen.
3. Press F4 key to jump to Inverted, set it as ON. The inverted waveform is displayed on the
screen.
Now, you can see a screen that looks like the following figure 16.
Figure 16: Inverted On
6.17 Use USB mass storage device to save waveform data
Insert the USB mass storage device into the USB port and press copy key, then the current
To Next Page
