7-Using the Multimeter
41

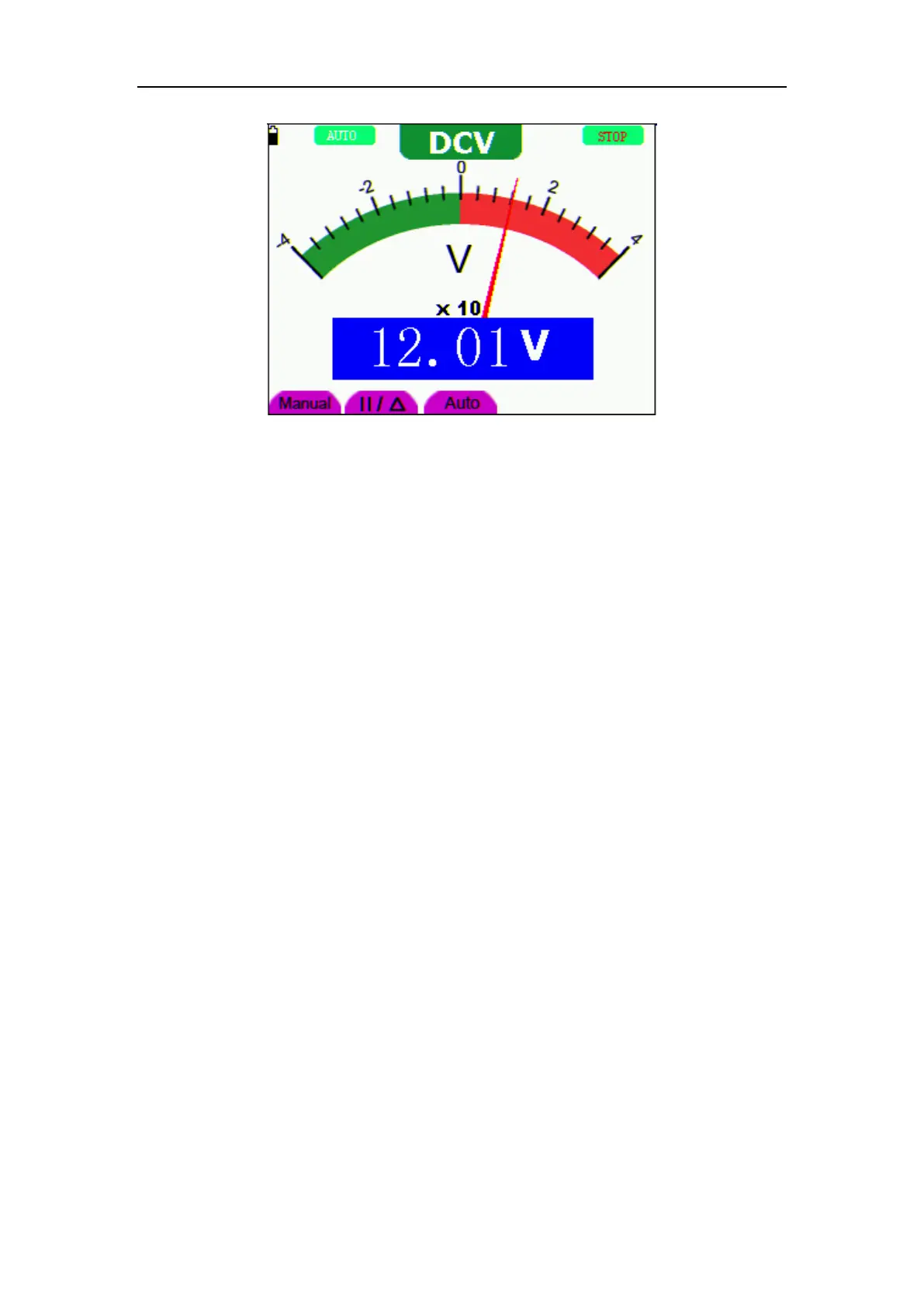

Figure 28: Freezing the Readings
7.6 Taking a Relative Measurement
A currently measured result relative to the defined reference value is displayed in a relative
measurement.
The following example shows how to take a relative measurement. At first, it is required to
acquire a reference value.
1. Press R key and R is displayed on the top side of the screen.
2. Press the SET key until C appears at the top of the screen.
3. Plug capacitance extended module in capacitance measure jack.
4. When the reading leveling off, press F2 key and
is displayed on the top side of the screen.
The saved reference value is displayed below
.
5. Plug capacitance, the displayed major reading on the screen is actual the capacitance value.
Look at the display; you can see a screen that looks like the following figure 29.
