5. Press the F4 key to jump to the PK-PK measurement. The measurement window on the
screen shows the peak-to-peak value of waveform.

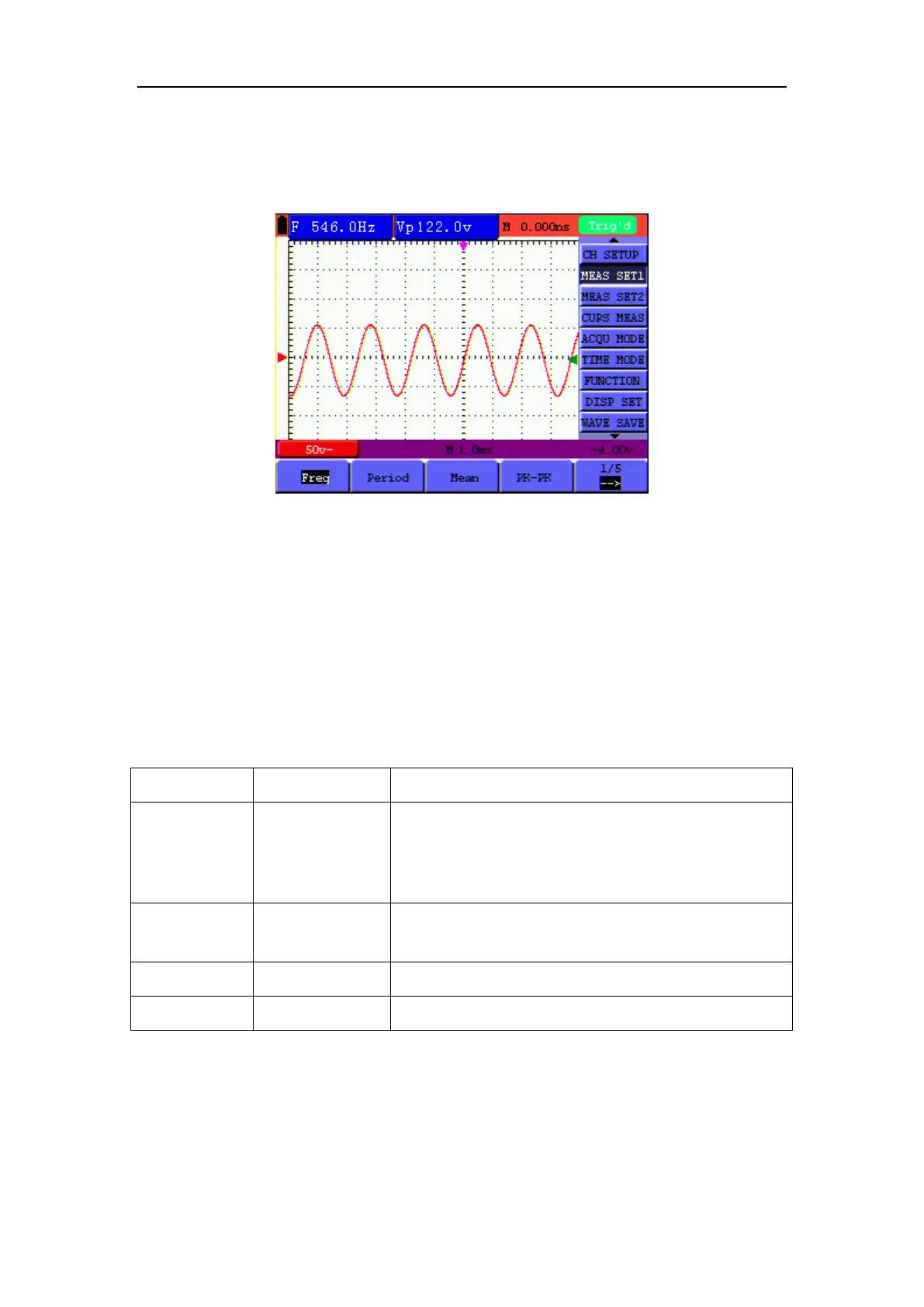

Now, you can see a screen that looks like the following figure 45.
Figure 45: Automatic Measurements
8.10 Setting the Cursor Measurements
This oscilloscope allows you to make manual cursor measurements on time and voltage.
8.10.1 Setting the cursor measurement in normal mode
The cursor measurement menus are listed and described in the following table.
Function menus Settings Description
Type
OFF
Voltage
Time
Close the cursor measurement.
Display the voltage measurement cursor and menu.
Display the time measurement cursor and menu.
Delta
Display the difference of measured value between
the two channels
Cur1
Display the relating measured value of Cursor 1
Cur2
Display the relating measured value of Cursor 2
To make a voltage measurement, doing the following:
1. Press the MENU key and the function menus are displayed at the right of the screen.
2. Press the MENU ▲ or MENU ▼ key to select CURS MEAS. Five options are shown at the
bottom of the screen.
