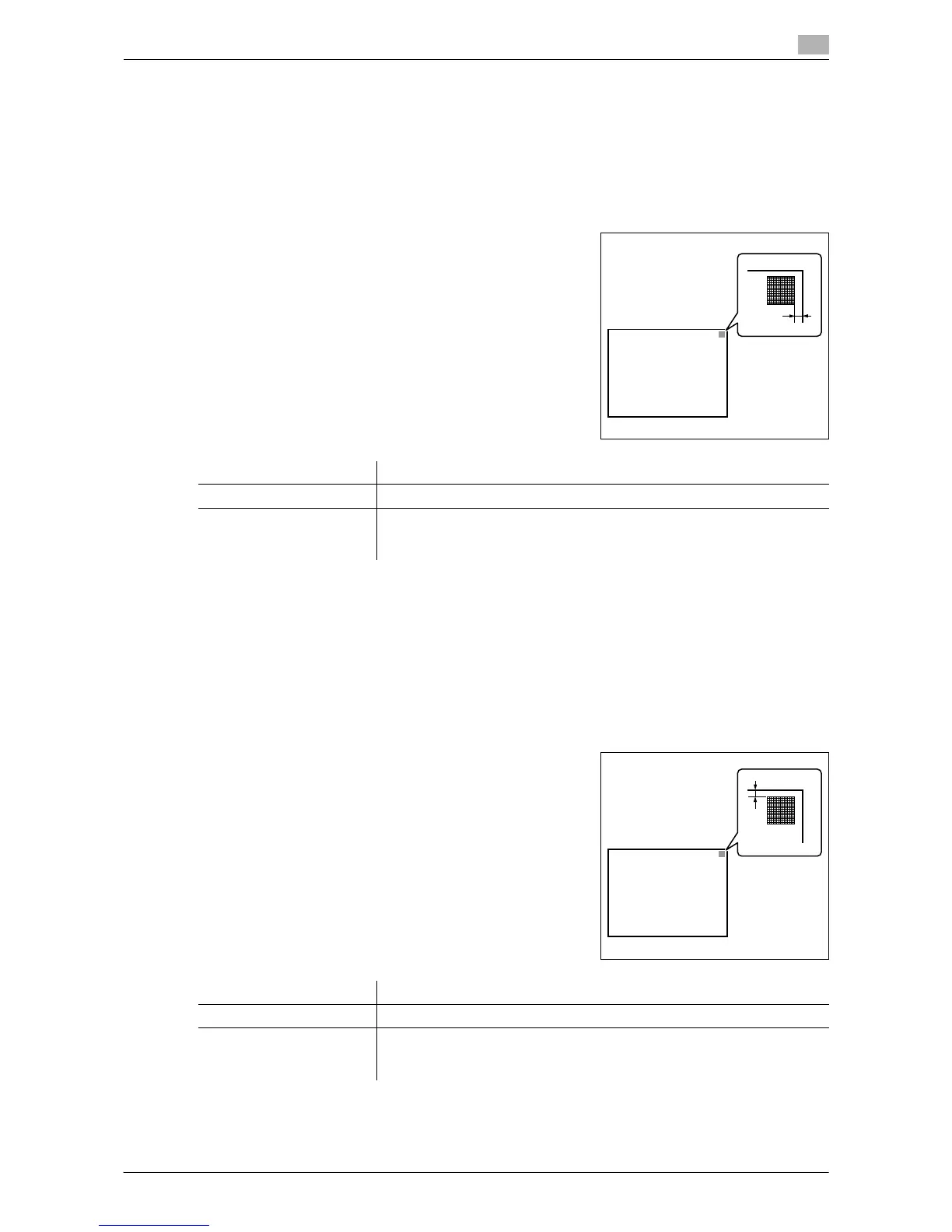

[Leading Edge Adjustment (Duplex Side 2)]
To display: [Utility] - [Administrator Settings] - [System Settings] - [Expert Adjustment] - [Printer Adjustment]
- [Leading Edge Adjustment (Duplex Side 2)]
Adjust the print start position at the leading edge of the paper relative to the paper discharge direction for
printing the back side in 2-sided printing.
Press Start to print a test pattern. Check the test pattern and adjust so that the margin between the leading
edge of the paper and the print start position is 3/16 inches (4.2 mm). Repeat adjustments, as required.
[Centering (Duplex 2nd Side)]
To display: [Utility] - [Administrator Settings] - [System Settings] - [Expert Adjustment] - [Printer Adjustment]
- [Centering (Duplex 2nd Side)]
Adjust the print start position at the left edge of the paper relative to the paper discharge direction for printing
the back side in 2-sided printing.
Press Start to print a test pattern. Check the test pattern and adjust so that the margin between the left edge
of the paper and the print start position is 3/16 inches (4.2 mm) (+/-1/32 inch (+/-0.5 mm)). Repeat adjust-
ments, as required.
Tips
- Only 8-1/2 e 11 v (A4 v) paper can be used for adjusting the Bypass Tray.
Settings Description
[Paper Type] Select the type of paper that is used to adjust the start position for printing.
[Adjust Value] Enter an adjustment value between -3.0 and +3.0 mm by tapping [-] and
[+].
[0.0 mm] is specified by default.
Settings Description
[Select Tray] Select a paper tray that is used to adjust the start position for printing.
[Adjust Value] Enter an adjustment value between -3.0 and +3.0 mm by tapping [-] and
[+].
[0.0 mm] is specified by default.
