Napoleon Ascent Deep Series Installation Manual

EN
W415-2912 / E / 06.02.21
15
venting requirements
16" (40.6cm)
minimum
40 FT (12M)
maximum
3 FT (1M)
minimum
base of air collar
20” (50.8cm)
MAXIMUM
6” (152mm)
RISE MINIMUM

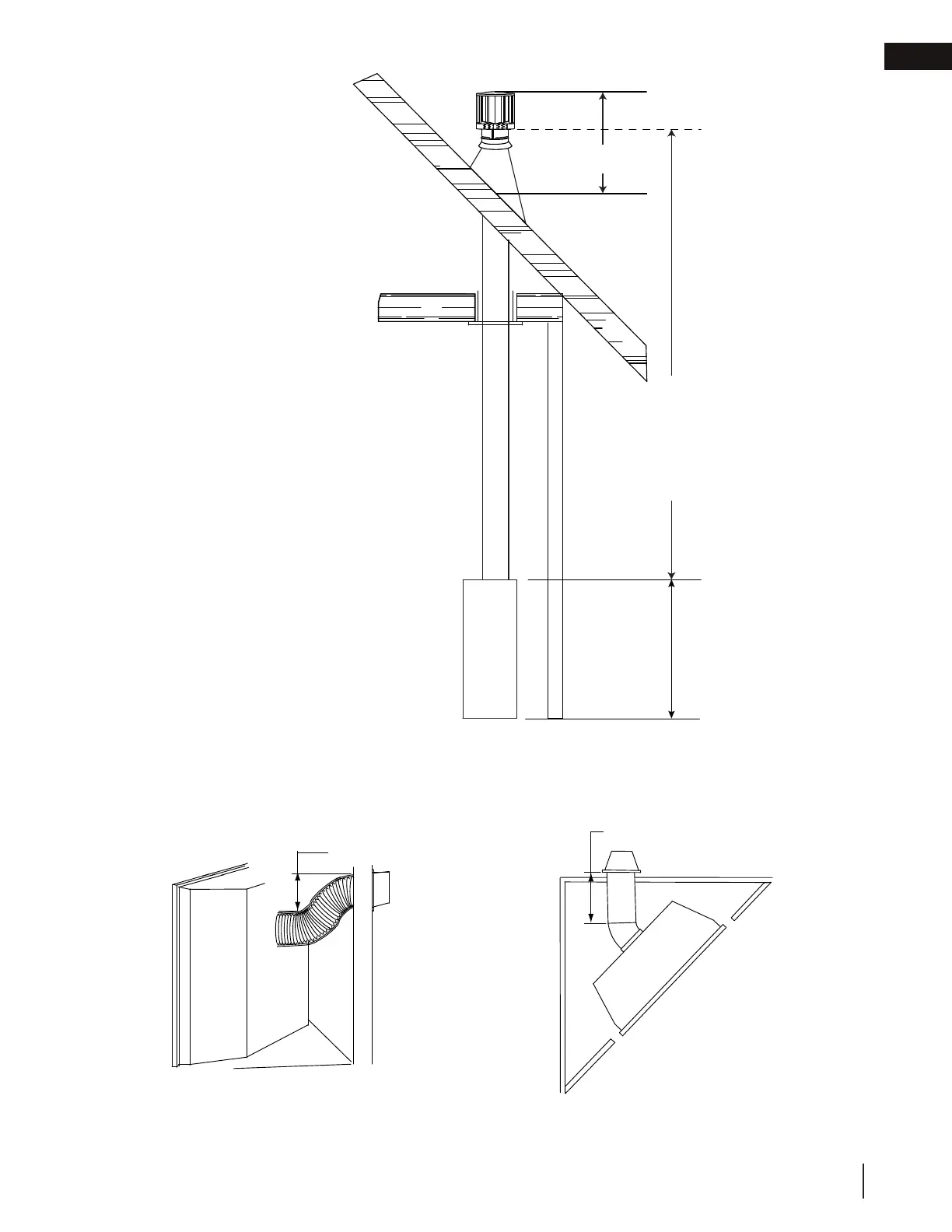

2.1.1 corner termination
The maximum vent length for a corner installation is 20" (50.8cm) of horizontal run, in addition to the 45°
offset. Using rigid venting, zero rise is acceptable. Using fl exible venting, it is required to maintain a 6"(152mm)
rise. See illustrations below.
FLEX VENTING
RIGID VENTING
