electrical information

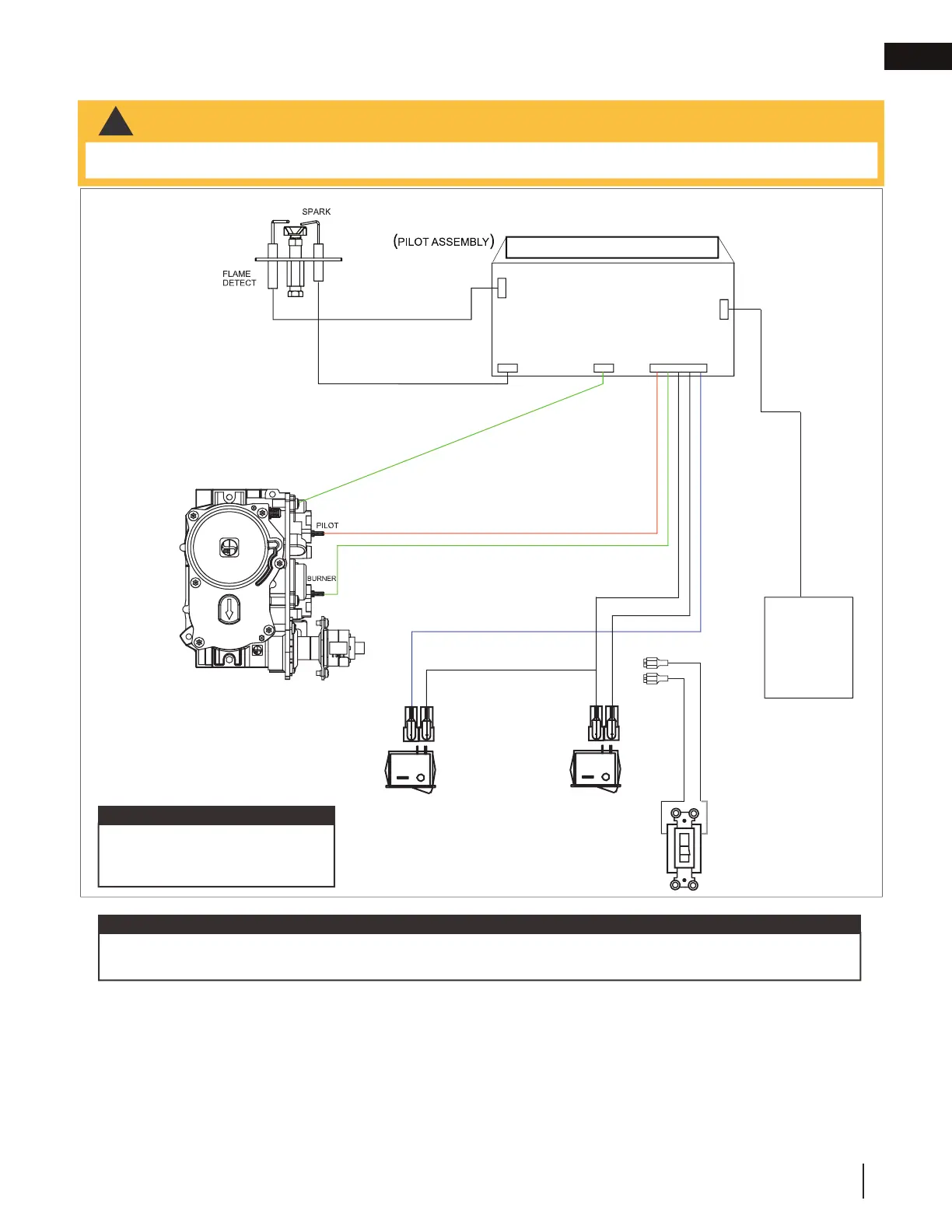

5.6 wiring diagram (D42 only)
PILOT
W010-4895 (NG)
W010-4896 (P)
W190-0195 (PF0 CONTROL BOARD)
W725-0062 (NG)
W725-0063 (P)
(GAS VALVE)
• Do not wire 110 volts to the valve or wall switch.
!
WARNING
ON / OFF
SWITCH
ACS
GROUND (GREEN)
W750-0493
ORANGE
GREEN
WIRE HARNESS
W750-0497
BLACK
WHITE
BLUE
BLACK (OPTIONAL)
WHITE (OPTIONAL)
POWER CORD
(W750-0495)
OR
USB POWER
PACK
(NOT
SUPPLIED)
OPTIONAL WALL
SWITCH / THERMOSTAT
PILOT SENSOR
SPARK ROD
A USB power pack (not
supplied) can be used during a
power outage.
note:
The optional wall switch / thermostat should be connected to the piggyback connectors on the back of the ON
/ OFF switch.
note:
