EN
W415-2912 / E / 06.02.21
35
venting installation

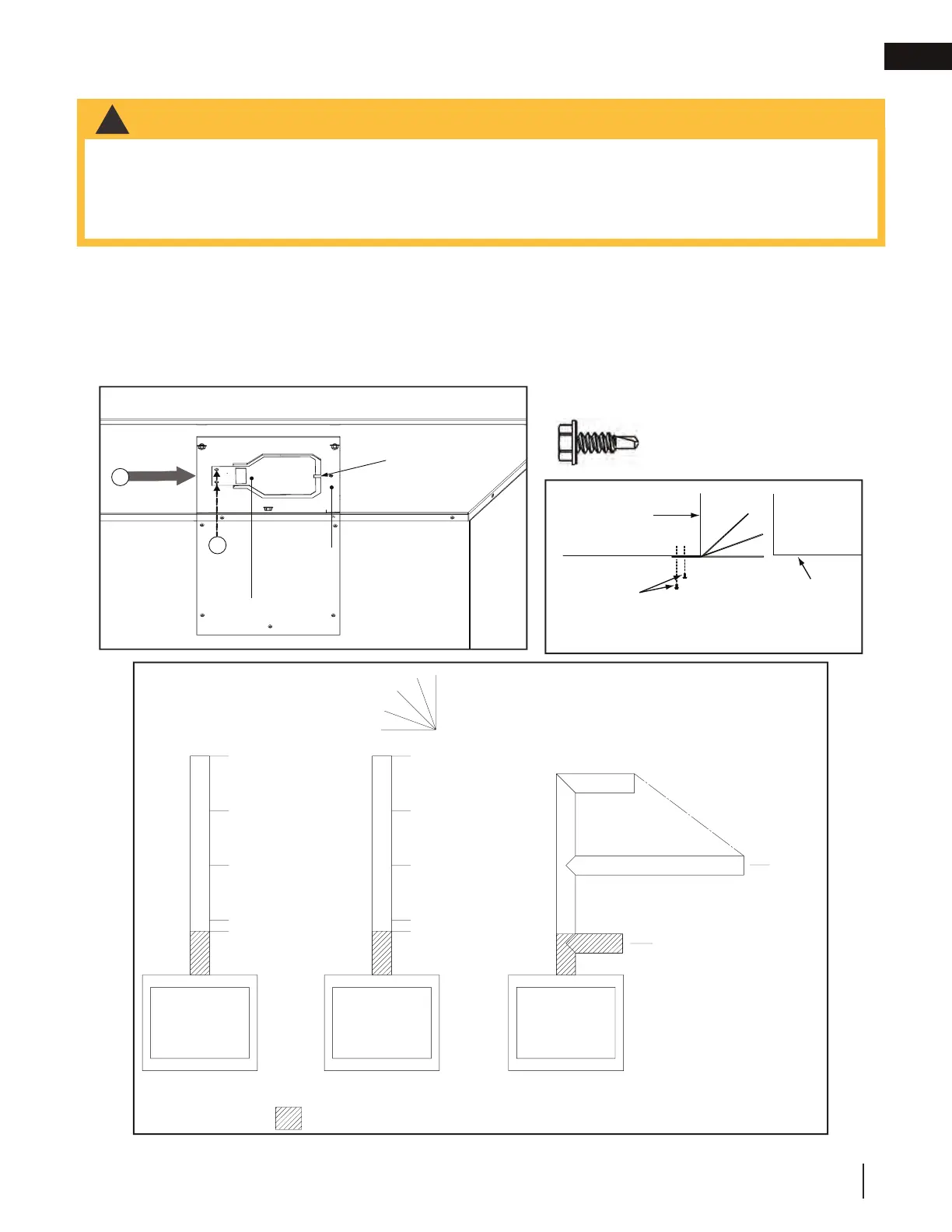

4.3.4 restricting vertical vents
• Turn off gas and electrical supply before servicing the appliance.
• Appliance may be hot, do not service until appliance is cool.
• For safe and proper operation of the appliance, follow the venting instruction exactly.
• To avoid danger of suffocation, keep the packaging bag away from babies and children. Do not use in
cribs, beds, carriages or play pens. This bag is not a toy. Knot before throwing away.
!
WARNING
Vertical installations may display a very active fl ame. If this appearance is not desirable, the exhaust outlet may be
restricted with a Wolf Steel approved restrictor kit.
A. The exhaust outlet reducer is factory installed for all vent confi gurations but may not be required.
B. Secure restrictor plate using 2 self-drilling screws .
C. Depending on the amount of restriction desired, the restrictor plate (supplied) can be installed fl at for the
most restriction or bent up for varying degrees of restriction (see Figure 3 for restriction guide).
Exhaust
outlet
reducer
Restrictor Plate
1
2
The restrictor
plate MUST
rest on this tab.
1. Most restriction
2. Moderate restriction
3. Least restriction
Exhaust collar
Firebox top
#8x½ hex head
sheet metal screw
Fig. 1
Fig. 2
MIN/MAX
57" / 20' (0°)
NO RESTRICTION PLATE REQUIRED
8 FT (0°)
10 FT (0°)
20 FT(0°)
30 FT (0°)
40 FT
(15°)
CLOSED
20°
45°
70°
40 FT (25°)
30 FT (0°)
20 FT (0°)
10 FT (0°)
8 FT (0°)
PROPANE
NATURAL GAS
Note: Adjust paddle based
on more "V" or "H"
NG / LP
** FOR SEVERELY RESTRICTED VENT CONFIGURATIONS, THE PRE-INSTALLED
REDUCER MAY BE REMOVED.
Fig. 3
#6 X 2
