Napoleon Ascent Deep Series Installation Manual

EN
W415-2912 / E / 06.02.21
49
fi nishing
10.4 minimum combustible mantel clearances

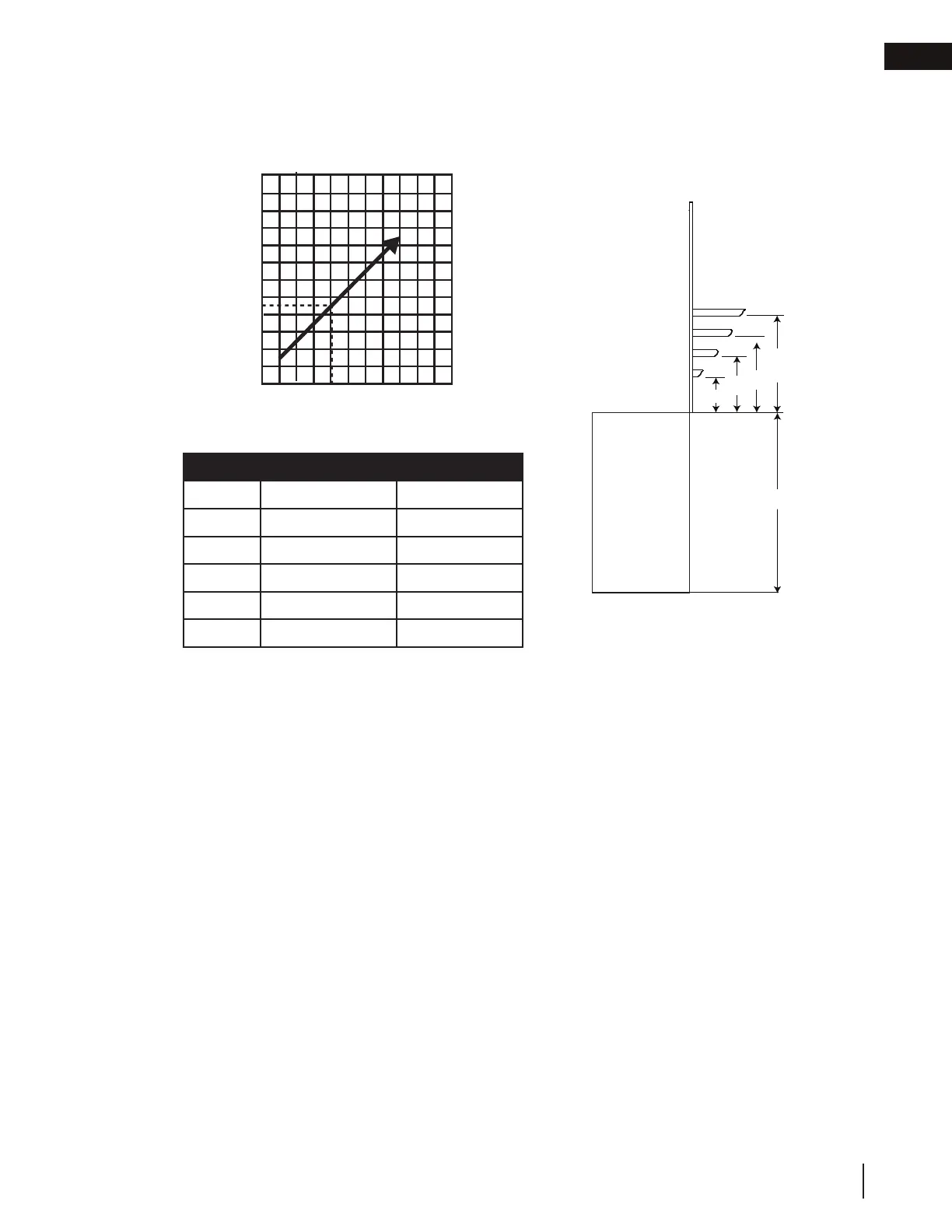

Combustible Mantel clearance can vary according to the mantel depth. Use the graph to help evaluate the clear-
ance needed.
0
12
14
10
+
(
,
*
+
7
0
$
1
7
(
/
MANTEL DEPTH
6
8
4
2
16
18
20
22
24
2468
10
1214161820
E
D
C
B
A
Top of hood
MANTEL DIMENSIONS
Ref Height Depth
A
35” (88.9cm) N/A
B
3” (76mm) 2" (51mm)
C
5” (127mm) 4" (102mm)
D
7” (178mm) 6" (152mm)
E
9” (229mm) 8" (203mm)
