EN
W415-2912 / E / 06.02.21
21
venting requirements
2 x INSULATION BATT
(1 1/2”)
8” INTAKE COLLAR
GASKET

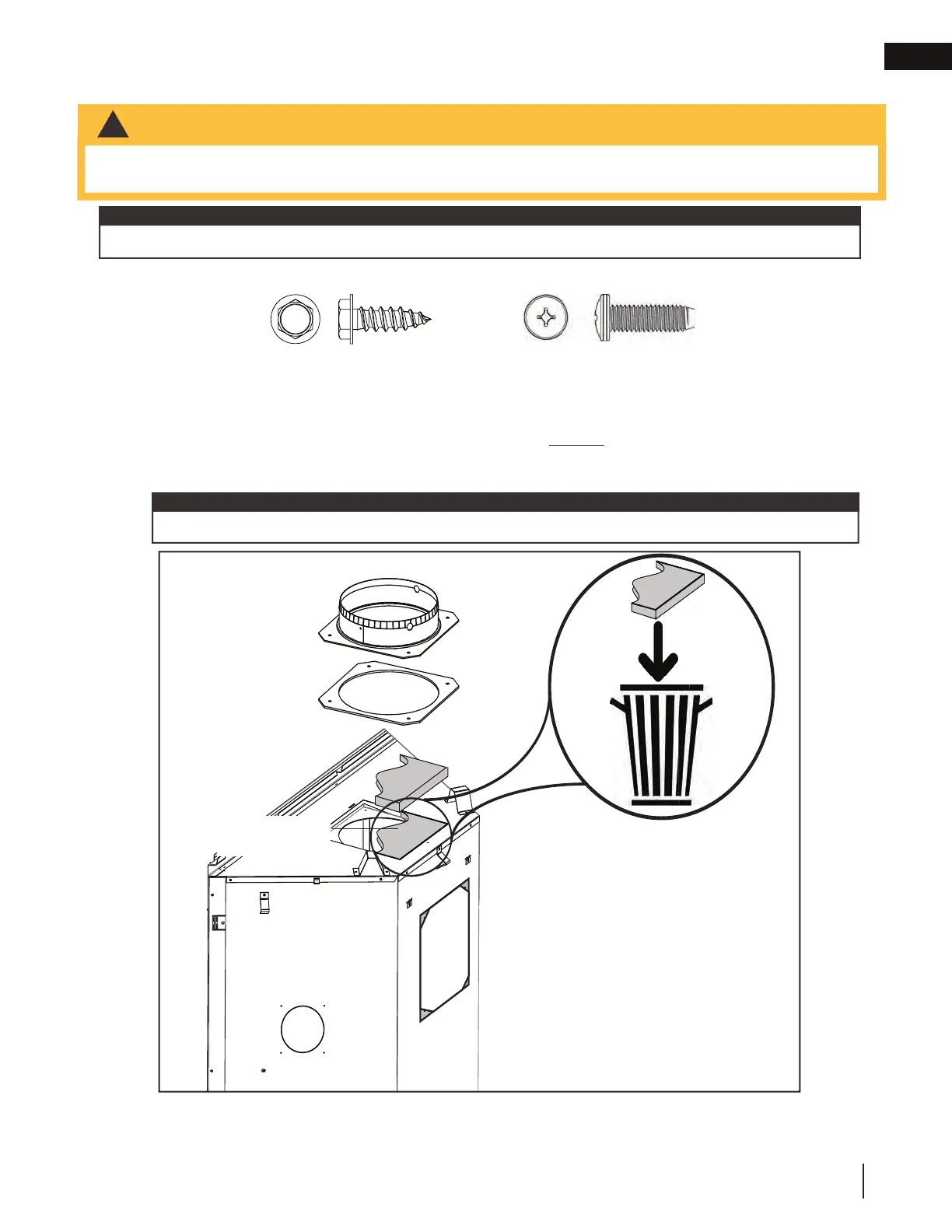

2.8 top exit
!
WARNING
• Failure to create a seal to the fi rebox with the exhaust collar assembly will cause the appliance to function
improperly and can cause injury or property damage.
A. Remove the safety barrier and glass door (see "safety barrier & door removal / installation" section).
B. Remove the contents from the log box and set aside. You will need the exhaust, air inlet collars and
gaskets (supplied).
C. Remove both 1 1/2" (38.1mm) thick batts of insulation and discard (Fig. 1).
D. Place the 8" (203mm) intake collar and gasket onto the top of the appliance and secure using 4 screws.
Fig. 1
This appliance has been factory shipped as a top vent.
note:
The manual baggie supplies the gasket and screws (packaged in another separate baggie).
tip:
X 2
#4 X 10 #7 X 4
