W415-2912 / E / 06.02.21
EN
40
electrical information

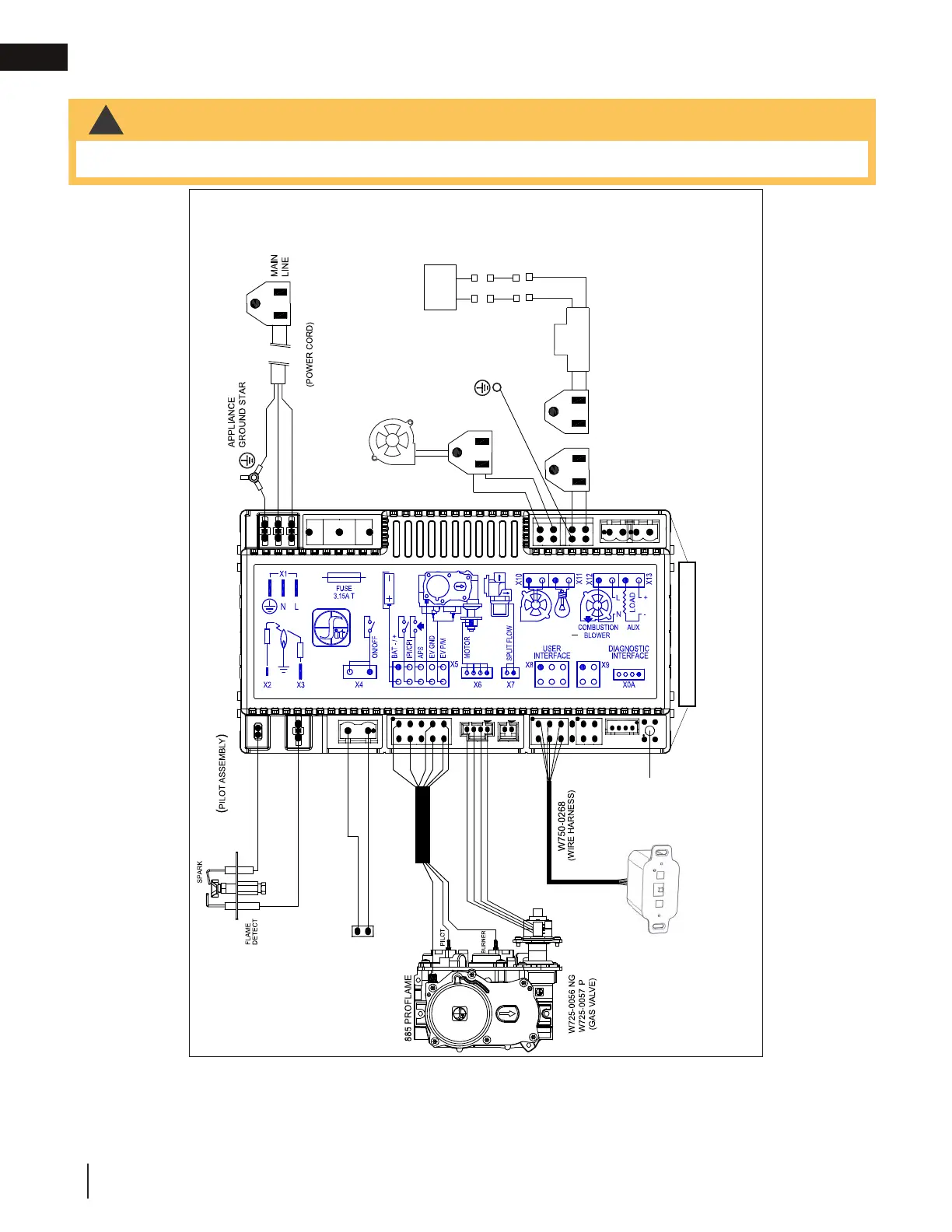

5.7 wiring diagram (DX42 only)
• Do not wire 110 volts to the valve or wall switch.
!
WARNING
RESET
BUTTON
W010-4895 (NG)
W010-4896 (P)
BATTERY HOLDER COMPLETE
LAMP
COMFORT
FAN
WITH PROGRAM BUTTON
W190-0177 (RECEIVER)
W750-0294
W750-0358
(LIGHT PIGTAIL)
W707-0019
W750-0475
ACCENT LIGHTS
W750-0276
WIRE HARNESS
W350-0655
W405-0072
GROUND
(BLOWER
PIGTAIL)
JUMPER
W175-0355
PILOT
