Napoleon Ascent Deep Series Installation Manual

EN
W415-2912 / E / 06.02.21
25
rough framing
Bend
Points
The top standoff provides the minimum clearance to the header. Use only non-combustible material for the width
of the appliance.
note:
1
2

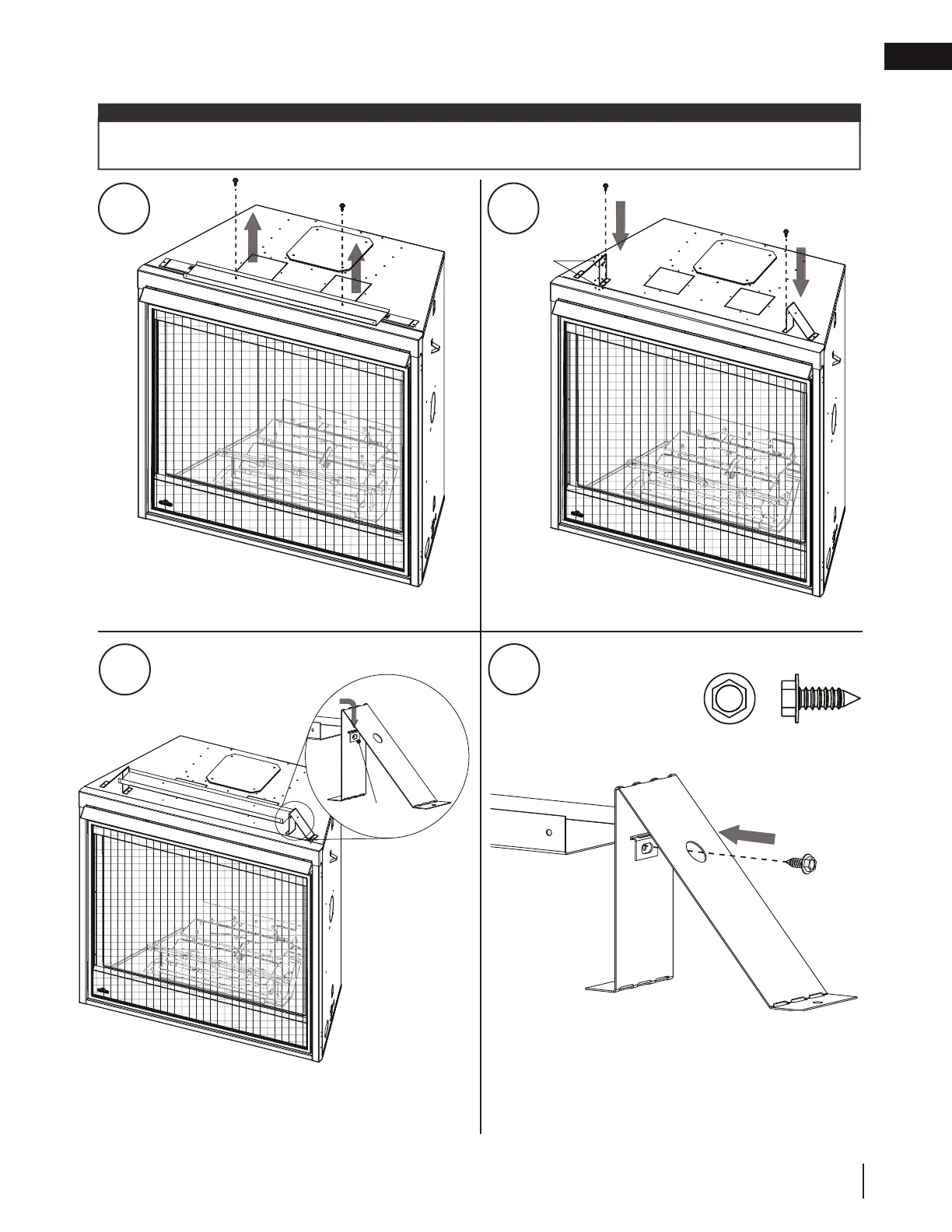

3.2 standoff and standoff shield installation
3
4
Set screws and defl ector aside.
Use screws from step 1.
Ensure to
bend tab.
Repeat on opposite side.
Repeat on opposite side.
Appliance hidden for clarity.
#1 X2
