10.6 log placement
!
WARNING
• Failure to position the logs in accordance with these diagrams or failure to use only logs specifi cally approved
with this appliance may result in property damage or personal injury.
• Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since
appliance may not function properly and delayed ignition may occur.
• The logs are fragile and should be handled with care.
If applicable, insert the following statement:
“PHAZER™ logs [and glowing embers], exclusive to Napoleon/Continental, provide a unique and realistic
glowing effect that is different in every installation. Take the time to carefully position the glowing embers for a
maximum glowing effect. Log colours may vary. During the initial use of the appliance, the colours will become
more uniform as colour pigments burn in during the heat-activated curing process.”
PHAZER™ logs and glowing embers, exclusive to Wolf Steel Ltd, provide a unique and realistic glowing effect that is
different in every installation. Take the time to carefully position the glowing embers for a maximum glowing effect. Log
colours may vary. During the initial use of the appliance, the colours will become more uniform as colour pigments burn
in during the heat-activated curing process. Blocked burner ports can cause an incorrect fl ame pattern.

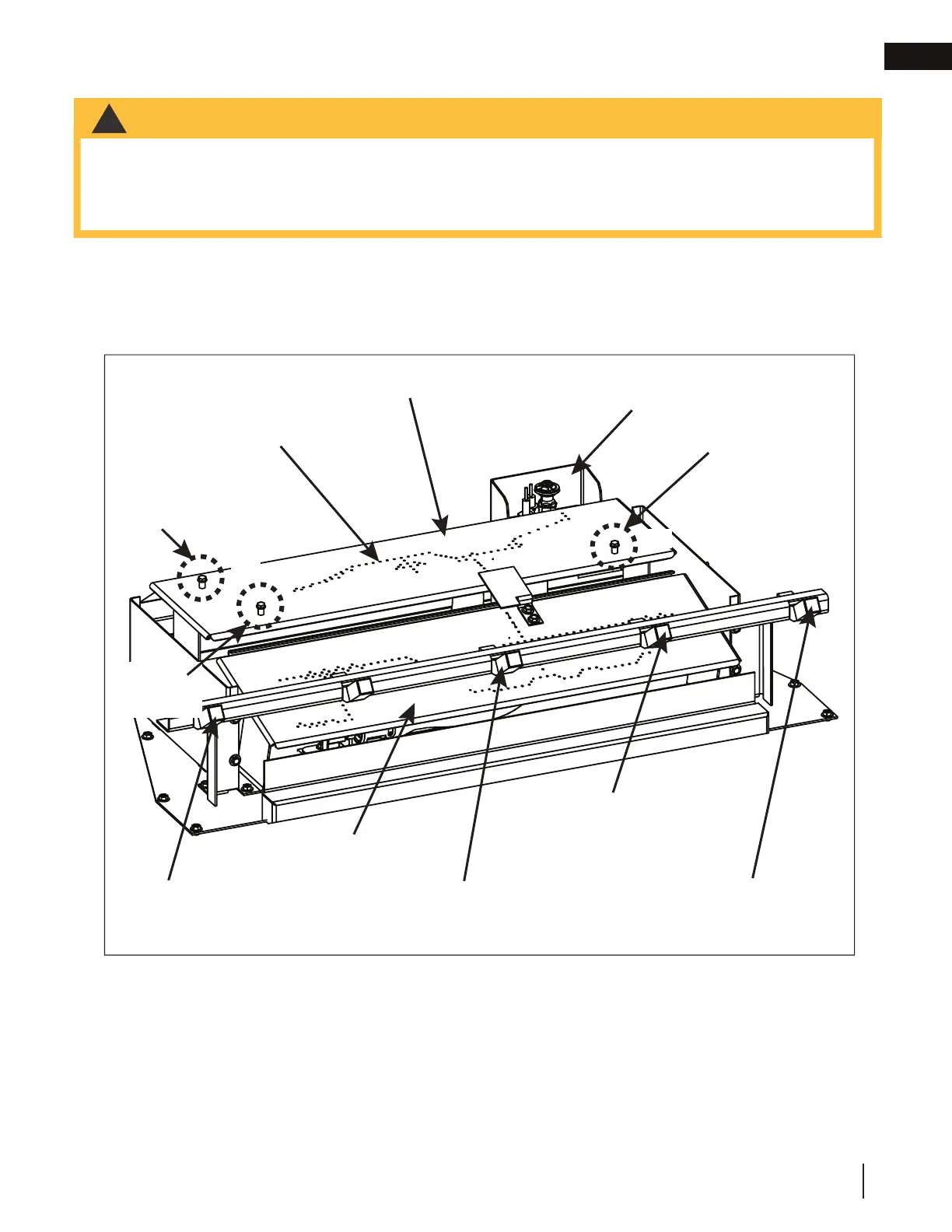

Pilot Shield
Burner Ports
Rear Burner
Front Burner
A1
B1
B2
Stud
(Log #2)
Stud
(Log #1)
Stud
(Log #2)
First Grate Post
(Log #3)
Fifth Grate Post
(Log #4)
Third Grate Post
(Log #5)
Fourth Grate Post
(Log #6)
