REAR EXIT ENCLOSURE
The appliance requires a minimum enclosure height of 47” (119.4cm). For temperature requirements, the enclo-
sure space around and above the appliance must be left unobstructed.

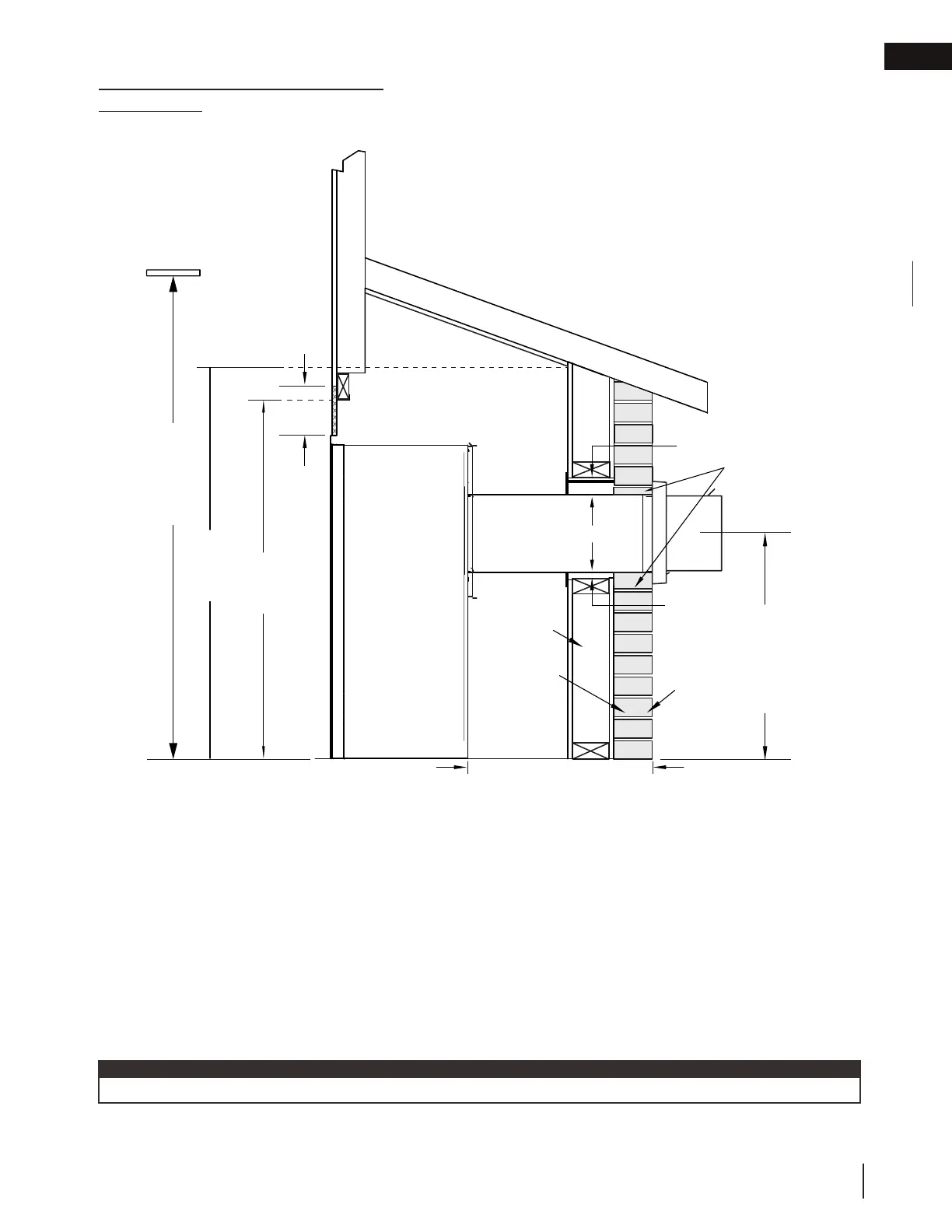

Maximum Rear Vent Clearances
(Example 2)
42”
(106.7cm)
5 7/8”
(149mm)
non-
combustible
material
28 1/2”
(72.4cm)
Minimum
plus rise*
Horizontal vent sections: A minimum clearance of 3” (76mm) on the top outside of the enclosure and 2”
(51mm) on the sides and bottom outside of the enclosure all around the vent pipe on all horizontal runs to com-
bustibles is required. Horizontal vent sections within enclosures require a minimum clearance of 3” (76.2mm) at
the top of the vent pipe.
Vertical vent sections: A minimum of 1” (25mm) all around the vent pipe on all vertical runs to combustibles is
required except for clearances in appliances enclosures. Vertical vent sections within enclosures require a mini-
mum clearance of 1” (25mm) around the vent pipe.
47”
(119.4cm)
min.
64”
(163cm)
Ceiling (min.)
2”
(51mm)
Enclosure top
Universal Heat Management kit not available for rear vent installations unless used in a TV recess application.
