Page 3-32 Vector-LP Radio Beacon Transmitter Technical Instruction Manual
Issue 1.1 Section 3 Operating Instructions

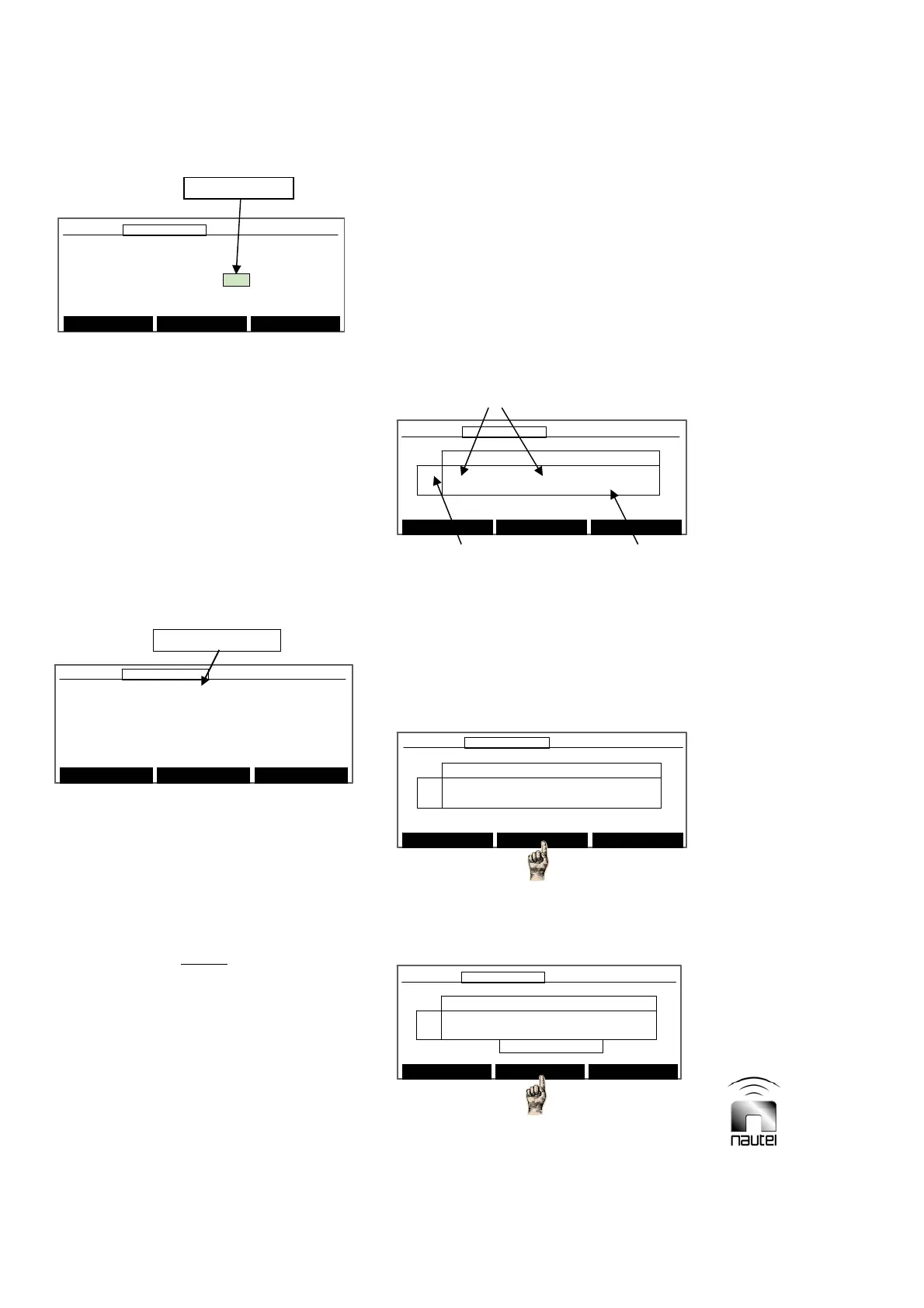

Power Module
Number of Power block expected: [3]
Block # 1 2 3 4
Side: A OK [X] [ ] [ ] [ ]
B OK [X] [ ] [ ] [ ]
Main Menu View Details Back
12:43:16 Power: 0W Site A Bypass
Power Module
Number of Power block expected: [3]
Block # 1 2 3 4
Side: A OK [X] [ ] [ ] [ ]
B OK [X] [ ] [ ] [ ]
Main Menu View Details Back
12:43:16 Power: 0W Site A Bypass12:43:16 Power: 0W Site A Bypass
X = installed
Detailed Status PA Bloc 1
B+ Setting : 150 Inhibited : Yes
Temperature: -50 B+ Voltage : 0.0
Dc Current : 0.10 PA Voltage : 0.0
Fan 1 Tach : 1 Fan 2 Tach : 0
PDM Inhib : No PA Alarm : No
Main Menu Back
12:43:16 Power: 0W Side A Bypass
Detailed Status PA Bloc 1
B+ Setting : 150 Inhibited : Yes
Temperature: -50 B+ Voltage : 0.0
Dc Current : 0.10 PA Voltage : 0.0
Fan 1 Tach : 1 Fan 2 Tach : 0
PDM Inhib : No PA Alarm : No
Main Menu Back
12:43:16 Power: 0W Side A Bypass12:43:16 Power: 0W Side A Bypass
PA = Side A
(a) Press f or g until the desired parameter
is highlighted.
x If the Number of Power block expected
value is highlighted, the Modify option is
displayed. If necessary, press Modify
and use f or g to select 1 (for Vector-
LP). Press Done when complete.
x If one of the power module fields (Block
# 1, Side A and B for Vector-LP) is
highlighted, the View Details option is
displayed. Press View Details to view
the following RF power module details:
(b) Return to the previous menu by pressing
Back.
3.6.13.3 ATU CONTROLS
If a Nautel antenna tuning unit (ATU) is being
used, view and edit its control parameters as
follows:
NOTE
A serial interface allows communication
between the transmitter and the ATU. This
interface connects to the transmitter via the
INTERNAL RS-485 connector (25-pin D-sub)
on the rear of the exciter/control assembly.
(a) The screen below appears if the ATU is
in local mode of operation and auto-
tuning is active and is tuned. This screen
allows viewing of ATU status only. No
adjustments are possible while the ATU
is in local mode.
(b) If the ATU is set to the remote mode of
operation, the screen is as shown below.
This screen allows ATU tuning to be
controlled from the transmitter GUI.
Press Coil Control.
(c) In the coil control screen shown below,
use f and g to select the desired coil to
control - Resistive Coil or Inductive
Coil. Press Continue.
ATU Control Antenna Curr.: 0.0A
Dec L N H Inc Auto-Tuning
R
[ ] [
] [ ]
Active
L
[ ] [
][ ]
Active
ATU is in REMOTE Mode
Press Coil Control to modify ATU settings
12:43:16 Power: 0W Site A Bypass
Main Menu Coil Control Back
ATU Control Antenna Curr.: 0.0A
Dec L N H Inc Auto-Tuning
R
[ ] [
] [ ]
Active
L
[ ] [
][ ]
Active
ATU is in REMOTE Mode
Press Coil Control to modify ATU settings
12:43:16 Power: 0W Site A Bypass12:43:16 Power: 0W Site A Bypass
Main Menu Coil Control Back
ATU Control Antenna Curr.: 0.0A
Dec L N H Inc Auto-Tuning
R
[ ] [
][ ]
Active
L
[ ] [
][ ]
Active
Coil Control: Resistive Coil
UP/Down Keys: Select a coil to configure
12:43:16 Power: 0W Site A Bypass
Main Menu Continue Back
ATU Control Antenna Curr.: 0.0A
Dec L N H Inc Auto-Tuning
R
[ ] [
][ ]
Active
L
[ ] [
][ ]
Active
Coil Control: Resistive Coil
UP/Down Keys: Select a coil to configure
12:43:16 Power: 0W Site A Bypass12:43:16 Power: 0W Site A Bypass
Main Menu Continue Back
Increase/Decrease Arrows
(Affected arrow is highlighted during
auto or manual tuning)
Resistive (R) and
Inductive (L)
Tuning Status Line
ATU Control Antenna Curr.: 0.0A
Dec L N H Inc Auto-Tuning
R
[ ] [
] [ ]
Active
L
[ ] [
][ ]
Active
ATU is in LOCAL Mode
12:43:16 Power: 0W Site A Bypass
Back
ATU Control Antenna Curr.: 0.0A
Dec L N H Inc Auto-Tuning
R
[ ] [
] [ ]
Active
L
[ ] [
][ ]
Active
ATU is in LOCAL Mode
12:43:16 Power: 0W Site A Bypass12:43:16 Power: 0W Site A Bypass
Back
Auto-Tuning Status
(Active or Inhibited)
