Chapter 8: Installing Peripheral Options 8-25

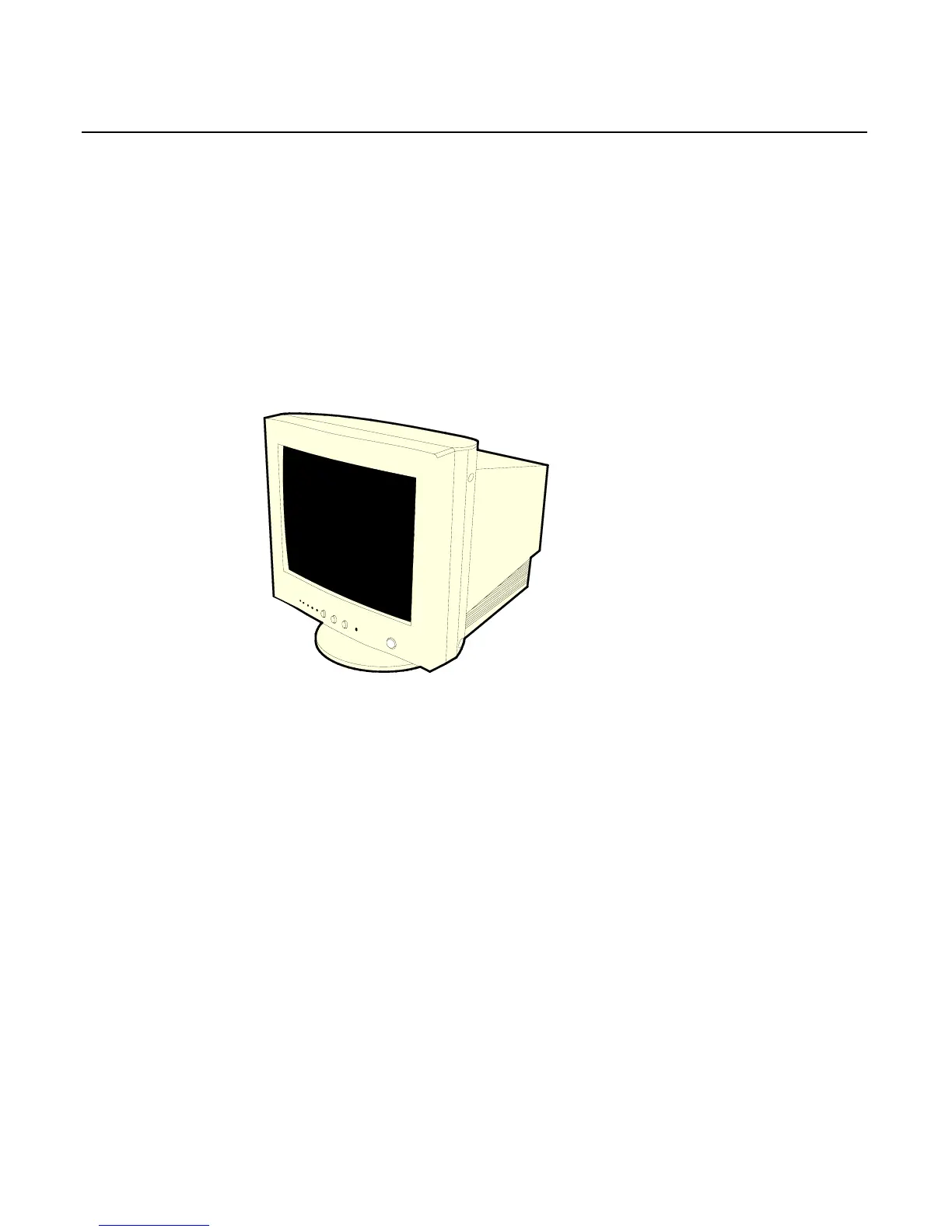

7452-K419 15-Inch Color CRT

The15‐InchCRTcanbeintegratedontheterminalorinstalledona

remotemount.

Note: The15‐InchdisplayistoolargefortheSwivelArm.For

integratedconfigurationsitisplacedontheLargePeripheralExtension

Deck,whichisincludedintheIntegrationTrayAccessoriesKit

(7402‐K310/K315).

19743
