167
6. Installation and Connections

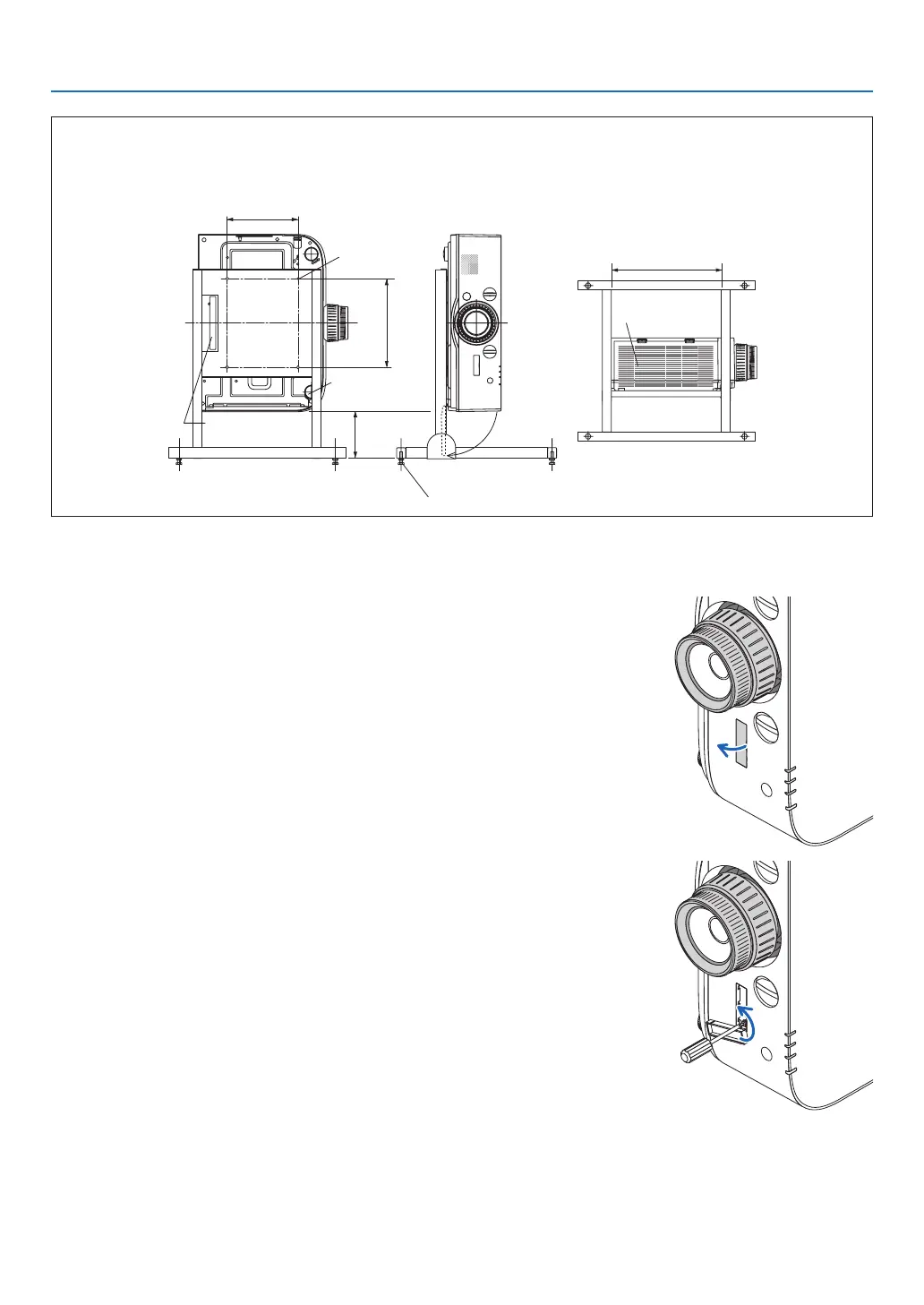

Reference drawings
* Thedrawingshowingthedimensionalrequirementsisnotanactualstanddesigndrawing.
[Side View] [Front View]
Screw holes for 4 -
M4 use
Tilt foot (remove)
130 or greater
200
Filter cover (when opened)
Horizontal adjuster
[Bottom View]
Filter cover
310 or greater
Rear foot
Lens shift securing method
1. Pull the securing lever cover towards you to remove it.
• Thecovercannotbedetachedfromtheprojector.
2. Turn the screws to the left to loosen them.
• Screwscannotberemoved.
To Next Page
