NEC PA721X User Manual

10
1. Introduction

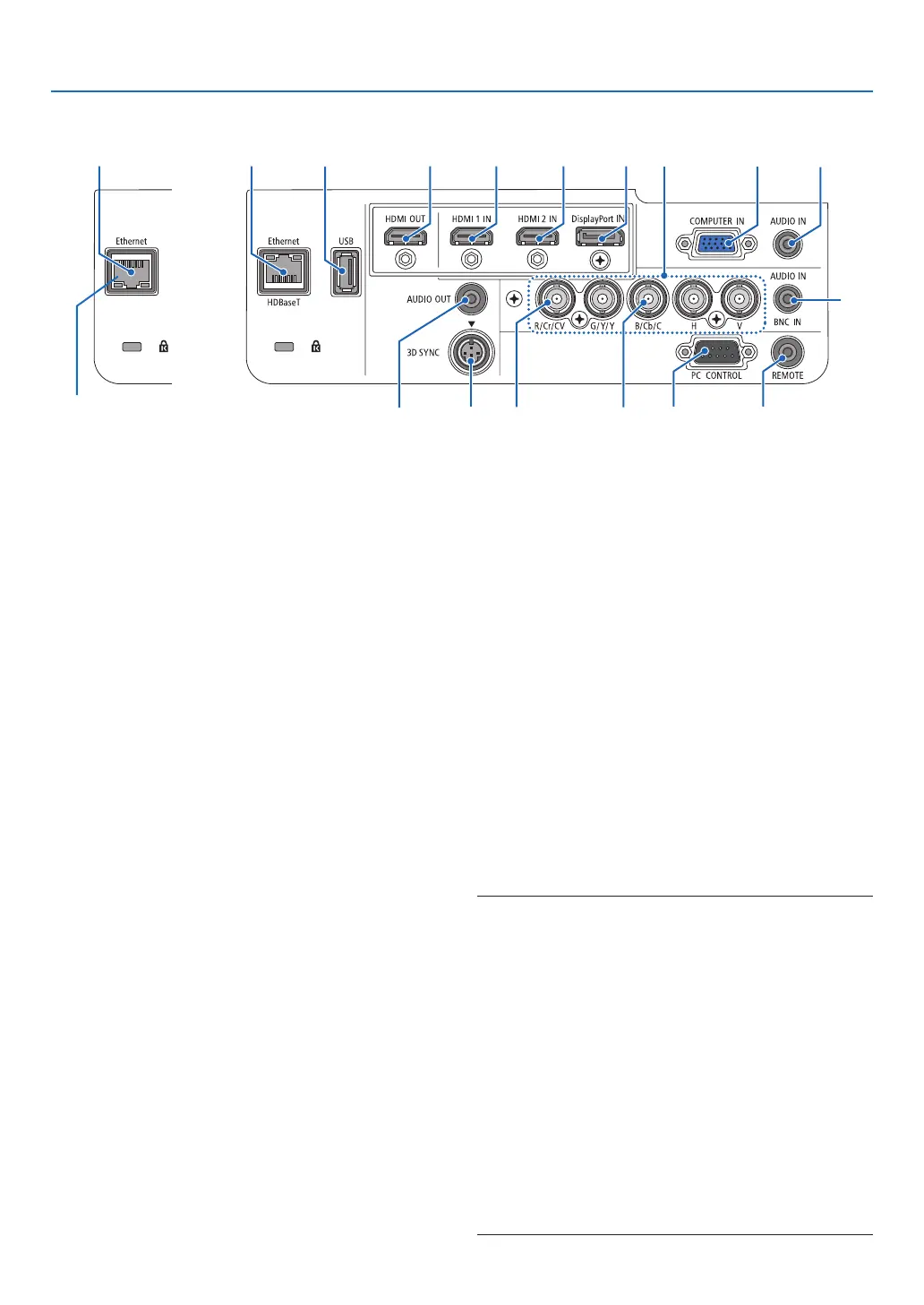

Terminals
2 3112
8
9
10
11
7
4
5 15 1613 14 6
10
1. HDMI1INConnector(TypeA)
(→page158,160,164)
2. HDMI2INConnector(TypeA)
(→page158,160,164)
3. DisplayPortINConnector
(→page158)
4. BNCIN[R/Cr/CV,G/Y/Y,B/Cb/C,H,V]Connec-
tors(BNC×5)
(→page157,162)
5. BNC(CV)InputConnector(BNC×1)
(→page162)
6. BNC(Y/C)InputConnector(BNC×2)
(→page162)
7. BNCAUDIOINMiniJack(StereoMini)
(→page160,162)
8. COMPUTERIN/ComponentInputConnector
(MiniD-Sub15Pin)
(→page157,163)
9. COMPUTERAUDIOINMiniJack(StereoMini)
(→page157,163)
10.Ethernet/HDBaseTPort(RJ-45)[HDBaseTMod-
els]
(→
page165,169)
 EthernetPort(RJ-45)[MMModels]
(→page169)
11.USB-APort(TypeA)
(→page225)
 (HDBaseT Models:For future expansion.This port
allowsforpowersupply.)
12.HDMIOUTConnector(TypeA)
(→page161)
13.AUDIOOUTMiniJack(StereoMini)
(→page161)
14.3DSYNCConnector(MiniDIN4Pin)
(→page41)
15.PCCONTROLPort(D-Sub9Pin)
(→page269)
 Use this port to connect a PC or control system.
Thisenablesyoutocontroltheprojectorusingserial
communicationprotocol.Ifyouarewritingyourown
program,typicalPCcontrolcodesareonpage275.
16.REMOTEConnector(StereoMini)
 Use this connector forwired remote control of the
projectorusingtheNECremotecontrolforPX750U/
PH1000U/PH1400Useries.
 Connect the projector and optional remote control
usingacommerciallyavailablewiredremotecontrol
cable.
NOTE:
• WhenaremotecontrolcableisconnectedtotheREMOTE
connector, infrared remote control operations cannot be
performed.
• Boththecompositevideosignalfromeachinputconnector
asthecomputer,BNC,andBNC(CV),andtheS-videosignal
fromtheBNC(Y/C)InputconnectorarenotoutputfromHDMI
OUTConnectorofthisprojector.
[HDBaseTModels]
• When [HDBaseT] is selected in the [REMOTE SENSOR]
andtheprojector isconnectedtoa commercially-available
transmissiondevicethatsupportsHDBaseT,remotecontrol
operationsininfra-redcannotbecarriedoutiftransmission
of remote control signals has been set up in the transmission
device.However,remotecontrolusinginfraredrayscanbe
carriedoutwhenthepowersupplyofthetransmissiondevice
is switched off.
* ConnectionTerminalof
MMModels
 Theorientationofthe
portisupsidedown.
* ConnectionTermi-
nalofHDBaseT
Models
