1. Introduction
❸ Part Names of the Projector

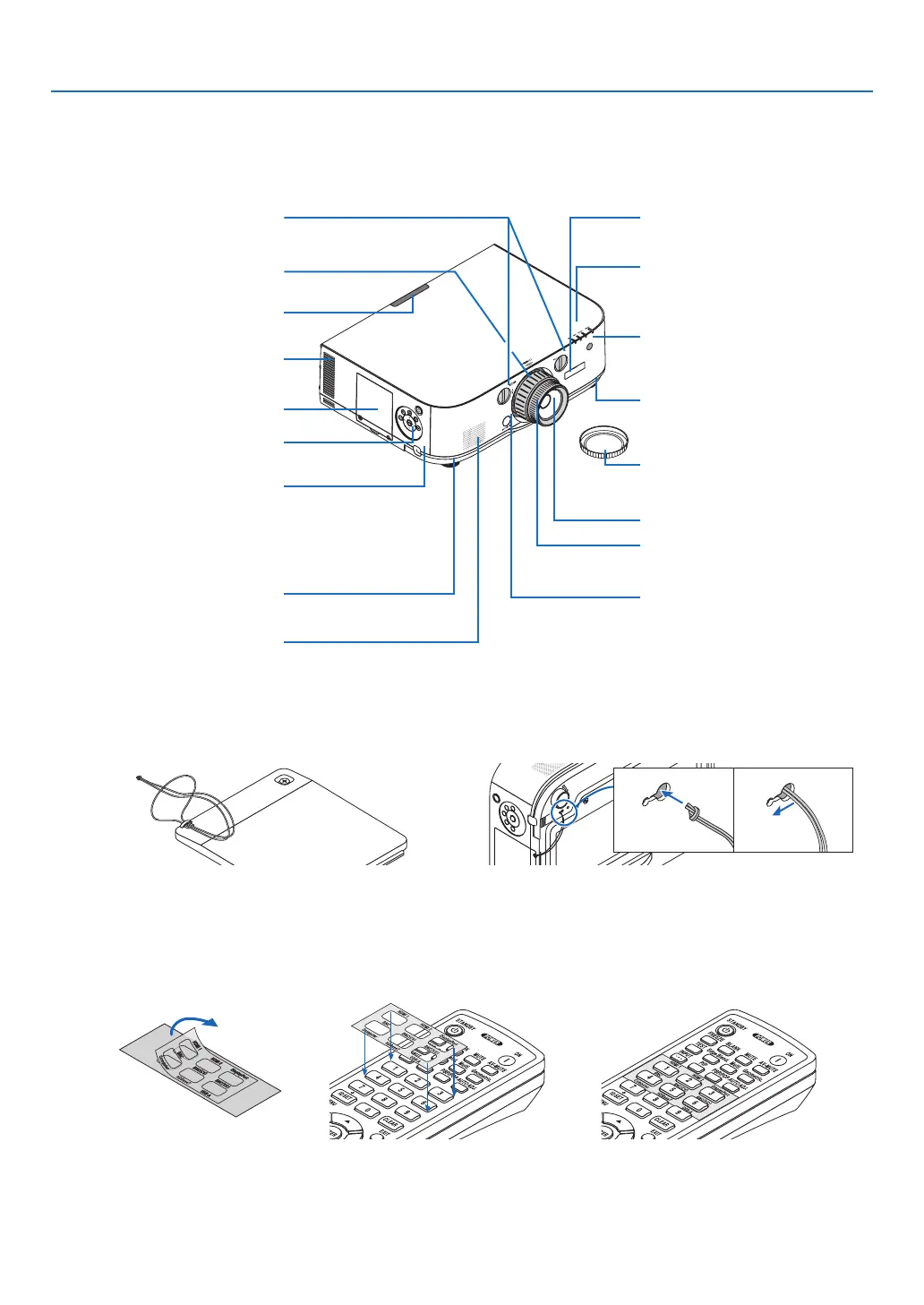

Front/Top
Thelensissoldseparately.ThedescriptionbelowisforwhentheNP13ZLlensismounted.
Controls
(→page9)
LensShiftDial(vertical/horizontal)
(→page21)
Lens
RemoteSensor(locatedonthe
frontandtherear)
(→page13)
RemoteSensor
(→page13)
ZoomLever/ZoomRing(→page
25)
LensCap
(Theoptionallensisshippedwith
thelenscap.)
FocusRing
(→page22)
AdjustableTiltFoot
(→page25)
IndicatorSection
(→page9)
Securinglevercover
(→page168)
LensReleaseButton
(→page156)
AdjustableTiltFoot
(→page25)
Exhaustvent
Heatedairisexhaustedfromhere.
Mounting the strap
1. Mount the strap to the filter cover and lamp cover as shown on the diagram below.
2. Insert the knot in the strap into the hole on the bottom of the projector and pull in the direction of the arrow
to fasten.
ab
Howtopastetheinputselectioncharacterstickeroftheremotecontrol
• PeeloffthecoverofthestickerandalignthestickerholeswithButtons1to6beforepasting.
• Pleasetakecarenottoletthestickercontactthebuttonswhenpasting.
• Theexplanationsandillustrationsinthismanualareprovidedwiththestickerpasted.
LampCover(→page178)
SecurityBar
Attachananti-theftdevice.
Thesecuritybaracceptssecurity
wiresorchainsupto0.18inch/4.6
mmindiameter.
MonauralSpeaker(10W)
