4.3 Overview Web Interface
4.3.1 General Lay Out

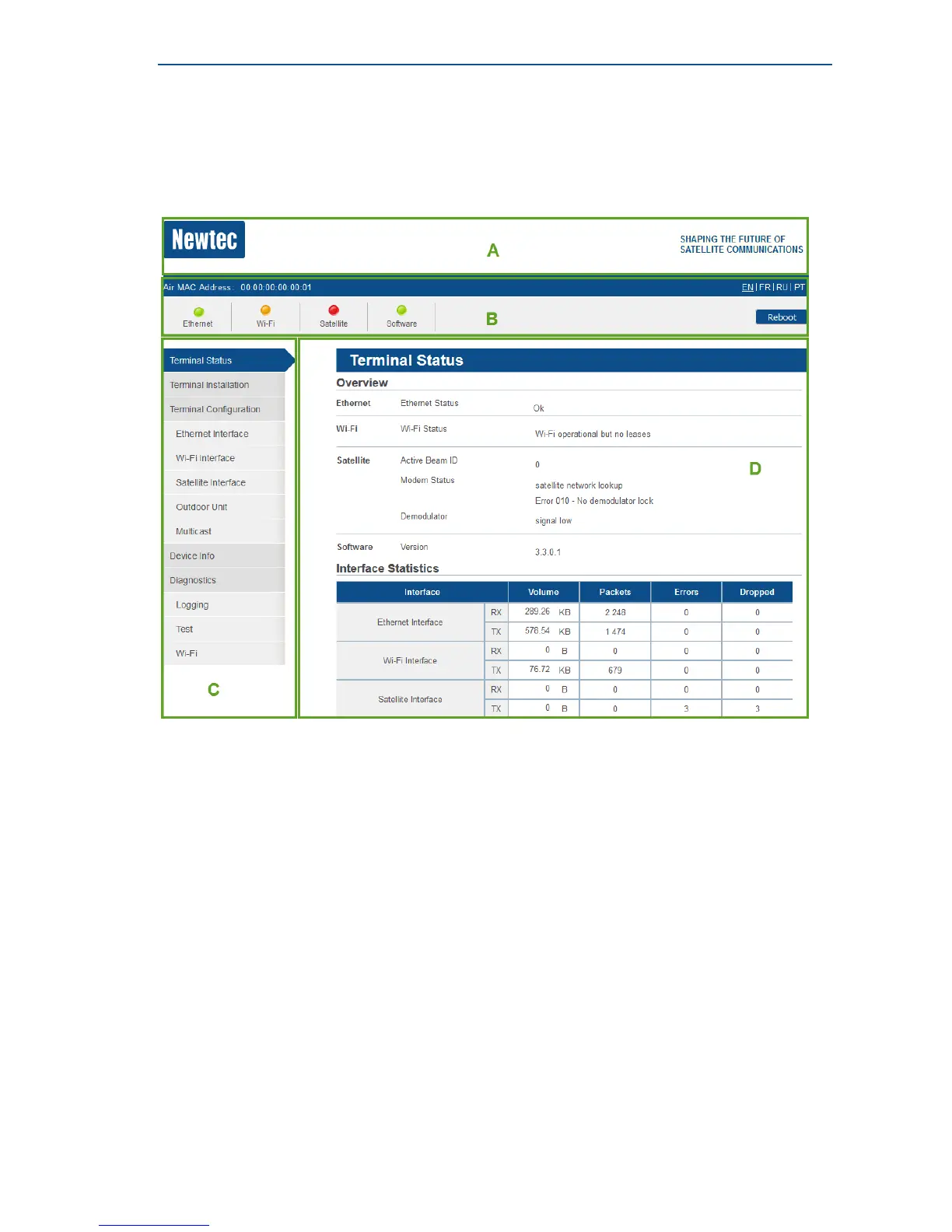

Each of the web interface pages contains the same elements.
• A - Banner:
The banner contains the Newtec logo, the Air MAC address and the languages in which the GUI
can be displayed.
• B - Status bar:
The status bar always shows the most important status LEDs.
This information will be specified in the body of the Status page.
• C - Menu structure:
On the left hand side of the page the site navigation is found.
Click an item to select it.
• D - Body:
The actual content of the web interface is shown in the body.
It always shows the page title and one or more content blocks or forms.
