Appendix C - ILB222X Polarization Switches
MDM2210
User Manual R4.1 v1.0
7 Appendix C - ILB222X Polarization Switches
The ILB2220 and ILB2221 supports both left-handed and right-handed circular polarization, in both
transmit and receive.
The polarization for receive and transmit can be set independently.
Use the mechanical switches on the back of the ILB2220/ILB2221 to change the polarization.

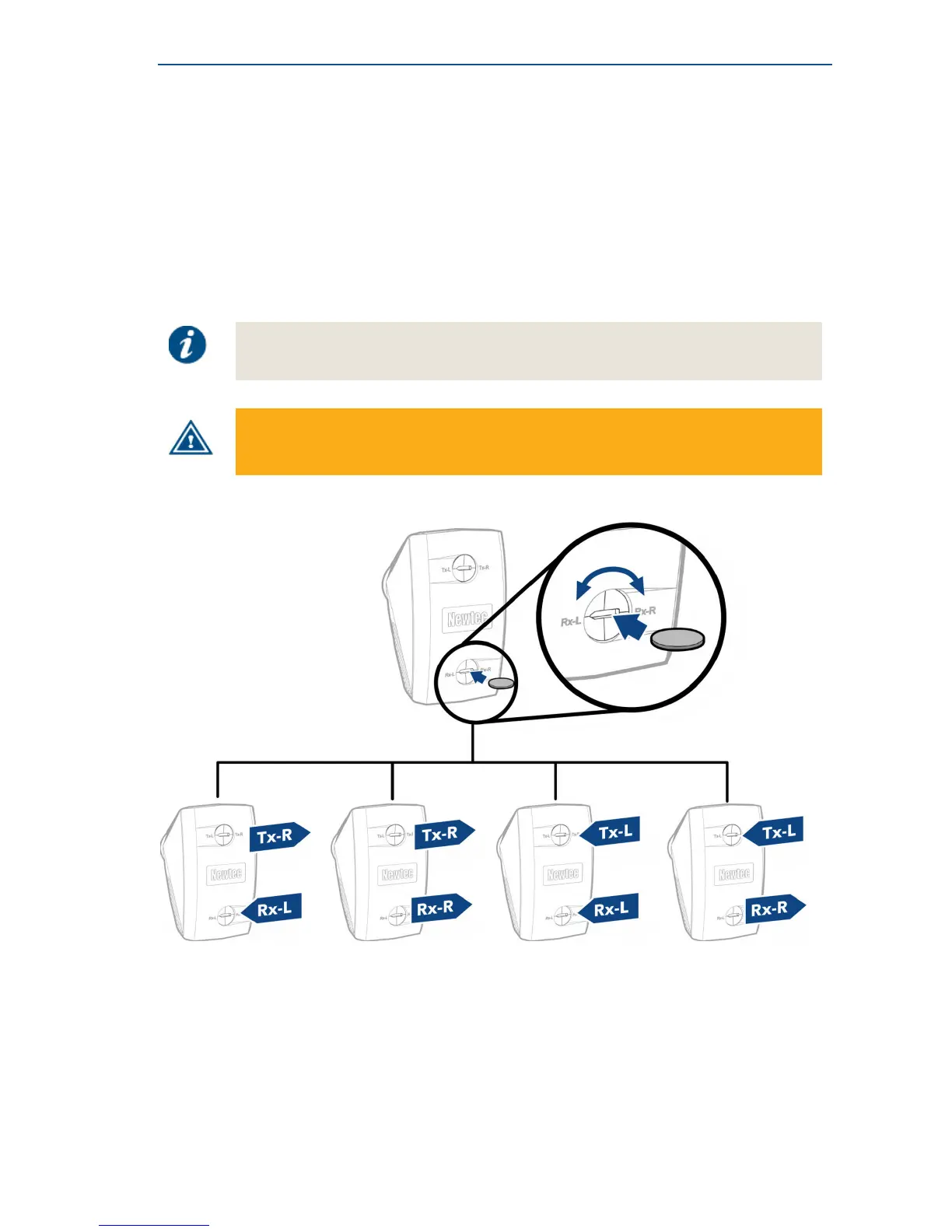

The following figure shows how to switch the polarization of the receive.
To know the correct polarizations, please consult the pointing information you
received from your service provider.
Use a coin to switch the polarization!
Using a screwdriver can damage the polarization switch!
