Appendix B - ILB2145 Polarization Switch
MDM2210
User Manual R4.1 v1.0

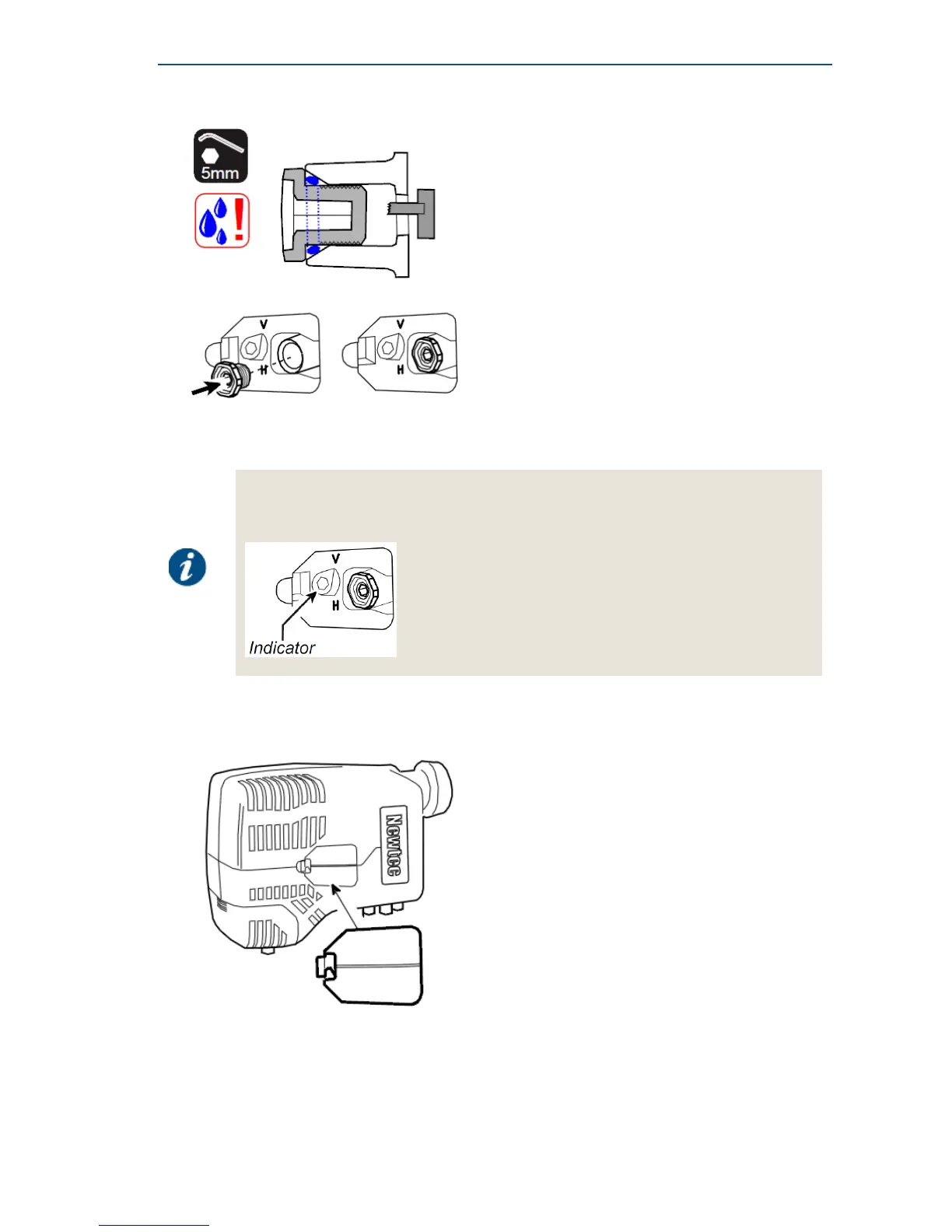

» Put the sealing plug back and tighten it enough to avoid moisture insertion.
Please note that the switch at the left of the sealing plug only serves as an indicator to
reflect the position of the internal polarization switch. It has no impact on the
polarization.
» Place the cover back.
