To use the Point&Play tool:
» Connect the TX interface on the modem to the Point&Play tool.
» Connect the earphone to the Point&Play tool. Make sure the Point&Play tool is still switched off.
» Switch on the Point&Play tool by slowly turning the volume wheel until the green LED illuminates.
Put on the earphone and adjust the volume if necessary.
Ensure that the volume of the Point&Play® tool is not set too loud, otherwise damage to
your hearing may occur.
When using the ILB2220 or ILB2221 as outdoor unit, the external Point&Play tool is
not used.

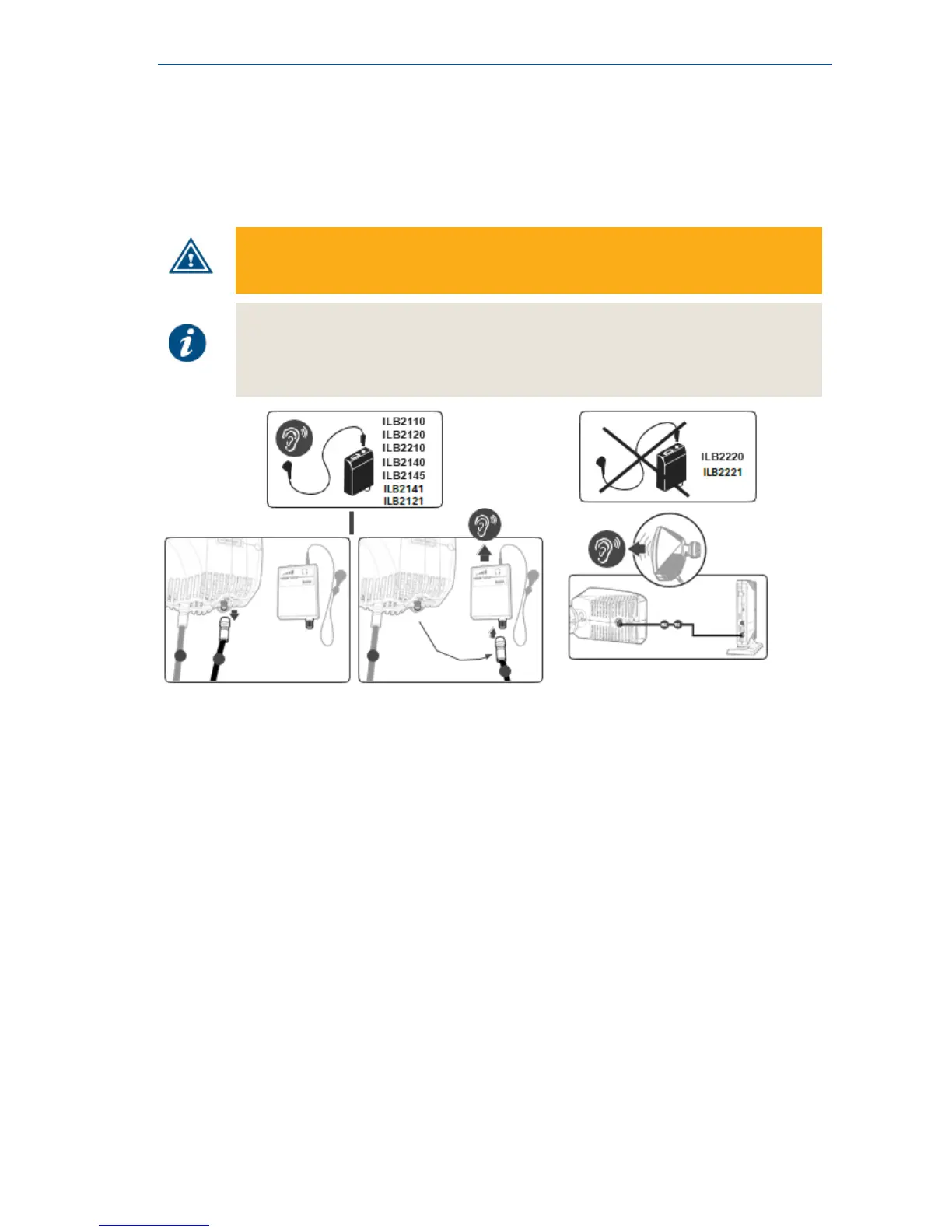

The Point&Play tool is incorporated into the ILB2220/ILB2221 as indicated in the
following figure.
• Start pointing the antenna until you hear the highest possible uninterrupted tone.
Please refer to the installation guide for more information.
