44/71
Modem Web Interface
MDM2210
User Manual R4.1 v1.0

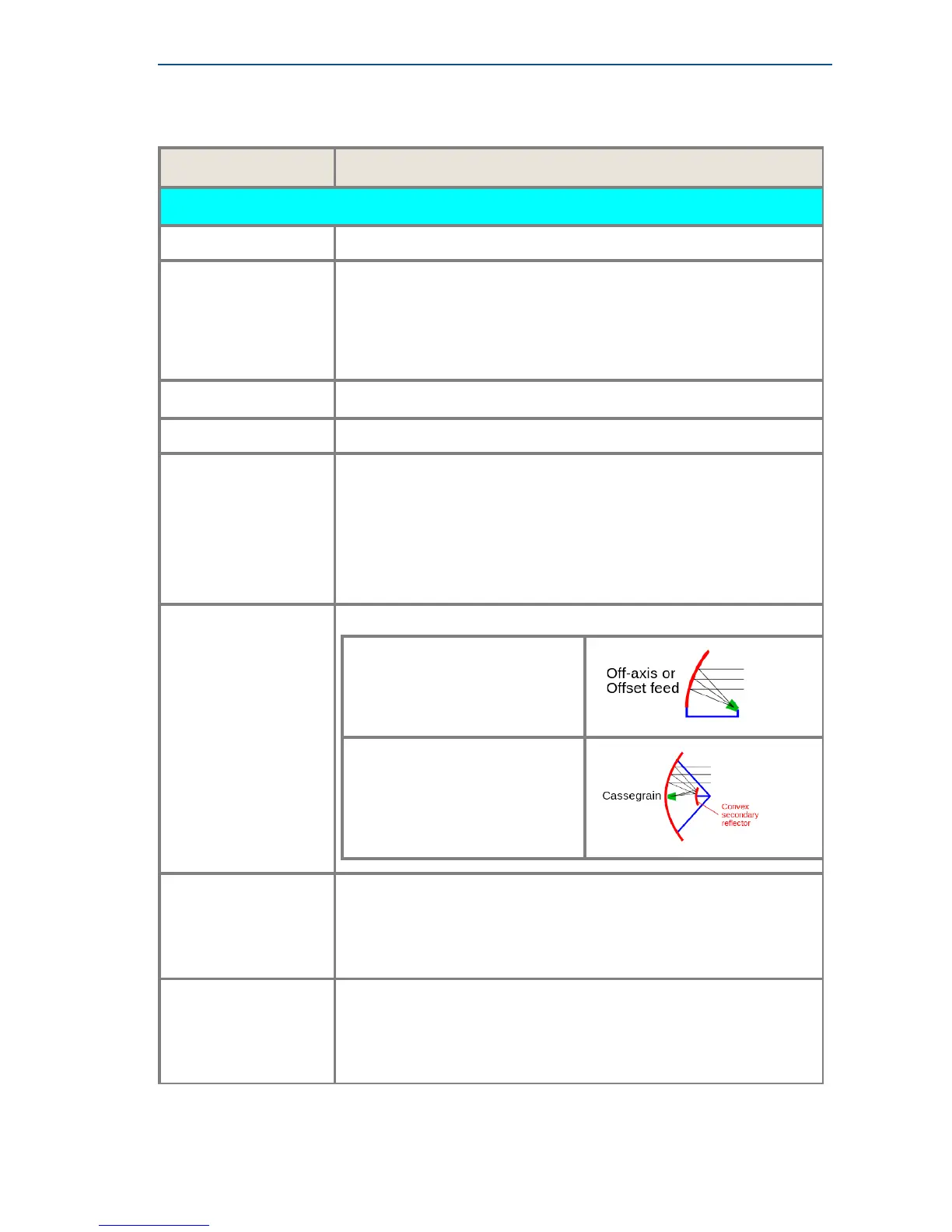

The displayed parameters and their descriptions are shown in the table below.
Parameter Description
ODU Type Configuration
Active ODU ID Indicates which outdoor unit is active at the moment.
ODU Type Id Select the ODU type you want to activate.
Positive integer used as unique identifier.
• Range 1-32 is reserved for Newtec ODU types.
• Range 33-64 is for user definable ODU types.
ODU Description String used as a description of the selected ODU type.
Power Off Timeout Not yet supported
Elevation Offset
(Used with P&P V2.0)
This is the delta between the antenna real elevation and the elevation
of the reference plane to which the smartphone will be placed for the
elevation measurement. This offset is different for different antenna
types.
For ANT2010 75 cm this is 72.5°.
This means that when the elevation is 17.5°, the reference plane is
17.5° + 72.5° = 90°, which is vertical.
Reflector Type
(Used with P&P V2.0)
We support the following 2 antenna types:
• Single-offset antennas
• Cassegrain antenna with a
subreflector
Linear Polarization
Indication
(Used with P&P V2.0)
This indicates the midrange value of the feed reading.
For the front end type ILB2220 (Ku) this is 90°, since the reading is
from 0 to 180°.
For other front end ILB types it is 0°, because the range is for example
from: -45° to +45°.
Positive Feed Reading
(Used with P&P V2.0)
This indicates if reading is clockwise or counterclockwise.
For the front end type ILB2120 (Ku) this is clockwise , since reading
clockwise is from 0° to 180°.
For some other front end types it is clockwise, because reading
clockwise is for example from: -45° to +45°.
