12 - FORM NO. 56043124 - Condor XL
™
Fastener Torque Specifi cations
Standard Torque Specifi cations (unless otherwise speci-
fi ed)
Size Plated Steel Stainless Steel
#10 42 in.-lb. 28 in.-lb.
1/4“ 100 in.-lb. 67 in.-lb.
5/16” 17 ft.-lb. 11 ft.-lb.
3/8” 31 ft.-lb. 20 ft.-lb.
1/2” 75 ft.-lb. 50 ft.-lb.
3/4” 270 ft.-lb. 180 ft.-lb.
M5 61 in.-lb. 36 in.-lb.
M6 9 ft.-lb. 62 in.-lb.
M8 22 ft.-lb. 13 ft.-lb.
M10 44 ft.-lb. 25 ft.-lb.
M12 70 ft.-lb. 40 ft.-lb.

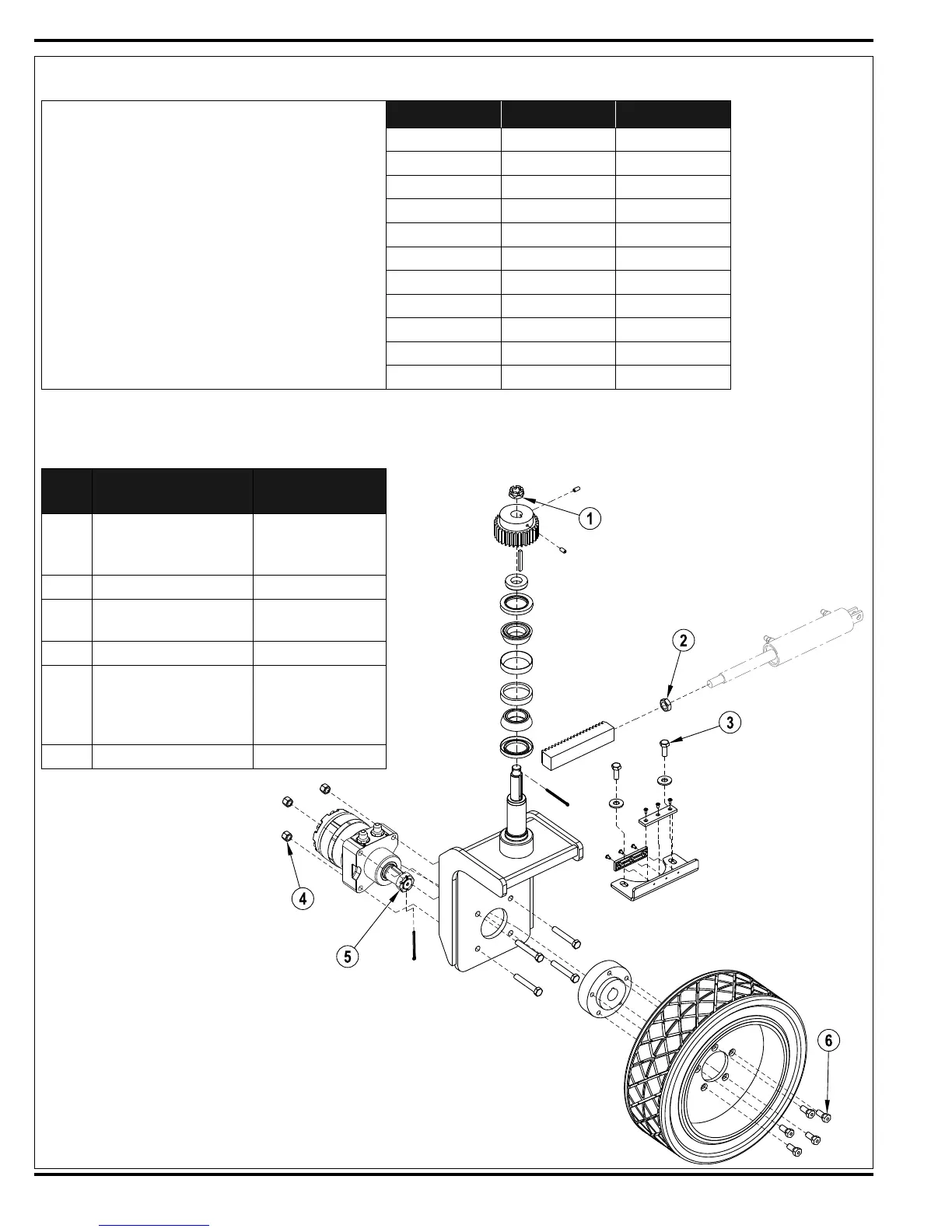

Drive Wheel System Torque Specifi cations
See Figure 5
Item
No.
Description
Torque
Specifi cation
1
Steering Castle (Spindle)
Nut
Torque to 40 ft.-lb.,
then loosen to align
cotter pin.
2 ¾”-16 Hex Jam Nut Torque to 150 ft.-lb.
3 ½”-20 x 1.25 Hex Screw
Use Loctite

242,
torque to 90 ft.-lb.
4 ½”-13 Nyloc Hex Nut Torque to 100 ft.-lb.
5
Drive Wheel Motor
Spindle Nut
Torque to 375 ft.-lb.
(lubed) or 475 ft.-lb.
(dry), then tighten to
align cross hole.
6 Wheel Studs Torque to 100 ft.-lb.
FIGURE 5
