58 - FORM NO. 56043124 - Condor XL
ELECTRICAL SYSTEM

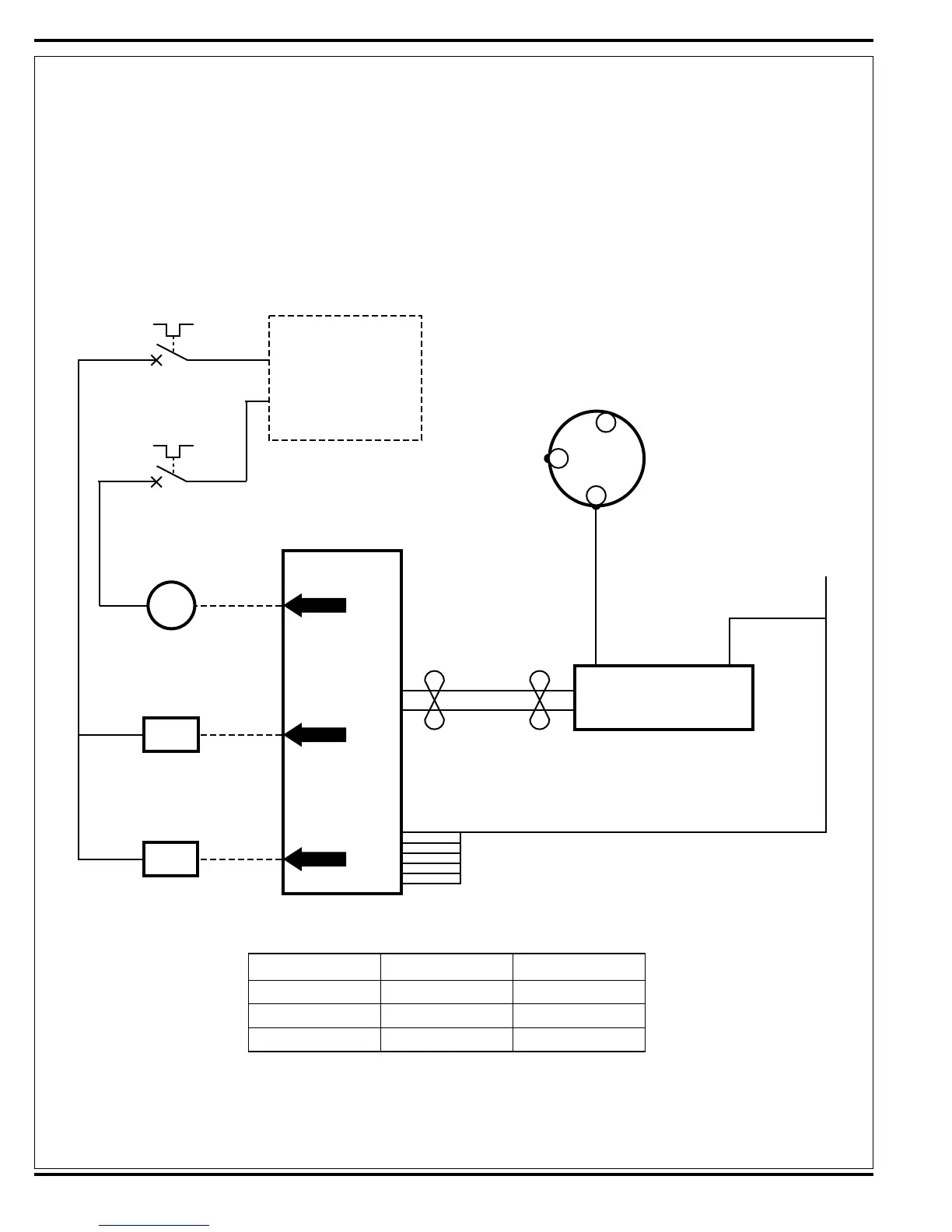

TROUBLESHOOTING GUIDE
MAIN and RIGHT SIDE SCRUB BRUSH SOLUTION VALVES and PUMP
Conditions;
• Key ON.
• Engine running
• Scrub System ON.
• Foot Pedal Activated (out of neutral in forward direction)
Component Current Amps Coil Ohms
L10 1.5 Amps 8 ohms
L11 1.0 Amps 12 ohms
M4* 11.5 Amps @ FLA -
*FLA = Full Load Amps
L10
B-
B+ from
K1 Power Relay
B- OUTPUT
TOUCH PAD
DASHBOARD PANEL
CB4
20A
ORN
L11
B+
CB5
10A
GRN/BRN
B-
RED/VIO
RED/VIO
DRIVER BOX
PIN J3-2
M4
MAIN SOLUTION
PUMP
GRN/BLU
MAIN SOLUTION
VALVE
RIGHT SIDE
SOLUTION VALVE
PIN J2-22
PIN J2-10
YEL/GRN
BLU/YEL
B- OUTPUT
B- OUTPUT
S1
KEY SWITCH
B1
12VDC
12VDC
