FORM NO. 56043124 - Condor XL
™
- 69
Protective Cap
Communication Port
TIER II
ENGINE SYSTEM
ENGINE DIAGNOSTICS
Accessing Engine Diagnostic Information Using the Con-
troller Interface Kit and a PC
The Controller Interface Kit (p/n 56305647 shown on page 9) al-
lows you to connect a laptop PC to the engine to view the
various engine parameters, confi guration settings and error
codes, and displays the engine software and hardware infor-
mation. Note that this is the preferred way to view the engine
diagnostic information. To use the Controller Interface Kit:
1 Install the software from the provided CD onto your PC.
2 Connect the USB connector on the kit cable to a USB port in your PC.

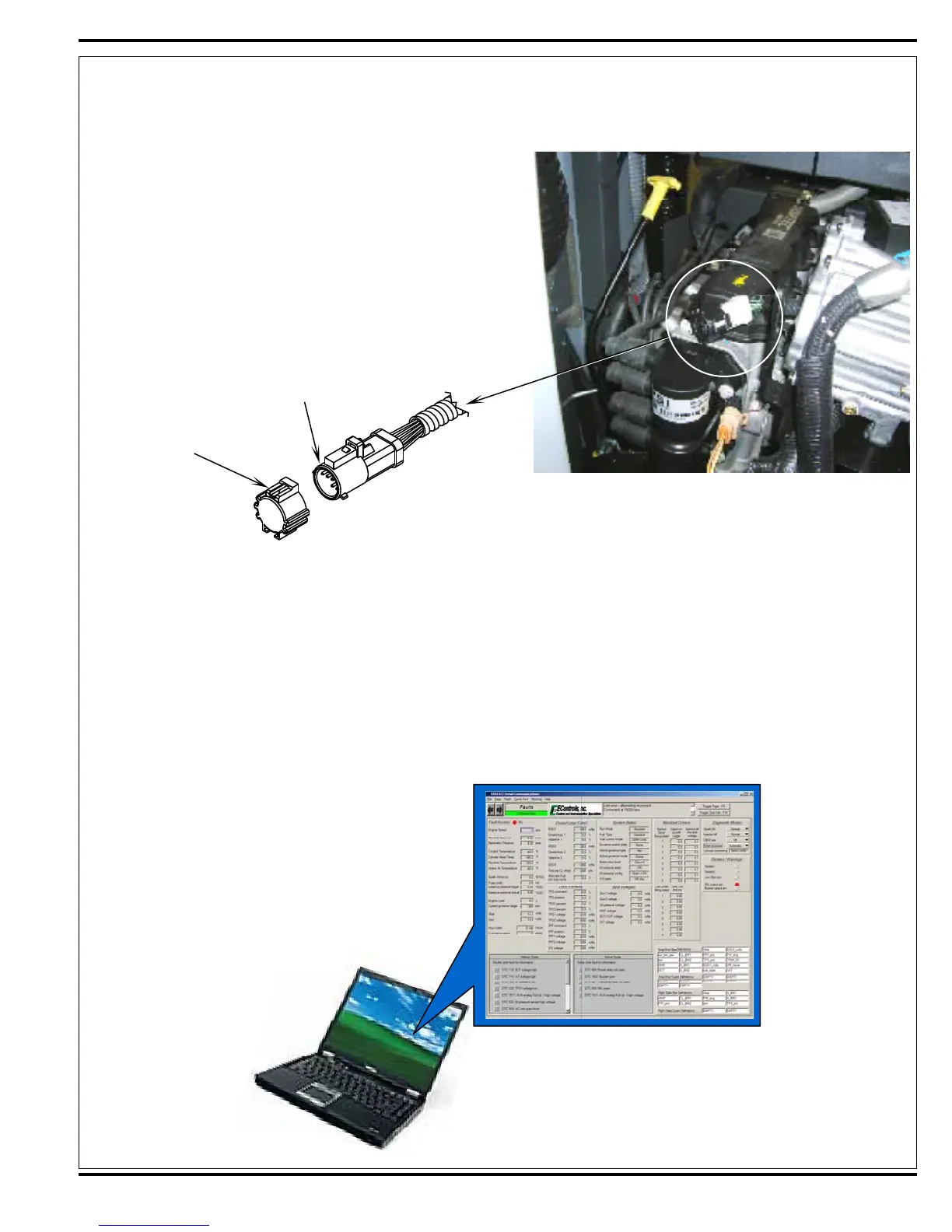

3 See Figure 13. Remove the Protective Cap, then connect the kit cable to the Communication Port on the engine.
Note: The minimum system requirements for the software in the Controller Interface Kit are as follows:
Windows XP, 2000 or 98SE (Second Edition) operating system
Minimum processor speed – Pentium II 450 MHz
Minimum RAM requirements:
Windows XP – 256 MB
Windows 2000 – 128 MB
Windows 98SE – 128 MB
At least one available RS232 serial or USB port. Note that the USB driver does not support Windows 98 SE.
FIGURE 13
