92 - FORM NO. 56043124 - Condor XL
Item Description
1 Solution Tank
2 Solution Flow Control Valve
3 Solution Filter
4 Main Solution Pump (M4)
5 Main Solution Valve (L10)
7 Solution Tank Drain Hose
16 Extended Scrub Pump (M6)
17 Solution Coupler Quick Disconnect
18 Strainer
19 Float Switch
20 Float Wiring Quick Disconnect
21 Recovery Tank
B = Location for the Right Front Scrub Tee if equipped.
D = Location for the AXP Tee if equipped.

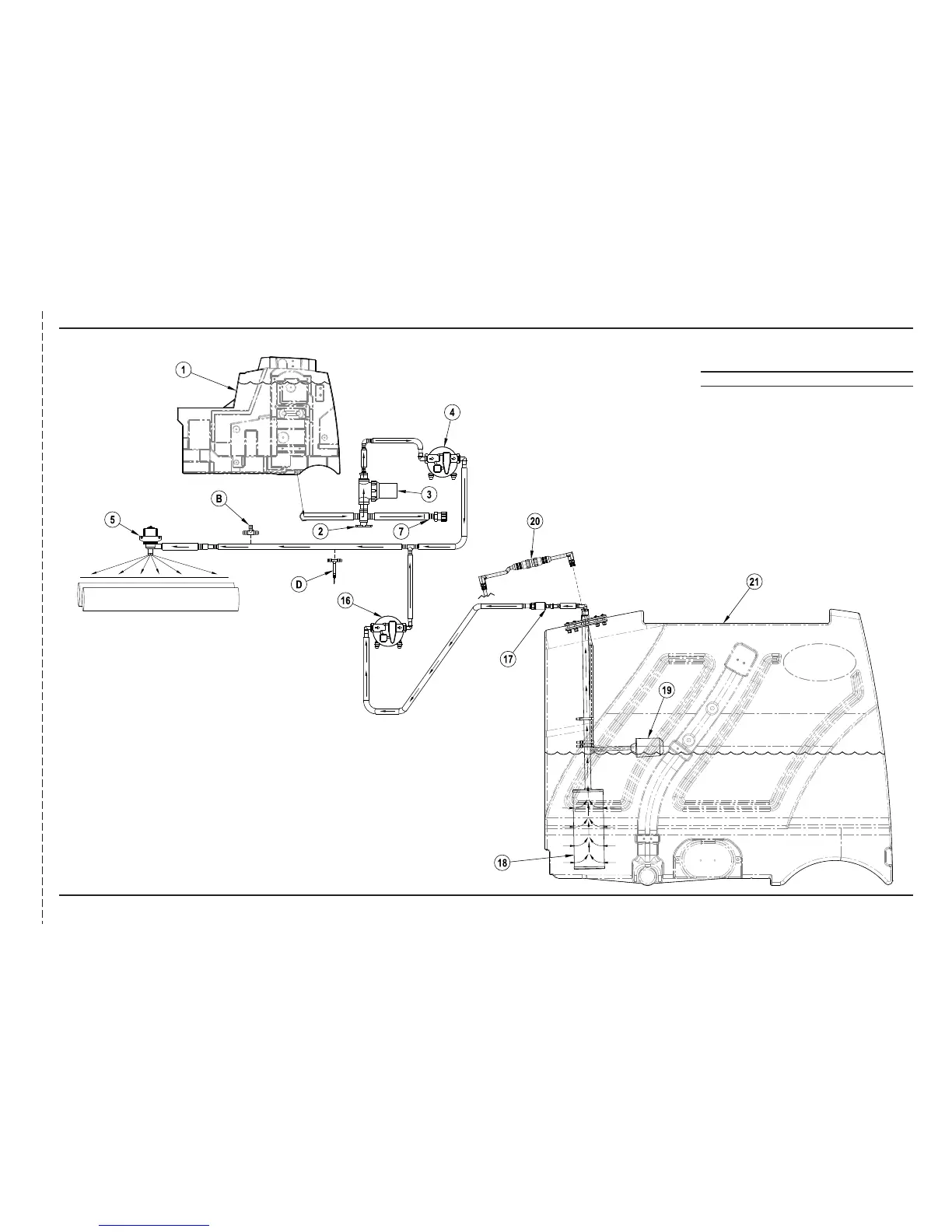

SOLUTION FLOW DIAGRAM - EXTENDED SCRUB
