FORM NO. 56043124 - Condor XL
- 55

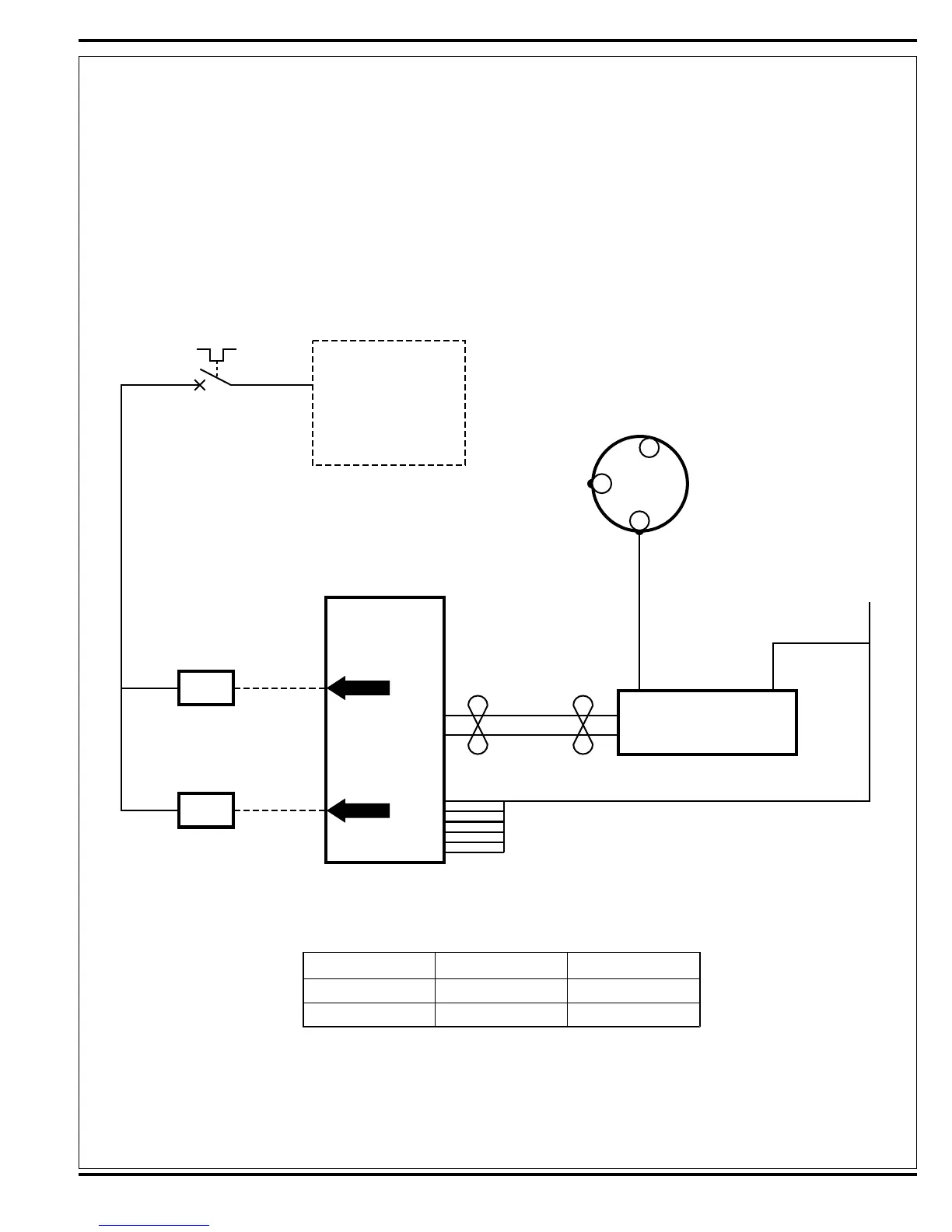

ELECTRICAL SYSTEM
TROUBLESHOOTING GUIDE
MAIN SCRUB and SIDE SWEEP/SCRUB ON
Conditions;
• Key ON.
• Engine running.
• Scrub ON mode selected.
• Foot pedal activated (out of neutral).
Component Current Amps Coil Ohms
L4 1.5 Amps 8 ohms
L8 1.5 Amps 8 ohms
12VDC
12VDC
PIN J2-7
L4
B-
B+ from
K1 Power Relay
B- OUTPUT
TOUCH PAD
DASHBOARD PANEL
CB4
20A
BLK/WHT
ORN
PIN J2-2
B- OUTPUT
L8
SIDE SWEEP/
RIGHT SCRUB
ORN/BLU
B+ B-
DRIVER BOX
MAIN SCRUB
BRUSH
S1
KEY SWITCH
B1
