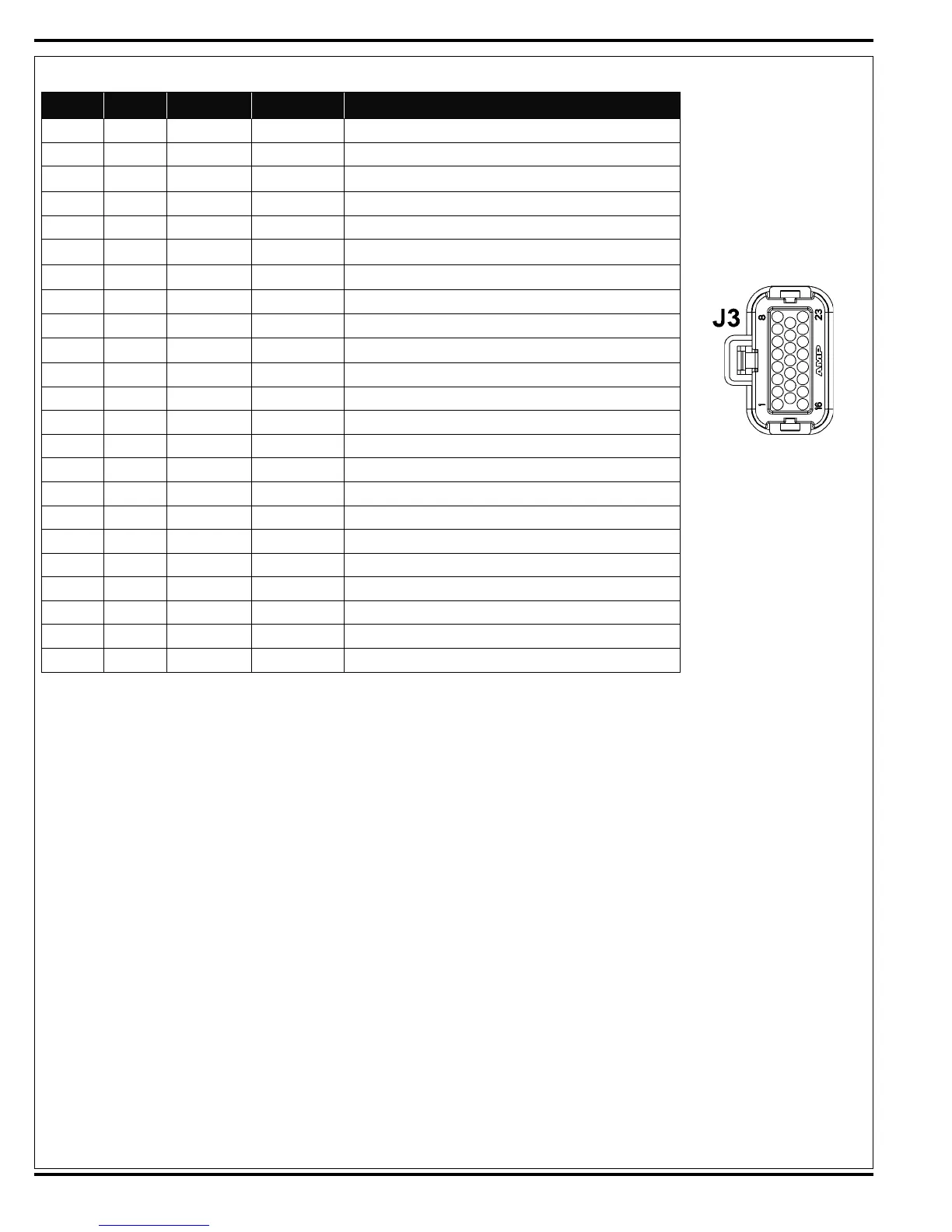

Condor XL J3 Main Control Board Connectors
Pin# Wire# Color Type Goes to
J3-1 16-2 GRA/RED + input CB1 Circuit Breaker, 20A
J3-2 16-1 GRN/BLU - output M4 solution pump
J3-3 Open
J3-4 16-1 BLU/BRN output M7 side broom actuator extend (red wire)
J3-5 16-1 WHT/RED output M7 side broom actuator retract (black wire)
J3-6 Open
J3-7 16-1 GRA/VIO M7 side broom actuator common (white wire)
J3-8 16-6 BRN + output LP2 left and right headlights and taillights
J3-9 16-1 GRA/RED + input CB1 Circuit Breaker, 20A
J3-10 Open
J3-11 16-4 BLK - input X49 control box ground
J3-12 16-5 BLK - input X49 control box ground
J3-13 16-6 BLK - input X49 control box ground
J3-14 16-3 BLU + input CB2 Circuit Breaker, 20A
J3-15 16-2 BLU + input CB2 Circuit Breaker, 20A
J3-16 18-1 VIO + input CB3 Circuit Breaker, 15A
J3-17 18-1 WHT/YEL + output horn
J3-18 16-1 YEL/BLK - output M5 mist pump
J3-19 18-1 BLK/RED - output M11 chemical pump 2 (AXP)
J3-20 18-1 BLK/YEL + output M11 chemical pump 2 (AXP)
J3-21 18-1 RED/BLU - output M10 chemical pump 1 (AXP)
J3-22 18-1 RED/WHT + output M10 chemical pump 1 (AXP)
J3-23 16-1 BLU/RED - output M8 wand pump
