22 - FORM NO. 56043124 - Condor XL
™

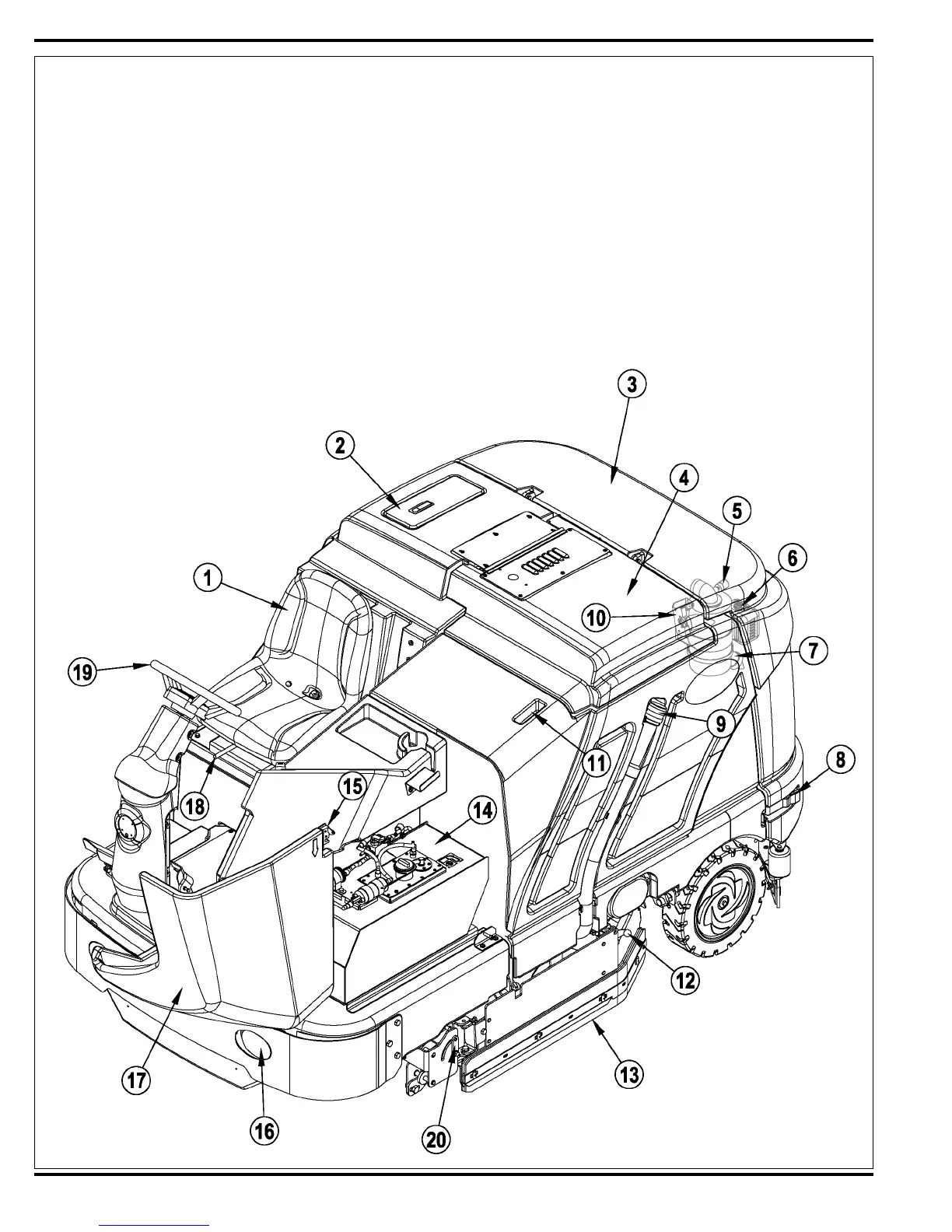

KNOW YOUR MACHINE
As you read this manual you will occasionally run across a bold number in parentheses; for example: (2). These numbers refer to items on the next
four pages. Refer to these pages whenever necessary to locate an item mentioned in the text.
1 Operator’s Seat
2 Solution Tank Fill Cover
3 Engine Cover
4 Recovery Tank Cover
5 Engine Air Filter Service Indicator
6 Coolant Overfl ow Tank
7 Engine Air Filter
8 Engine Cover Latch
9 Recovery Tank Drain Hose
10 Recovery Tank Tilt Out Latch
11 Recovery Tank Tilt Out Grip
12 Left Side Skirt Latch
13 Left Side Skirt
14 Fuel Tank (petrol tank shown)
15 Fuel Tank Cover Latch
16 Headlight
17 Fuel Tank Cover
18 Operator Seat Adjustment Lever
19 Steering Wheel
20 Double Scrub Skirt Holder
To Next Page
