56 - FORM NO. 56043124 - Condor XL
™
ELECTRICAL SYSTEM
TROUBLESHOOTING GUIDE

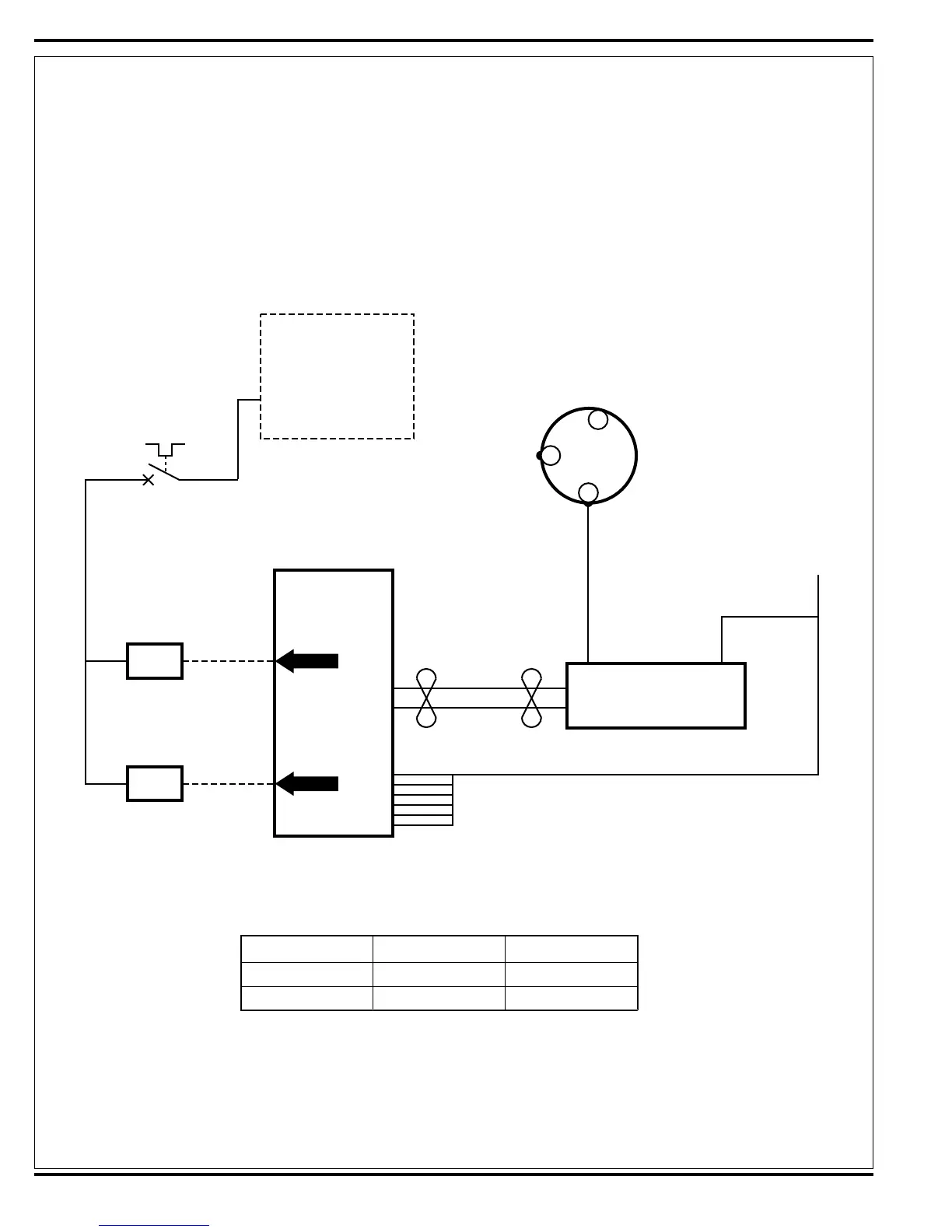

VACUUM FAN ON and SQUEEGEE DOWN
Conditions;
• Key ON
• Engine running
• Scrub On Mode selected or vacuum switch selected
• Foot Pedal activated (out of neutral)
Component Current Amps Coil Ohms
L1 1.5 Amps 8 ohms
L2 1.5 Amps 8 ohms
PIN J2-5
L2
SQUEEGEE
DOWN
B-
B+ from
K1 Power Relay
B- OUTPUT
TOUCH PAD
DASHBOARD PANEL
BRN/YEL
PIN J2-8
B- OUTPUT
L1
VACUUM FAN
SOLENOID
RED/GRA
B+
CB5
10A
GRN/BRN
B-
DRIVER BOX
S1
KEY SWITCH
B1
12VDC
12VDC
