INTRODUCTION
Service Manual Purpose
This manual is a technical resource that Nilfi sk-Advance expects to be utilized when servicing a Condor XL. It contains information deemed neces-
sary to provide basic troubleshooting, maintenance and repairs within a reasonable timeframe (example - 2-3 hours). If your repair involves multiple
visits to repair the same problem, or the repair cannot be completed within 3-4 hours, a call to Nilfi sk-Advance Technical Support is needed to alert
the factory to potential issues and/or provide the customer with an acceptable level of service. Refer to the website
www.advance-us.com for ad-
ditional information not contained herein as well updates or expanded instructions to procedures noted here.
Note: Bold numbers in parentheses in text indicate an illustrated item.
Note: All references to right, left, front and rear in this manual are as seen from the operator’s position (seat).
General Machine Description
The Condor XL machines are industrial automatic rider sweeper/scrubbers with multiple sweep/scrub single pass coverages. All models use dual
cylindrical scrub brooms with variable scrub pressure and solution fl ow rates. Different models are available with front mounted side brooms (single
and dual) and right side disc scrub.
Parts and Service
Repair should be performed by an Authorized Nilfi sk-Advance Service Center that employs factory-trained service personnel and maintains an
inventory of Nilfi sk-Advance original replacement parts and accessories.
Nameplate

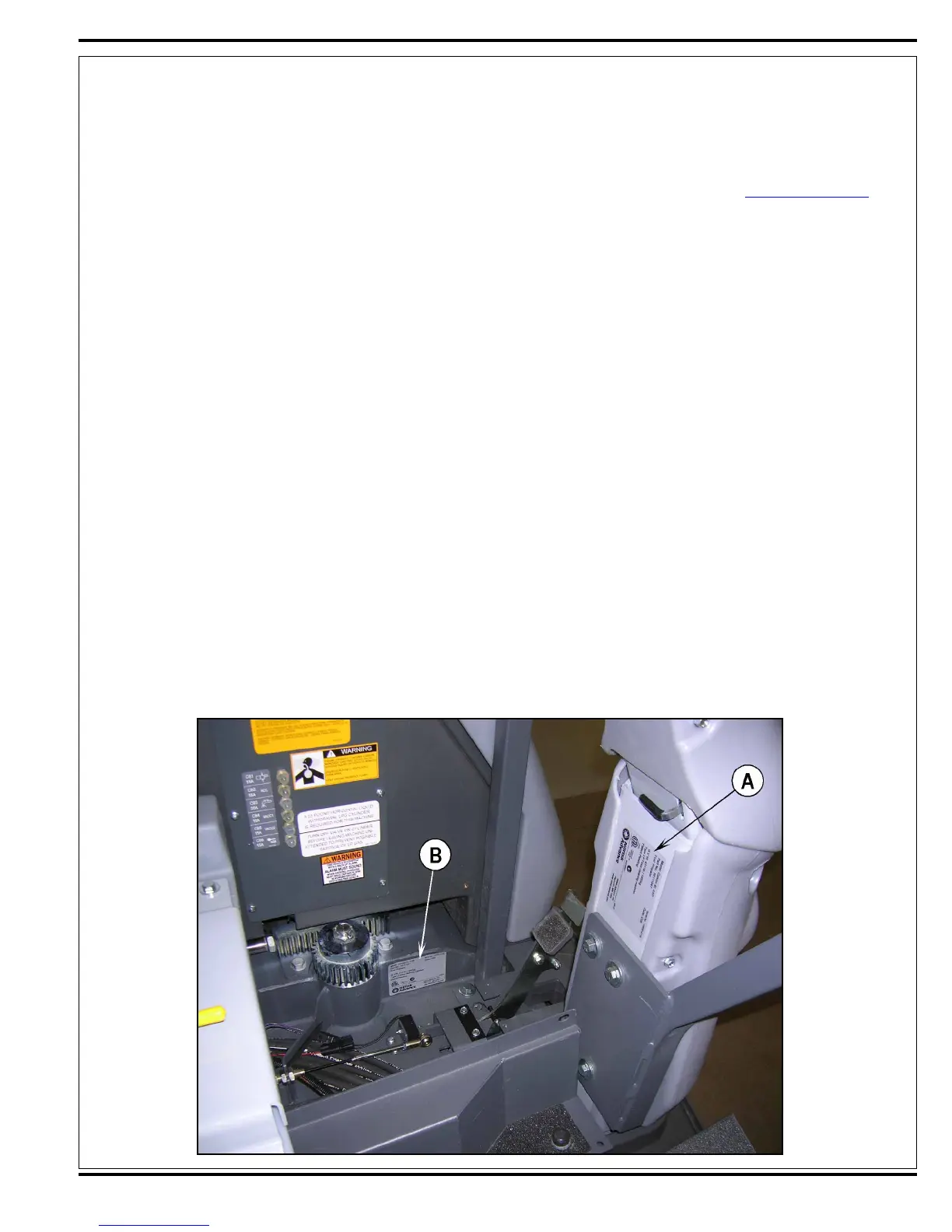

See Figure 1. The Model Number and Serial Number of the machine are shown on the nameplate (A) located on the steering column support, and
on a second nameplate (B) beneath the fl oor plate attached to steering spindle support.
MODEL NUMBER ________________________________________________
SERIAL NUMBER ________________________________________________
This information is required when ordering repair parts for the machine or contacting Nilfi sk-Advance Technical Support.
FIGURE 1
