FORM NO. 56043124 - Condor XL
™
- 73
HYDRAULIC SYSTEM

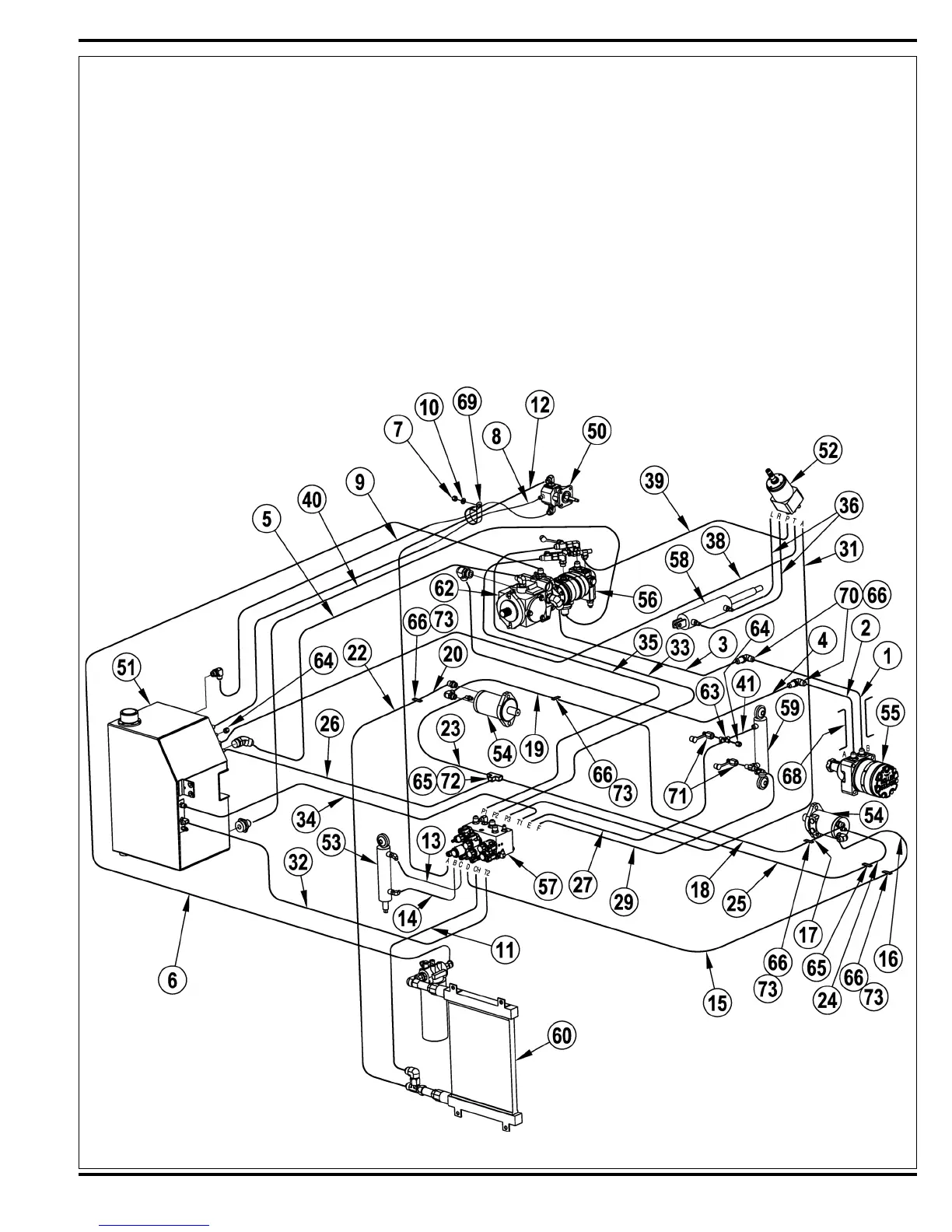

HYDRAULIC SYSTEM COMPONENTS
Item Description
50 Fan Motor Assembly
51 Res
ervoir Ass’y
52 Steering Pump Ass’y
53 Squeegee Cylinder Ass’y
54 Hydraulic Motor Ass’y
55 Drive Motor Ass’y
56 Pump Assembly, Low Speed
57 Valve Block Ass’y
58 Cylinder Assembly, Steer
59 Scrub Lift Cyl. Ass’y
60 Oil Cooler Ass’y
Item Description
62 Pump Assembly
63 Union Cross
64 End Cap, Flare Tube
65 Locknut, Bulkhead
66 Locknut, Bulkhead
68 Sleeve, Nylon
69 Clamp, P
70 Elbow, 90 Bulkhead Union
71 Nipple, Test
72 TEE, BULKHEAD RUN
To Next Page
