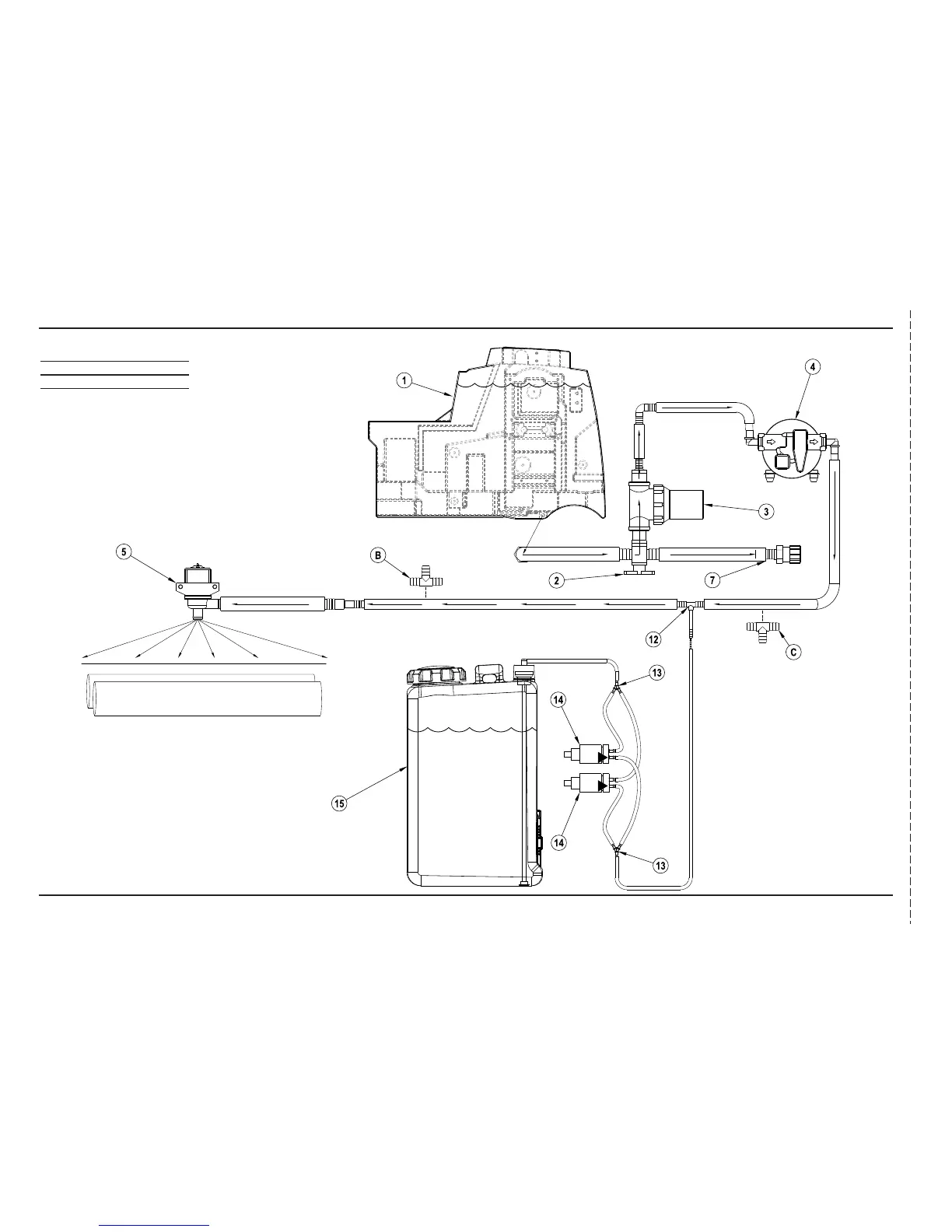

Nilfisk-Advance Condor XL - Solution Flow Diagram - Axp

FORM NO. 56043124 - Condor XL - 91
Item Description
1 Solution Tank
2 Solution Flow Control Valve
3 Solution Filter
4 Main Solution Pump (M4)
5 Main Solution Valve (L10)
7 Solution Tank Drain Hose
12 Reducer Tee
13 Y Barb Fitting
14 Detergent Pumps (M10 & M11)
15 Detergent Tank
B = Location for the Right Front Scrub Tee if equipped.
C = Location for the Extended Scrub Tee if equipped.
APPENDIX
SOLUTION FLOW DIAGRAM - AXP
