The calibration has to be repeated for each GSM band.
Steps
1. Connect the GSM connector of the module jig to a signal generator.
2. Start

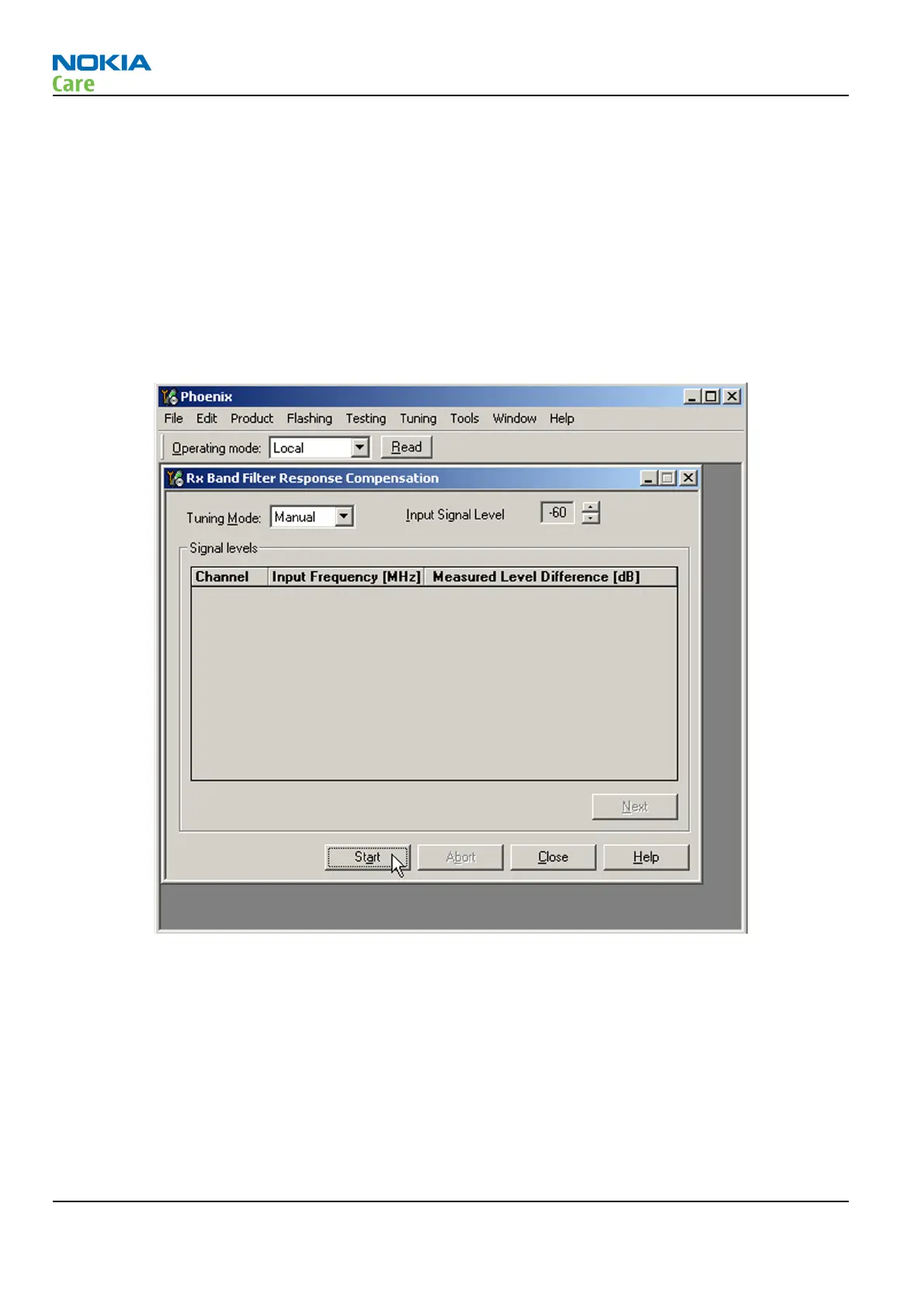

Phoenix
service software.
3. From the Operating mode drop-down menu, set mode to Local.
4. Select GSM900 band.
5. Choose Tuning→GSM→Rx Band Filter Response Compensation .
6. Select Tuning mode: manual
7. Click Start.
