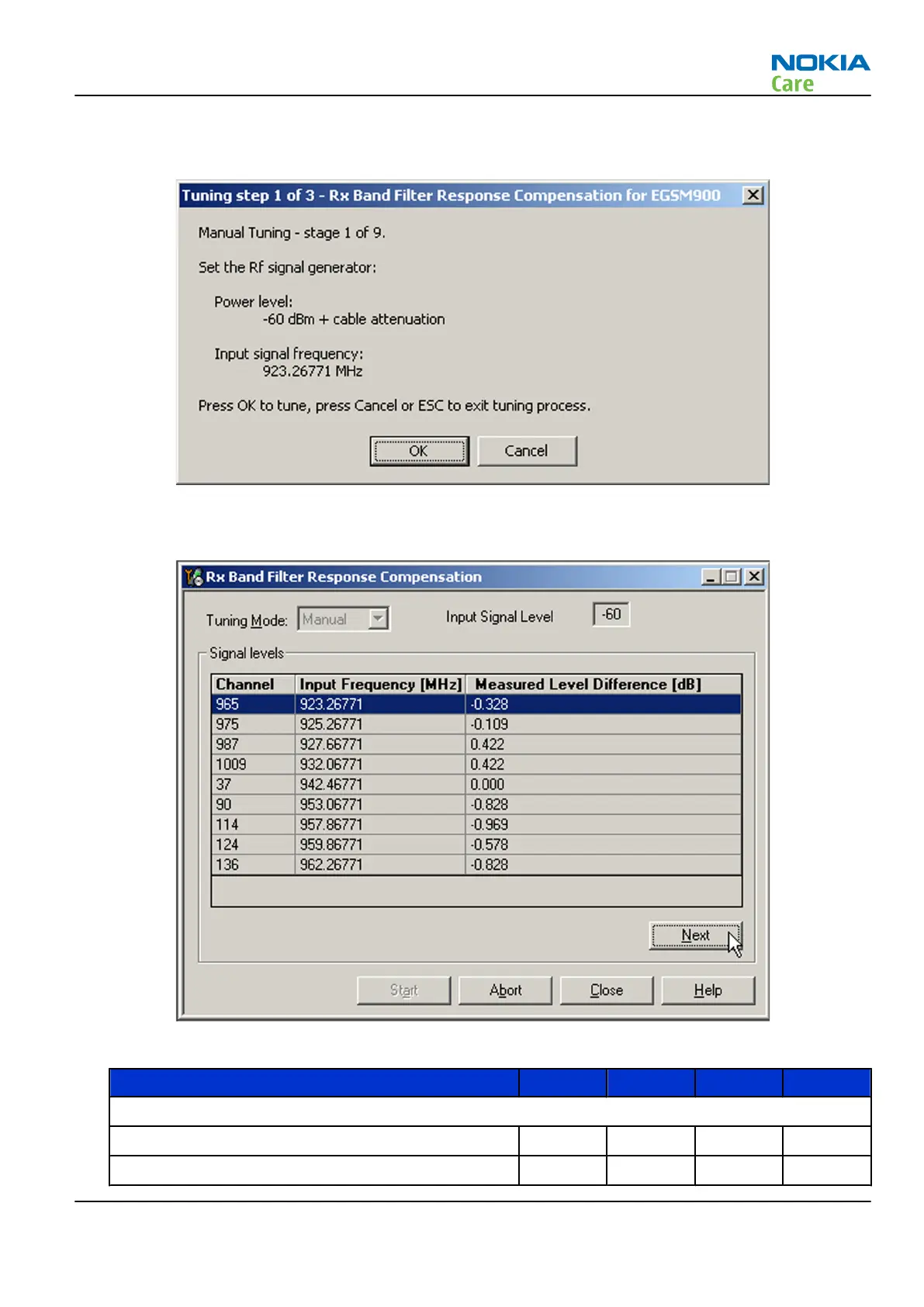

8. Connect the signal generator to the phone, and set frequency and amplitude as instructed in the
Rx Band
Filter Response Compensation for EGSM900
pop-up window, step 1-3.
9. To perform tuning, click OK.
10. Go through all 9 frequencies. The following table will be shown:
11. Check that the tuning values are within the limits specified in the following table:
Min Typ Max Unit
GSM850
Ch. 118/867.26771 MHz -6 -1 2 dB
Ch. 128/869.26771 MHz -3 0 2 dB
RM-356
RF troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 4 –37
Copyright © 2008 Nokia. All rights reserved.
