Graphing multilink trunk statistics 63

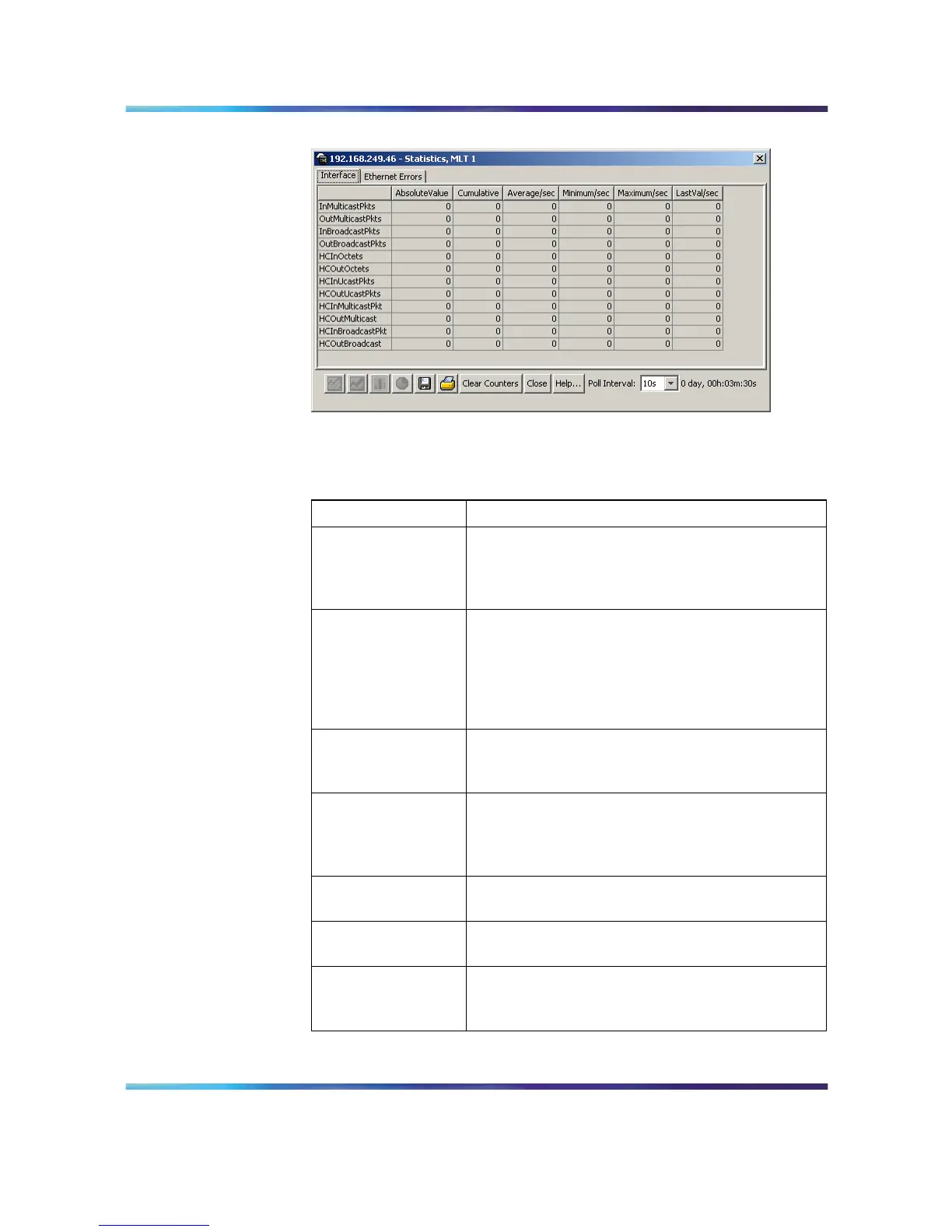

MLT Statistics screen - Interface tab
The following table describes the fields on this tab.
Interface tab fields
Field Description
InMulticastPkt The number of packets delivered to this MLT that
were addressed to a multicast address at this
sublayer. For a MAC layer protocol, this number
includes both Group and Functional addresses.
OutMulticast The total number of packets that higher-level
protocols requested be transmitted, and that were
addressed to a multicast address at this MLT,
including those that were discarded or not sent.
For a MAC layer protocol, this number includes
both Group and Functional addresses.
InBroadcastPkt The number of packets delivered to this MLT that
were addressed to a broadcast address at this
sublayer.
OutBroadcast The total number of packets that higher-level
protocols requested be transmitted, and that were
addressed to a broadcast address at this MLT,
including those that were discarded or not sent.
HCInOctets The total number of octets received on the MLT
interface, including framing characters.
HCOutOctets The total number of octets transmitted out of the
MLT interface, including framing characters.
HCInUcastPkts The number of packets delivered by this MLT to
higher level protocols that were not addressed to a
multicast or broadcast address at this sublayer.
Nortel Ethernet Routing Switch 5500 Series
Configuration - System Monitor ing
NN47200-505 03.01 Standard
5.1 27 August 2007
Copyright © 2005 - 2007, Nortel Networks
.
