Accessories and Options
1. Product Description
AFP-100/AFP-100E Instruction PN 51010:C1 02/06/2002
15

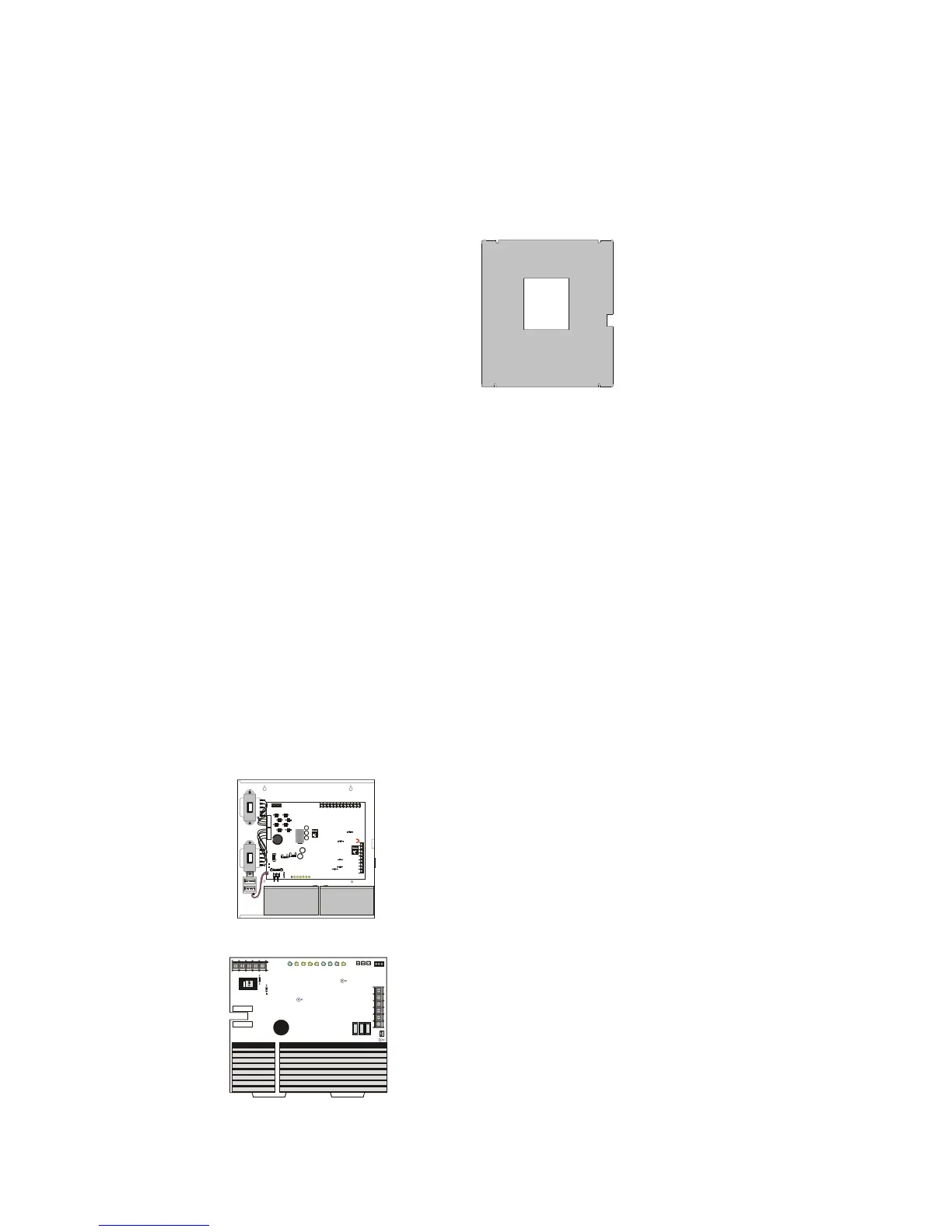

Accessories and Options
Dress Panel
A blue Dress Panel DP-1-BC is available as an option. The dress panel restricts access to the system
wiring while allowing access to the membrane panel.
Note: Required for Canadian installations, and included with the Basic Equiptment package for Canada.
Transformers
An optional XRM-24 (XRM-24E for 220/240 VAC applications) 100 VA transformer is available to
provide maximum accessory power (6.6 amps total).
Batteries and Battery Boxes
The control panel uses only sealed lead-acid batteries for standby power. The cabinet provides space for
two 12 AH batteries. Batteries must be ordered separately.
The BB-17 battery box may be used to house two 18 AH batteries. The battery box mounts directly
below the AFP-100 cabinet. The BB-55 battery box may be used to house two 25 AH batteries, two 55
AH batteries or one 100 AH battery. Both boxes are gray and provided with knockouts.
For 25 to 120 AH batteries, use the CHG-120 Battery Charger. When this charger is mounted in the
BB-55, two 25 AH or one 55 AH battery may also be housed in the battery box.
Chargers and Power Supplies
Field Charger/Power Supply - FCPS-24
A compact, cost-effective remote power supply and battery charger. It
consists of a filtered, 24 VDC output that can drive up to four
Notification Appliance Circuits (NACs).
For information and installation instructions refer to FCPS-24 Field
Charger/Power Supply manual.
Battery Charger - CHG-120
Designed to charge 25 to 120 AH lead-acid batteries that provide
emergency standby power for a Fire Alarm Control Panel. Provides
two (2) output circuits for connection to multiple loads. Can be
mounted into a BB-55 Battery Box.
For information and installation instructions refer to CHG-120 Battery
Charger manual.
dp9200.cdr
++ + + + + + + +
++ ++
++
+ + + + + +
+ +
TB2
P3
TB1
TB3
TB4
1
2
3
4
5
6
7
8
9
30
1.0
2520
.8
15
.6
10
.4
5
.2
0
0
D.C. VOLTS
D.C. AMPERES
FCPS-24assy.cdr
TB2
JP4 JP5 JP6
F3 F2 F1
SW1
R100
R104
JP8
JP9
JP3
JP7
TB3
TB1
CHG120pc.cdr
